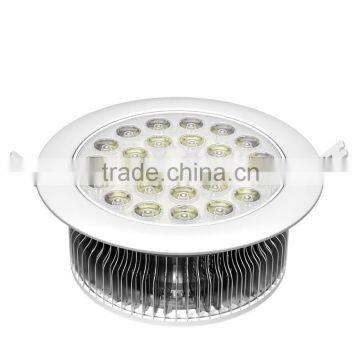

Recessed Spotlighting 24W Flush Mount LED Ceiling Light

US$ 25 - 28 MOQ: 36 Pieces

Key Specifications

LED Light Source:

Cree XPG / 1LA5

Warranty(Years):

5years

Input Voltage(V):

AC85-265V

Shenzhen Peaking Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Yantian Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source Cree XPG / 1LA5

Warranty(Years) 5years

Input Voltage(V) AC85-265V

Lamp Power(W) 24

Lamp Luminous Flux(lm) 2400lm

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Pure White

Working Temperature(℃) -40, 55

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating Other, IP50

Certification CE, EMC, FCC, LVD

Model Number TH24

Place of Origin Guangdong, China

Brand Name OEM

Ultrathin fin cooler, snap-fit construction, adjustable 20° installation angle, white baking finish on panel

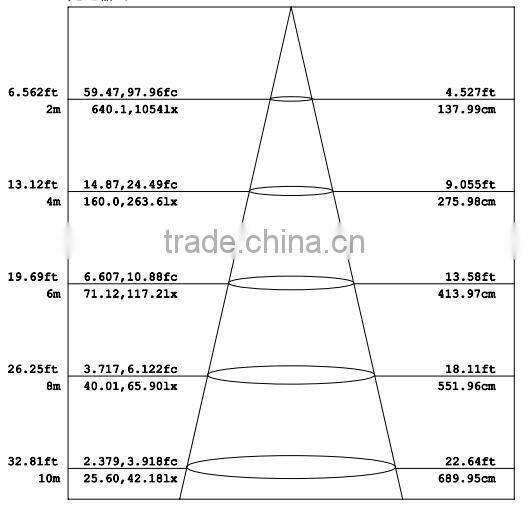

Beam angle 15°/25°/35°/60° selectable to meet various indoor spotlighting needs
Cree XPG or Epistar-chip iLA5 LEDs and high-quality external isolated constant current LED driver
Applicatioins in interior decorations and lightings in home, office, shop, hotel, etc.

TH24 – Recessed Spotlighting 24W Flush Mount LED Ceiling Light
Input	Universal input 85~265Vac, 50Hz/60Hz, PF>0.95
Wattage	24W
Flux	2,400lm, typical
Optical efficacy	100 lm/W
Correlated color temperature (CCT)	3000K/4000K/6000K
Color rendering index (CRI)	70/80
Driver	Constant current LED driver
Housing	Snap-fit fins
Heatsink	Ultrathin fins 0.4x64pcs, heat radiating area 2930cm²
LED array	Cree XPG / 1LA5, x24pcs
Temperature	-40ºC ~ +55ºC (operation)
Temperature	-25ºC ~ +65ºC (storage)
Humidity	Up to 99% RH
IP rating	IP33
Certifications	CE, RoHS, FCC
Lifespan	>50,000H
warranty	5 years
Installation	Ceiling recessed with torsion springs, adjustable 20° direction
Net weight	700kg
Dimensions	Ø190x78mm
Cutout	Ø160mm
Packaging size/weight	Packing box 20.520.510.4cm, x36pcs Carton 646446.5cm, gross weight 35kg
Price	USD 25.00 / piece, MOQ 36pcs
Note: The above data are typical specifications for information only. Detailed and specific parameters of each product are subject to the sales order or contract. Related datasheets and test reports are provided upon request.
