Flush Mount Spotlighting 21W LED Recessed Ceiling Light

FOB Price

USD $24 - $26 / Piece

36 Pieces(Min.Order)

Product Details

LED Light Source:	Cree XPG / 1LA5	Warranty(Years):	5years	Input Voltage(V):	AC85-265V
Lamp Power(W):	21	Lamp Luminous Flux(lm):	2100lm	Lamp Luminous Efficiency(lm/w):	100
Color Temperature(CCT):	Pure White	Working Temperature(℃):	-40, 55	Working Lifetime(Hour):	50000
Lamp Body Material:	Aluminum	IP Rating:	Other, IP50	Certification:	CE, EMC, FCC, LVD
Model Number:	TH21	Place of Origin:	Guangdong, China	Brand Name:	OEM

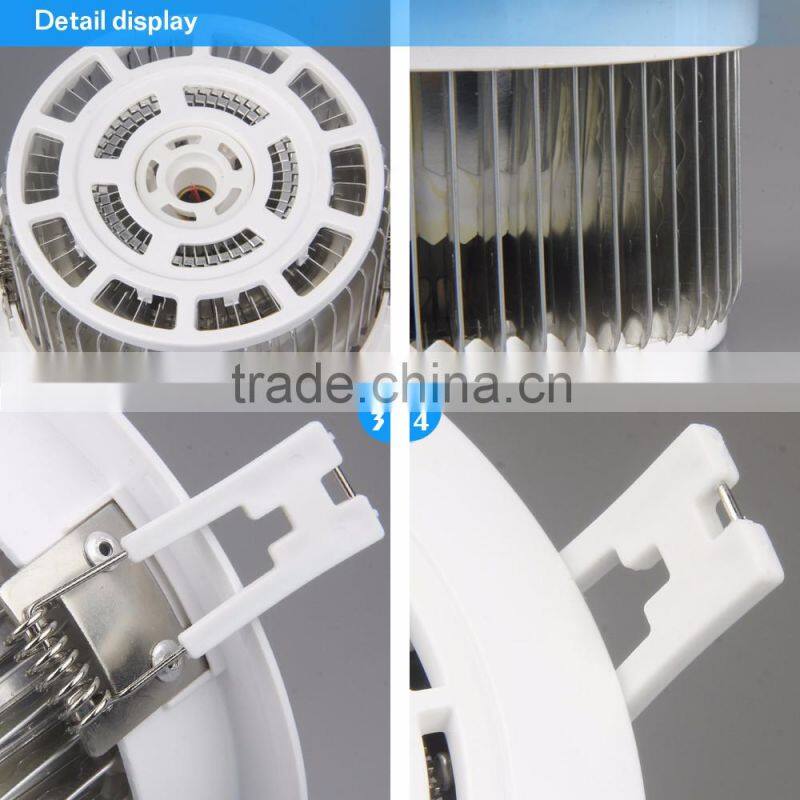

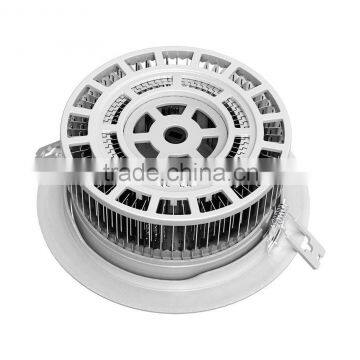

Ultrathin fin cooler, snap-fit construction, adjustable 20° installation angle, white baking finish on panel
Beam angle 15°/25°/35°/60° selectable to meet various indoor spotlighting needs
Cree XPG or Epistar-chip iLA5 LEDs and high-quality external isolated constant current LED driver
Applicatioins in interior decorations and lightings in home, office, shop, hotel, etc.

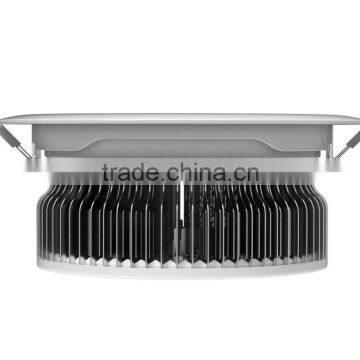

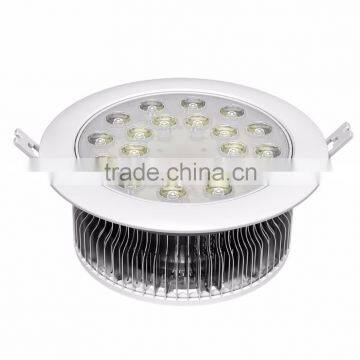

TH21 – Recessed Spotlighting 21W Flush Mount LED Ceiling Light
Input	Universal input 85~265Vac, 50Hz/60Hz, PF>0.95
Wattage	21W
Flux	2,100lm, typical
Optical efficacy	100 lm/W
Correlated color temperature (CCT)	3000K/4000K/6000K
Color rendering index (CRI)	70/80
Driver	Constant current LED driver
Housing	Snap-fit fins
Heatsink	Ultrathin fins 0.4x64pcs, heat radiating area 2930cm²
LED array	Cree XPG / 1LA5, x21pcs
Temperature	-40ºC ~ +55ºC (operation)
Temperature	-25ºC ~ +65ºC (storage)
Humidity	Up to 99% RH
IP rating	IP33
Certifications	CE, RoHS, FCC
Lifespan	>50,000H
warranty	5 years
Installation	Ceiling recessed with torsion springs, adjustable 20° direction
Net weight	700kg
Dimensions	Ø190x78mm
Cutout	Ø160mm
Packaging size/weight	Packing box 20.520.510.4cm, x36pcs Carton 646446.5cm, gross weight 35kg
Price	USD 25.00 / piece, MOQ 36pcs
Note: The above data are typical specifications for information only. Detailed and specific parameters of each product are subject to the sales order or contract. Related datasheets and test reports are provided upon request.

Ceiling lights -- Elegant details & Solid quality

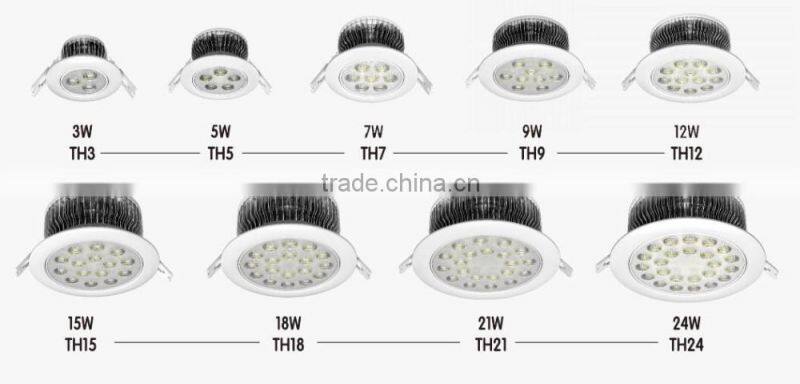

Full series from 3W to 24W Ceiling Light Fixture

Cree XPE/XPG LEDs: lens angle 15°,25°,60°, Edison 1LA5 LED: lens angle 35°

Ceiling Light Fixture -- LED and Lens

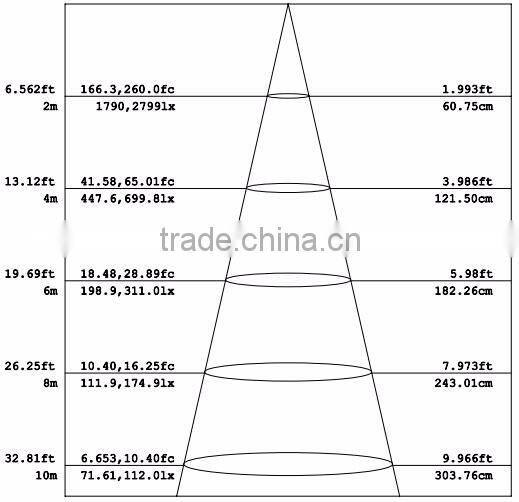

21W LED ceiling light -- effective average illuminance

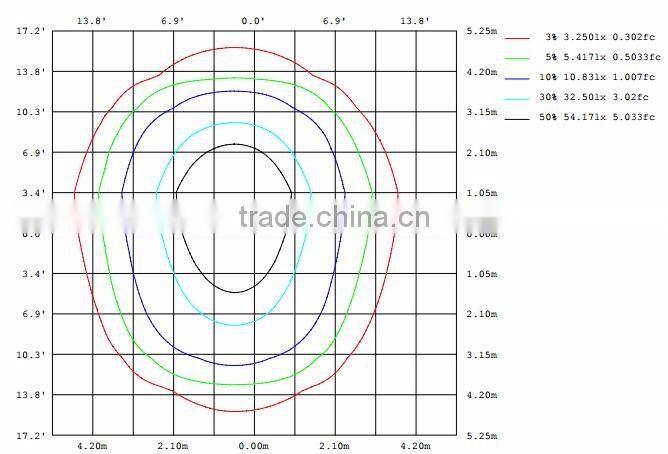

21W LED ceiling light -- plane illuminance curve

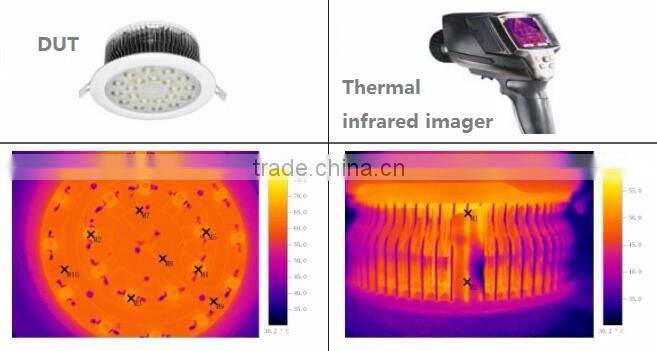

21W LED ceiling light -- thermal test results

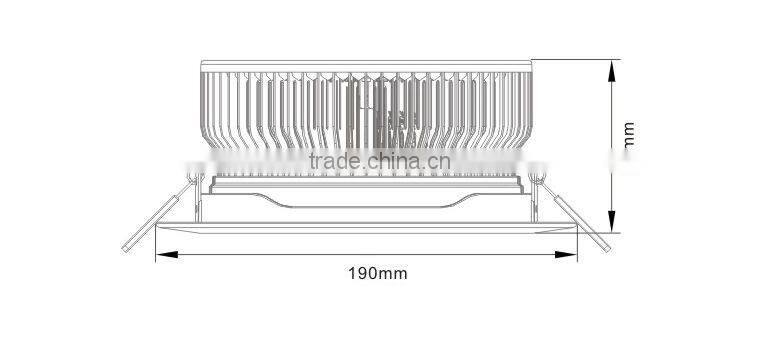

Dimensions

Dimensions Ø190x78mm, cut-out Ø160mm

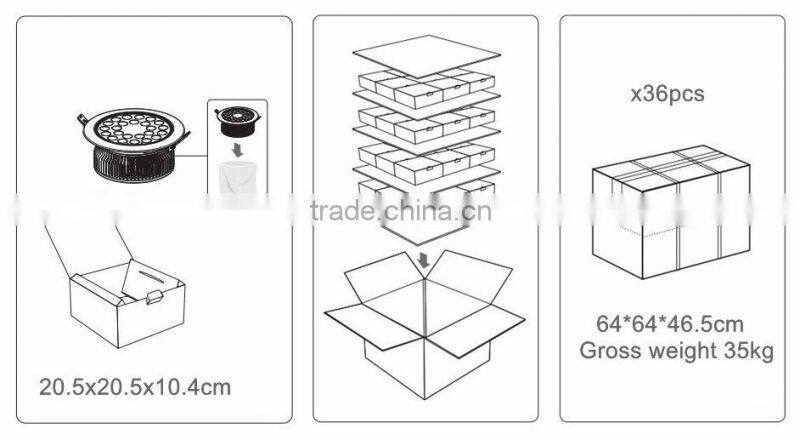

Package
