Help CenterMost Advanced Adjustable Chain Hydraulic Round Pile Breaker SP606 With Hydraulic Cylinder
Related Products
-
Excavator Parts, Hydraulic Pile Breaker for Square Concrete PileUS$ 2,250 - 2,500MOQ: 1 Set -
Adjustable Square Hydraulic Concrete Pile CutterUS$ 2,250 - 2,500MOQ: 1 Set
-
Round Pile Head CutterUS$ 1,700 - 2,170MOQ: 1 Set
-
High Power New Hydraulic Pile Head CutterUS$ 2,250 - 2,500MOQ: 1 Set
-
High Quality New Hydraulic Pile Head CutterUS$ 2,250 - 2,500MOQ: 1 Set
Specifications
1.Environment-friendly2.Low-cost
3.Multi-function
4.small volume
5.Convenience

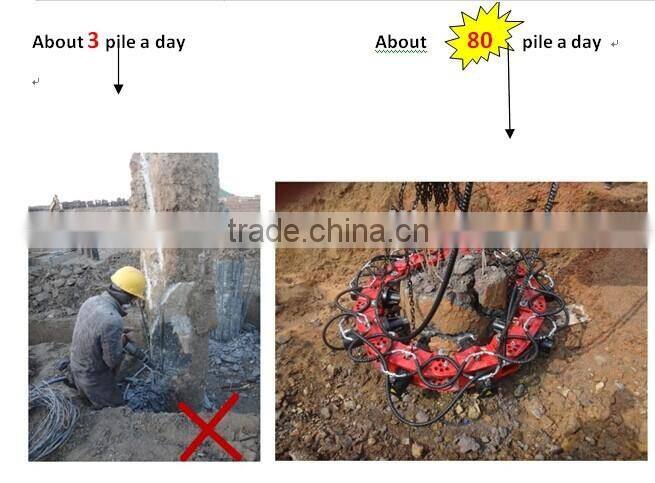

Do you tired to break the piles by manpower? Dangerous , Slowly , Noisy , Expensive salary and so on.
Don’t worry. Ray pile breaker will help you!
| Your problems | How can we solve it? |
| Dangerous |
1. Contact-free operation is enabled. 2. And it imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile. |
| Slowly |
1.Replaceable and changeable module combination makes its applicable for piles with various diameters. 2.The modules can be assembled and disassembled easily and conveniently. |
| Noisy | Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments |
| Expensive salary |
1.Fewer operating workers are required to save cost for labor and machines maintenance during construction. 2.Suitable for different kinds of carrier. 3.Module generalization is realized with our SP380 and SP400-B square pile machine. It can be used for both circular piles and square piles by changing the module combination |
| Durable? |
1. It is made of military material by first-class suppliers with reliable quality, extending its service life. 2.The mainboard used Q345B and the chisel used the 42Crmo. 3.12 month after-sales service. 4.Provide 50 spring pins for free. 5.Professional small tools for free. |

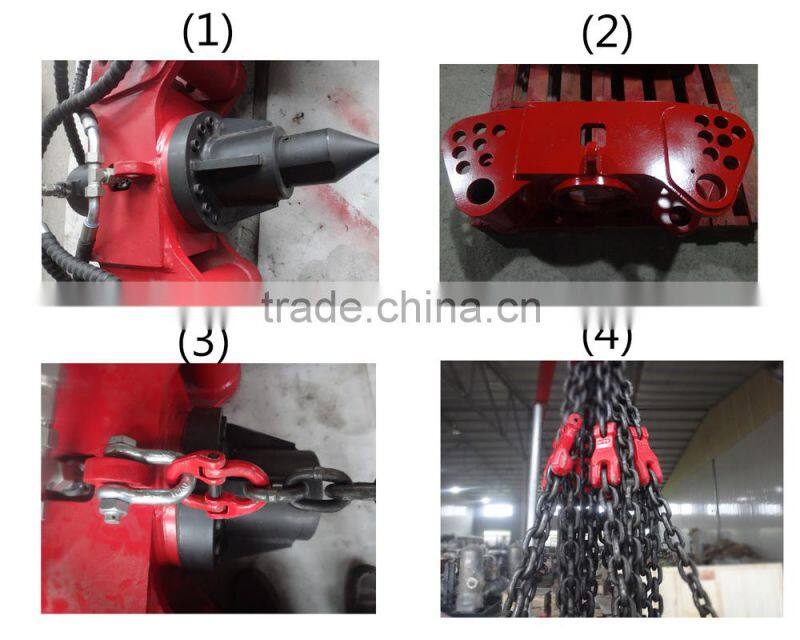

Details
(1) The mechanical stress is put pressure on the structural parts not on the connection when it worked and the oil cylinder which is specially-made by Sany used the double oil seal.
(2) There are 7 kinds of pin axle holes to match different shaft. To prevent the form of pile breaker changed when it worked.
(3)The shackle loading weight is 3 tons .Meet the national standards.
(4)The chain hoist is adjustable and the loading weight is 4 tons.

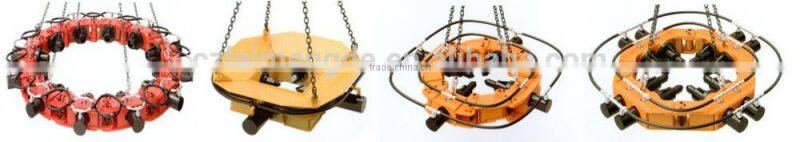

Product option
SP606/380 SP400-A SP400-B SP500
Parameter Sheet
| Model | SP606 | SP380 | SP400-A | SP400-B | SP500 |
| Range of pile diametre(mm) | 1700-1850 | 950-1050 | 300-400mm | 300-400mm | 400-500mm |
| Maximum drill rod pressure | 690KN | 320KN | 320KN | 320KN | 320KN |
| Maximum stroke of hydraulic cylinder | 180mm | 150mm | 150mm | 150mm | 150mm |
| Maximum pressure of hydraulic cylinder | 34.3Mpa | 34.3Mpa | 34.3Mpa | 34.3Mpa | 34.3Mpa |
| Maximum flow single cylinder | 25L/min | 25L/mim | 25L/mim | 25L/mim | 25L/mim |
| Cut the number of pile/8h | 40-100 | 60 | 160 | 160 | 120 |
| Height for cut pile each time | ≤300mm | ≤300mm | ≤300mm | ≤300mm | ≤300mm |
| Supporting the digging machine tonnage(excavator) | ≥35T | ≥20T | ≥7T | ≥8T | ≥15T |
| One-piece module weight | 280kg | 110kg | / | 110kg | 200kg |
| One-piece module size | 908*680*380 | 604*594*286 | / | 604*594*286 | 595*980*275 |
| Work status dimensions | 3200*3000 | 2268*2500 | 1440*1440*1500 | 1600*1600*2000 | 1710*1710*2500 |
| Total pile breaker weight | 3.7T | 1.5t | 600KG | 650KG | 960KG |

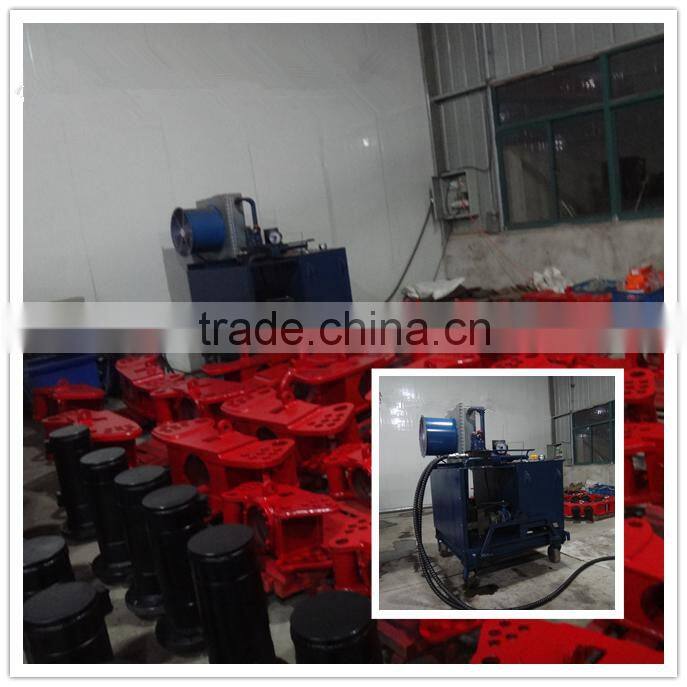

Factory and Equipment

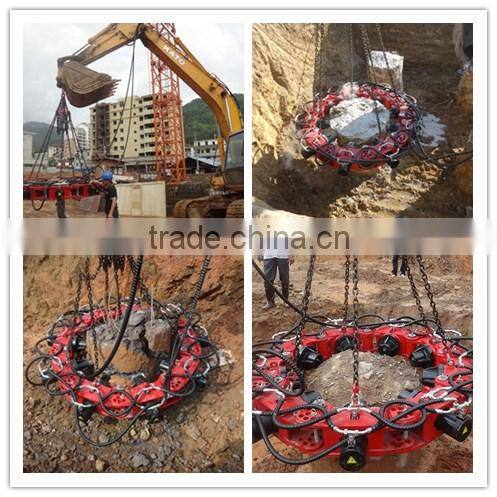

Applications: We complete project outdoor with high efficiency and much safty.

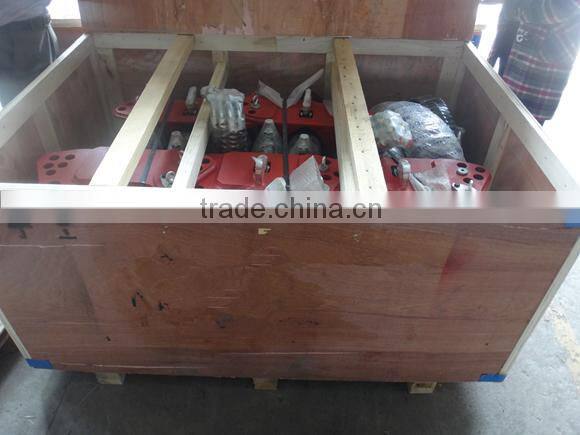

Packaging
Company profile
1.13 years experience in producing and serving.
2. We are a factory with authorized Imp & Exp .
3. Nearby Shanghai and Ningbo, convenient Transportation.
4. Awarded ISO9001-2000 certificate and also CE certificate.
5. Integration and Innovation, Cooperation and Forward Together is RAYMOND’s spirit.
Exquisite Technology, Honesty Forever is RAYMOND’s concept.
Quality Supremacy, Customer First id RAYMOND’s pursue
