Hydraulic Shear for Excavators
US$ 30,000 - 60,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
RAY
Model Number:
CR26R
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
RAY
Model Number
CR26R
After-sales Service Provided
No overseas service provided

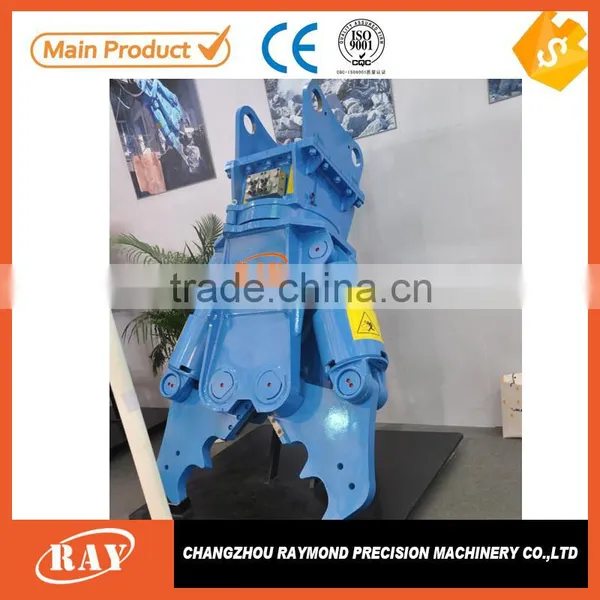

RAYMOND CR hydraulic shear have been designed to get the best out of primary demolition operations, those complex activities aimed at breaking down and remove building structures in reinforced concrete. These equipment are particularly suited to this type of use for its quality, efficacy and precision of the work carried out.
Tip 1: Make sure of the diameter and the cutting table of the object
| CR15R | CR20R | CR26R | CR40R | CR80R | CR100R | ||
| Jaw opening | A(mm) | 800 | 1050 | 1100 | 1350 | 1800 | 2050 |
| Height | B(mm) | 1800 | 2030 | 2200 | 280 | 3400 | 3200 |
| Jaw depth | C(mm) | 730 | 810 | 900 | 1160 | 1350 | 1450 |
Tip 2: Makesure of the weight of excavator, the oil flow and the working pressure of your excavator.
| CR15R | CR20R | CR26R | CR40R | CR80R | CR100R | ||
| Excavator weight | [t] | 14-18 | 18-24 | 24-35 | 35-50 | 70-90 | 90-130 |
| Tool weight | [kg] | 1600 | 2100 | 2800 | 4720 | 8250 | 11000 |
| Cyline force | [t] | 100 | 132 | 157 | 197 | 300 | 356 |
| Force at upper tips F1 (front teeth) | [t] | 64 | 84 | 92 | 122 | 202 | 241 |
| Force in the middle F2 (middle of blade) | [t] | 99 | 127 | 142 | 190 | 319 | 388 |
| Cutting force F3 | [t] | 284 | 329 | 392 | 546 | 769 | 910 |
| Hydraulic working pressure | [bar] | 280-320 | 280-320 | 280-320 | 280-320 | 320-350 | 320-350 |
| Oil flow | [l/min] | 130-150 | 180-320 | 220-250 | 250-300 | 500-600 | 600-800 |
| Rotation type | / | 360° H | 360° H | 360° H | 360° H | 360° H | 360° H |
| Hydraulic motor max oil pressure | [bar] | 90-100 | 90-100 | 90-100 | 100-115 | 140-150 | 190-200 |
| Hydraulic motor oil flow | [l/min] | 30-40 | 30-40 | 30-40 | 30-40 | 50-60 | 60-75 |
| Time of closing at max oil flow | [s] | 2,5 | 2,2 | 2,3 | 4,4 | 3 | 3 |
| Time of opening at max oil flow | [s] | 2,5 | 3,7 | 4 | 4,2 | 5 | 6 |
| N° of cycles per minute at max oil flow | [cycles/min] | 12 | 10 | 9,4 | 7,1 | 7 | 6,5 |
| N° of revs per minute at max oil flow | [revs/min] | 12 | 11 | 11 | 7,4 | 9,7 | 8,7 |
| Hyd.ports size cylinder | / |
¾" SAE 6000 p.s.i. |
1" SAE 6000 p.s.i. | 1" SAE 6000 p.s.i. | 1" 1/4 SAE6000 p.s.i. | 1" 1/2 SAE6000 p.s.i. | 1" 1/4 SAE6000 p.s.i. |
| Hyd.ports size rotation | / | ½" GAS | ½" GAS | ½" GAS | ½" GAS | ½" GAS | 3/4" GAS |
| Hyd.port size drain line | / | N,N | N,N | N,N | ¼" GAS | ¼" GAS | ¼" GAS |
| Speed valve | / | YES | YES | YES | YES | YES | YES |
| Max diameter to be cut** | [mm] | 50 | 58 | 63 | 80 | 90 | 90 |
| Blade length | [mm] | 200 | 200 | 250 | 300 | 300 | 300 |
| Interchangeable wear parts | / | NO | NO | NO | NO | NO | NO |
| Automatic grease system | / | NO | NO | NO | NO | YES | YES |
Quality is guaranteed |
Faster |
Safer |
|
1.12 month after-sales warranty 2. We have the profession team (Pre-sale service, Technical team, After-sales service.) and will solve all your problems. 3.13 years working experience in this filed. |
We are near Shanghai
Port, Ningbo Port.
Our hot-sales pruducts will
be deliveied
within 7days.
|
|
