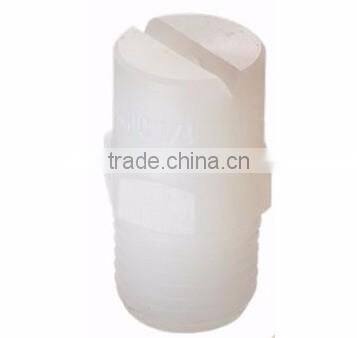

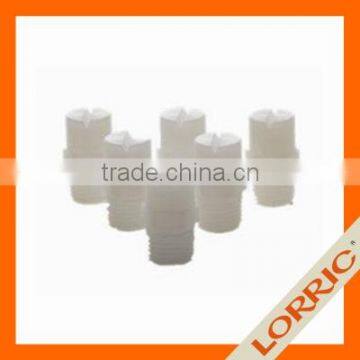

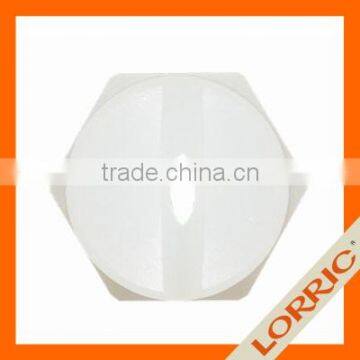

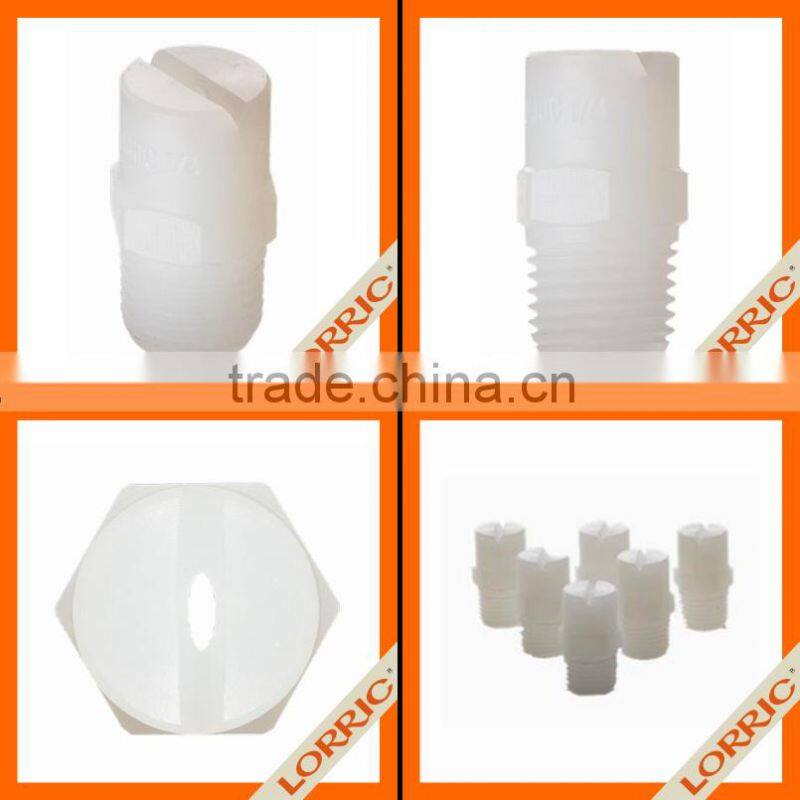

Help CenterUPE Super Wear Resistance Flat Fan Spray Nozzle
Related Products
-
Cleaning Stainless Steel Flat Fan Veejet NozzleNegotiableMOQ: 1 Piece -
Industrial Flat Fan Shaped Spray NozzleNegotiableMOQ: 1 Piece
-
Industrial Cleaning Flat Fan Water Jet Spray NozzleNegotiableMOQ: 1 Piece
-
1/4 Stainless Steel Flat Fan Water Spray NozzleNegotiableMOQ: 1 Piece
-
Washing Flat Fan Clamp NozzleNegotiableMOQ: 1 Piece
Our Advantages
- Paranoid about performance for 24 years
- United Benefit Corporation (UBC), was established in 1991.
- UBC is the first company in Taiwan that both designs and manufactures industrial products for the most demanding industries, such as: chemical processing, water treatment, electroplating, semiconductor, pollution control, Printed Circuit Board, and Coating.
- Best after service
- 100% Made in Taiwan
| Features | |
| LORRIC UPE nozzle provides longer lifetime, because we precisely machine it from ultrahigh molecular weight polyethylene rod. | |
| UPE has high abrasion wear resistance, it’s suitable for liquid with solid particles. | |
| LORRIC UPE nozzle has twice to four times the lifetime of no brand nozzle. You don’t need to stop the machine frequently for changing nozzle. LORRIC nozzle can lower your maintenance cost. | |
Although precise UPE product is very difficult to manufacture, LORRIC UPE nozzle still guarantees flow volume and spray angle tolerance within +/5% and +/ 5 degree. And the spray pattern is just as good as our other nozzle series so you don’t have to compromise nozzle performance with nozzle lifetime. | |
| Spray angles: 65° | |
| Recommended working pressure: 3.0kg/cm² | |
Flowrate tolerance:± 5% | |
Angle tolerance:± 5% | |
|
Apply for | |
| Sandblasting machine | |
| Material Guarantees | ||
| Metal | Plastic | High Quality |
|
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
|
We promise never using recycled materials | All material is purchased from world top providers. |
|
|
|
With nutted body shape design, it's easy to be installed and fixed by spinner sprongly.
Step 1. Drill a thread hole in proper size for fitting nozzle's outside diameter.
Step 2. Screw nozzle by spinner gently.

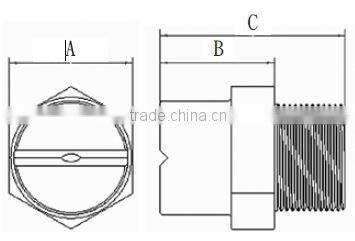

| Model | Thread (BSPT) |
Unit (mm) | ||||
| A | B | C | ||||
| H |
|
1/4" Male |
14
|
15
|
26 |
|
|
Flow Code |
1/4" | Flow Range (L/min) to Pressure (kg/cm^2) |
• Standard nozzle spray 80 degree and 90 degree. |
||||||
| 0.5 | 1.0 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | |||
| 10 | V | 1.60 | 2.26 | 3.19 | 3.91 | 4.52 | 5.05 | 5.53 | |
| 12.5 | V | 2.00 | 2.82 | 3.99 | 4.89 | 5.64 | 6.31 | 6.91 | |
• The NPT thread and the BSPT female thread are manufactured to order.
• Please contact us to check stock availability before placing your order.
"Kingspray" was our trademark for serving Greater China market since we established in 1991. Until 2006, the year for our brand evolution, we started brand-new logo LORRIC ® as our trade mark for global marketing. Absolutely, we already own the trademark right in many countries.
However, the Infringement of "Kingspray" trade mark was getting serious and caused clients' confusing with our company and products. For improving this issue, we are here to inform our valued clients that all of our products will be shipped with our new trademark LORRIC ®.
Our Belief
Keep challenging producing the world best industrial nozzles!
Lorric aka United Benefit Corp. was established in 1991. We take "Paranoid about performance" as our belief and keep exploring the extreme performance of industrial nozzles with our clients. For promising the best quality, from design, material selection, manufacture, to sales, all product development are done by ourselves, and branded as 2 brands, Lorric and Kingspray in global market.
Our Company
Born in New Taipei City and Kaohsiung, Taiwan.
| FAQ |
| 1. Do you accept OEM or ODM ? |
| No, we don't do OEM and ODM. But we are more than willing to manufacture co-branded products for you. Please ask us for MOQ info for your inquiry. |
| 2. Can the products be customized ? |
| Yes, customized products are made to order. Please ask us for MOQ info for your inquiry. |
3. How to get sample ? |
| Yes, we can provide free samples and ship it by using your express account. |
| 4. Estimated Shipping Date ? |
|
Since we have a variety of nozzle specifications. Not every spec has available stocks. Please feel free to ask us about the stock availability of your inquiry. For those nozzles with available stocks, after we receive your order and payment, the goods will ship within 3 working days. For flow meters, it will be within 5 days. |
| 5. How to order ? |
| Normally you can order our products by using Alibaba platform or contacting LORRIC representatives by Email. After we receive your messages, we will help you to choose the right specifications and other inquiries. then we will send an proforma invoice to you via mail, it includes details of your order and our bank information. After we received your payment by TT or Paypal, we will ship your goods and we will send the invoice, packing list, and the express tracking number via mail. |
| 6. What is our term of trade ? |
| Usually we use EX WORKS. If you need other term of trade, please let us know. |
| 7. How to pay ? |
| We accept the payment via T/T (bank transfer) and Paypal. Please inquire us about the details in advance. |
| 8. How are you going to deliver our goods ? |
| We can ship your goods either by air express (Fedex, DHL, UPS, TNT etc) or by sea. Please let us know your choice. |
| 9. What are the Customs Tariff Numbers of nozzle and flow meter? |
|
The nozzle Customs Tariff Number is 8424.90.3900 The flow meter Customs Tariff Number is 9026.10.000 |
| Our Product Catalog | ||
| Flat Fan Spray Nozzle | Full Cone Spray Nozzle | Spiral Spray Nozzle |
| Eductor Spray Nozzle | Flow meter | Home |
