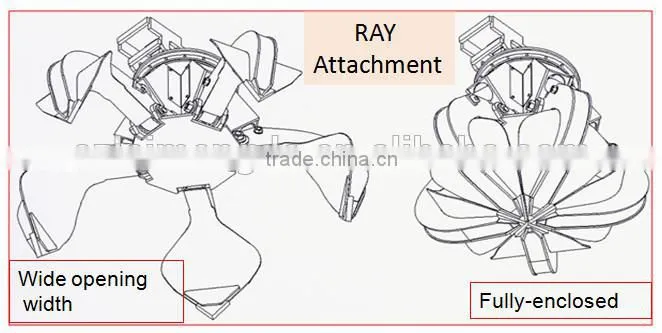

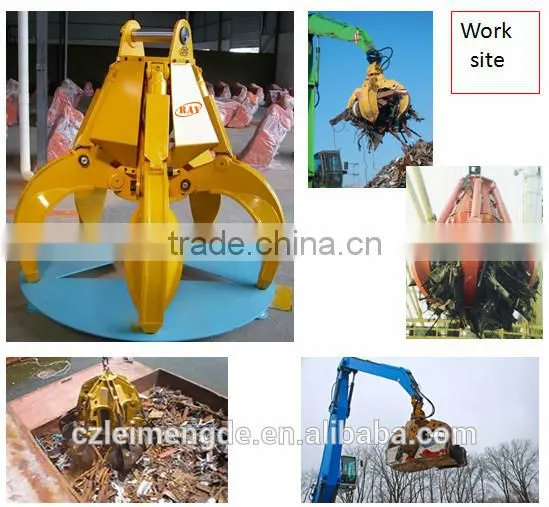

Swing hydraulic orange peel grapple
RAY orange peel grapple :
Apply to grab wood,stone,gravels,waster metals,industry waste,construction garbage and daily
rubbish.
Based on different demand,there are 2 kinds of type including hydraulic rotary peel grab
and non-rotary type.
l Non-rotary type uses excavator bucket cylinder oil pathway,no need to add hydraulic valve
and pipeline.
l Hydraulic rotary type need to add one set of hydraulic valve and pipeline to control cylinders
with piston protection device.
1.How to choose what you need?
You can choose what you need according to specification sheet as below.
| carrier(t) | type | Tines number | Ref.Weight(kg) | material |
| 3-5 | Non-swing Hydraulic orange peel grab | 4 | 380 | Q345B+NM360 |
| Swing Hydraulic orange peel grab | 420 | Q345B+NM360 | ||
| 6-10 | Non-swing Hydraulic orange peel grab | 4 | 570 | Q345B+NM360 |
| Swing Hydraulic orange peel grab | 620 | Q345B+NM360 | ||
| 11-16 | Non-swing Hydraulic orange peel grab | 5 | 820 | Q345B+NM360 |
| Swing Hydraulic orange peel grab | 880 | Q345B+NM360 | ||
| 17-20 | Non-swing Hydraulic orange peel grab | 5 | 1080 | Q345B+NM360 |
| Swing Hydraulic orange peel grab | 1180 | Q345B+NM360 | ||
| 21-24 | Non-swing Hydraulic orange peel grab | 5 | 1200 | Q345B+NM360 |
| Swing Hydraulic orange peel grab | 1300 | Q345B+NM360 | ||
| 25-30 | Non-swing Hydraulic orange peel grab | 6 | 1320 | Q345B+NM360 |
| Swing Hydraulic orange peel grab | 1450 | Q345B+NM360 | ||
| 31-35 | Non-swing Hydraulic orange peel grab | 6 | 1450 | Q345B+NM360 |
| Swing Hydraulic orange peel grab | 1600 | Q345B+NM360 | ||
| 36-40 | Non-swing Hydraulic orange peel grab | 6 | 1680 | Q345B+NM360 |
| Swing Hydraulic orange peel grab | 1850 | Q345B+NM360 | ||
| 41-45 | Non-swing Hydraulic orange peel grab | 6 | 1950 | Q345B+NM360 |
| Swing Hydraulic orange peel grab | 2150 | Q345B+NM360 |
You can also give us information as below
l Tell us waht you want to grab,like woods,stone,industry waste or other things.
l Give me model of your excavator
l Give me statistic of Arm width,pin size, pin center to center
2.Why should you choose our grapple?
Product Features
- Decreased cycle time thereby reducing operational cost.
- Enhanced ease and convenience of operation.
- into any kind of Hopper irrespective of the size
- Simple maintenance
- Shockless,noiseless and smooth operation.
3. why should you choose our company?
RAYMOND is a factory with authorized Imp.&Exp. right which including two companies,
Raymond Precision Machinery Co.,Ltd and Raymond International Trading Co.,Ltd.
l $36,000 of trade assurance we have,protect your business.
Our total Trade Assurance Limit is $36,000 now.
l 13 years experience in producing and servicing
l We will attend the CTT 2015, the 16th International show of construction equipment and technology
held in Moscow, Russian Federation on June 2,2015.
FAQ
1.What’s your payment terms?
l Trade terms:T/T,L/C,cash
