Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 0.9mm 1.5M Single Mode Fibra Optica Pigtail FC

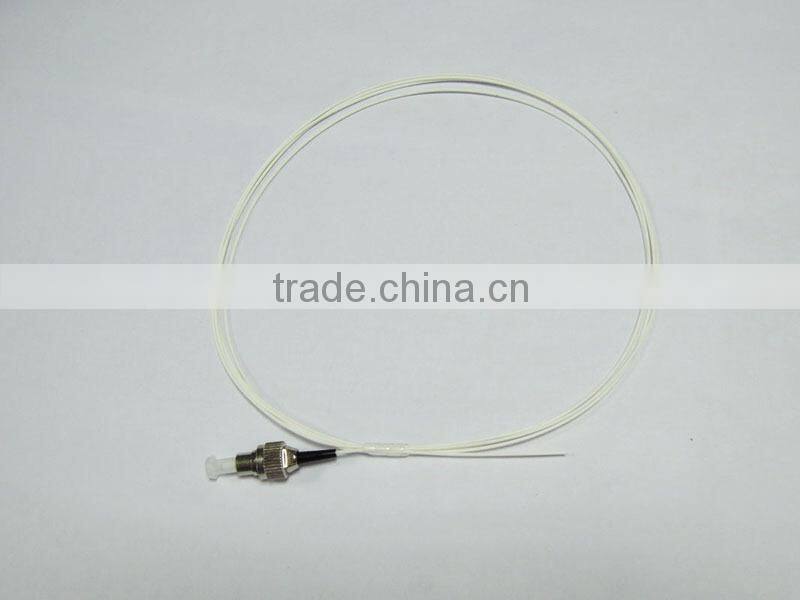

0.9mm 1.5M Single Mode Fibra Optica Pigtail FC

Name: 0.9mm 1.5M Single Mode Fibra Optica Pigtail FC
Brand: tianxingtech
SKU: 116037387
Availability: InStock

0.9mm 1.5M Single Mode Fibra Optica Pigtail FC thumbnail-1

0.9mm 1.5M Single Mode Fibra Optica Pigtail FC photo-1

US$ 0.2 - 5 MOQ: 500 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

tianxingtech

Model Number:

0.9mm pigtail FC

Contact Supplier Request Quote Chat Now

Jiangsu Tianxing Optoelectronics Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name tianxingtech

Model Number 0.9mm pigtail FC

0.9mm 1.5M single mode fibra optica pigtail FC

1. Features:

---Price Competitive

---Low Insertion Loss & PDL

---Factory-terminated and Tested

2. Applications:

---Telecom Net

---Local Ring Net

---Optical Fiber Sensor

---Optical Fiber Test Equipment

---Optical Fiber Communication System

---FTTH,LAN,PON & Optical CATV.

3. Technical specification:

Mode

Singlemode

Multimode

Fiber Type

OS1 (9/125μm)

OM1(62.5/125μm) ; OM2(50/125μm) ; OM3(50/125μm)

Operating Wavelength

1310 nm ; 1550nm

850nm

Jacket material

PVC,LSZH,OFNR

Diameter of fiber

0.9mm ; 2.0mm; 1.8mm ; 3.0mm

Contector

C/PC,FC/PC,LC/PC,E2000/APC

polishing method

UPC

APC

Insertion loss (IL)

≤0.2dB

≤0.20

≤0.30

≤0.2dB

Return loss (RL)

≥45dB

≥50dB

≥60dB

≥35dB

Repetitiveness

≤0.1dB

Exchangeability

≤0.2dB

Durability

>1000 times

Operating Temperature

-40~+80°C

Storage Temperature

-40~+85°C

Length

customized

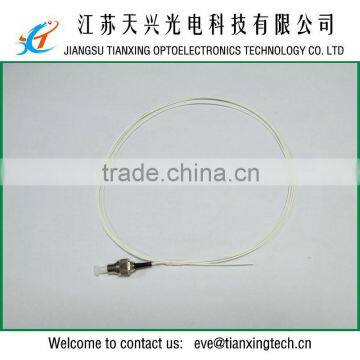

4. Product show

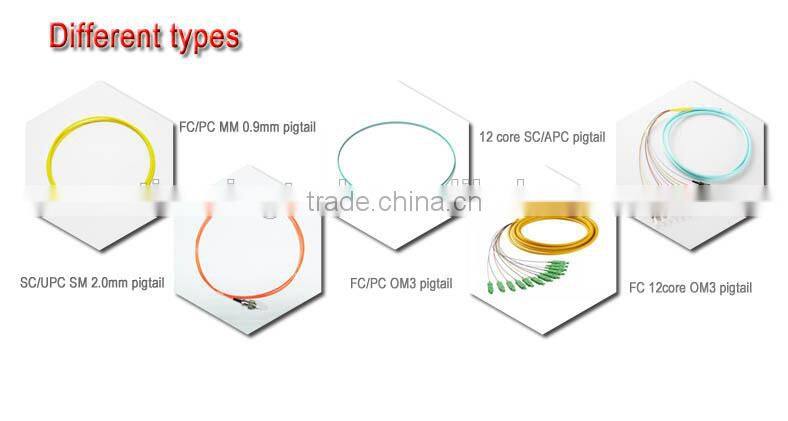

5. Different types

6. Workshop

7. shipment

Packaging & Shipping

1. packing: the packing are according to your instruction.

2. shipping: the sample will be arranged within 7 days, and the order shippment will be arranged according to the quatity.

8. Why choose us:

Tianxingtech was founded in 2010, but we have a experienced team in this field which speciallized in optical products, especially for PLC splitters and fiber optic patch cords. We promise to provide the best service, qualified products and competitive price for you.

9. Contact us

Sales: Eve Yao

Skype: trade. eve

web:

Tel: 86 511 83565358

Fax: 86 511 83565357

we sincerely hope to expand the cooperation with all the customers both at home and overseas,Each member of our term is dedicated to excellence and encouraged to be creative and to take the initiative.above all we strive to service your requirements in such a way that you,our partner will feel nice about doing business with us, we are looking forward to geting any requirement from you.
