Home > Products > FBT coupler > singal mode 1X2 ABS module FBT dual coupler with SC/UPC connector

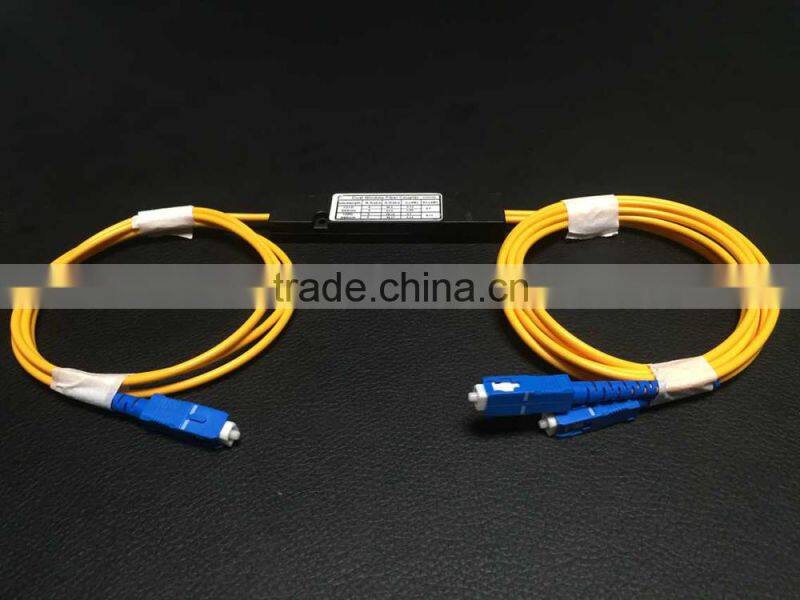

singal mode 1X2 ABS module FBT dual coupler with SC/UPC connector

Name: singal mode 1X2 ABS module FBT dual coupler with SC/UPC connector
Brand: tianxingtech
Price: Negotiable

FOB Price

Negotiable / Piece

200 Pieces(Min.Order)

Product Details

Place of Origin:

Jiangsu, China

Brand Name:

tianxingtech

Model Number:

1x2

1. Features:

---Low insert loss

---Single Fusion Design

---Uniform Power Splitting

---Compact Size

--- High stabity and reliability

---Standard: Rohs Compliants

2. Applications:

---CATV system

---Telecommunication systems

---Digital,Hybrid and AM-Vedio System

---Fiber Sensors

---Monitoring system

3. Technical specification:

Parameter		1x2
Operating Wavelength (nm)		1310/1550
Operating bandwidth (nm)		±40
Grade		P	A
Insert Loss (dB) Coupling ratio:	1/99	≤22.5/0.25	≤23.5/0.35
	2/98	≤18.8/0.3	≤19.5/0.4
	3/97	≤17.0/0.35	≤17.8/0.45
	5/95	≤14.6/0.4	≤15.5/0.5
	10/90	≤11.2/0.75	≤12.0/0.8
	20/80	≤7.9/1.3	≤8.4/1.4
	30/70	≤6.0/1.9	≤6.3/2.1
	40/60	≤4.7/2.7	≤4.9/2.9
	50/50	≤3.6	≤3.8
Excess Loss(dB)		0.07	0.1
PDL(dB)		≤0.15	≤0.20
Return Loss(dB)		>50
Directivity(dB)		≥55
Operating Temperature(ºC)		-40~85
Storage Temperature(ºC)		-40~85
Connector		SC, FC, LC or customerized
Notes: The values are all tested at +23ºC without connectors.

4. Product show

5. Factory bulding

Jiangsu Tianxing Optoelectronics Technology Co., Ltd.: Contact namecarlos Wang; Phone86-0511-83565358; AddressS308 provincial highway, Dingmali village, Zhenjiang New District, Zhenjiang city, Jiangsu, China Zhenjiang,Jiangsu
