high frequency 180kva modular and parallel ups power supply 30kva power module supply
Product Description:

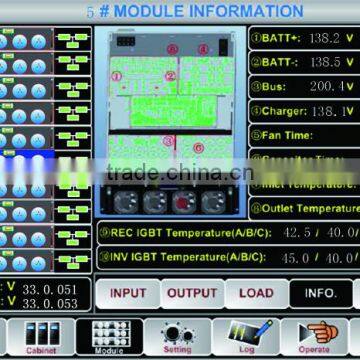

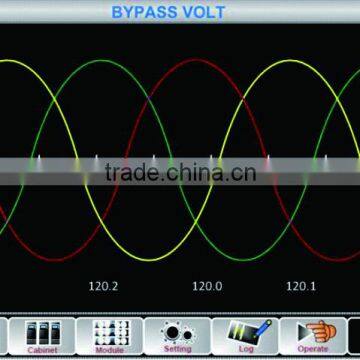

applying power. With the large touch screen LCD panel, the user can easily access to the information of the power module and the system.
Intelligent Battery Management
Each UPS module builds in with super charger and the power reaches 3200W. With 10 installed UPS modules, the total charging power rating is up to 32KW. The charger is controlled by DSP with intelligent digital arithmetic thus to prolong the life time of the battery.
Intelligent Protection System
All the power modules and the system are protected simultaneously by the hardware and the software. All kinds of protection functions are realized, including current and voltage abnormal, thermal abnormal, short circuit, etc. The reliability of the power module and the system reaches an incredible high level through all of these technologies.
Additional Outstanding Features
u High input power factor (>0.99), low input THDi (<3%).
u Strong load adaptability for linear and nonlinear load.
u Intelligent module and system protection design.
u Incredible low noise system design.
u Double DSP controller for individual power module.
u Digital control for the whole parts including rectifier, inverter, charger and discharger.
u IGBT modules rather than discrete components are applied in the power module.
u Digital controlled independent charger, intelligent battery management system.
u Inbuilt switch for cabinet input, output and maintenance connection.
u Large touch screen LCD with plenty of information.
u Independent charger for batteries, intelligent battery management system.
u Digital paralleling technology, very low circle current between modules.
u Totally front access, top and bottom cable connection.
u Each individual module is configured with independent controller, avoid single point failure risk.
u Friendly generator interface.
u Battery cold start module
u Three-lever painting (conformal coating)
Plenty of options
u SNMP communication card
u Parallel kit
u Dust-Proof net
u Batterytemperature compensation module
High reliability design
Integrated IGBT modules are used in the power module. Comparing to discrete chips, system reliability and manufacturing consistency are much improved. Low-loss integrated three-level IGBT modules help to increase system efficiency. Meanwhile reliability is increased due to lower temperature rising on IGBTs and heatsink. More chips need to be paralleled to realize high current rating if using discrete IGBT chips. Clamped Diodes should be placed around IGBTs which brings risk for voltage/current stress issues and manufacturing process.
Product Specifications:
| Mode | RM600/30X | RM300/30X | RM180/30X |
| Main Input | |||
| Grid System | 3 Phases + Neutral + Ground | ||
| Rated Input Voltage | 380/400/415VAC (Line-Line) | ||
| Rated Frequency | 50/60Hz | ||
| Input Voltage Range | 304~478Vac (Line-Line),full load; 228V~304Vac (Line-Line),load decrease linearly according to the min phase voltage |
||
| Input Frequency Range | 40Hz~70Hz | ||
| Input Power Factor |
>0.99 |
||
| Input Current THDi | <3% (full Linear Load) | ||
| Bypass Input | |||
| Rated Bypass Voltage | 380/400/415VAC (Line-Line) | ||
| Rated Frequency | 50/60Hz | ||
| Bypass Voltage Range | Selectable, default -20%~+15% Upper limit: +10%, +15%, +20%, +25%; Lower limit: -10%, -15%, -20%, -30%, -40% |
||
| Bypass Frequency Range | Selectable, ±1Hz, ±3Hz, ±5Hz | ||
| Bypass Overload | 110% Long term operation; 110%~125% for 5min; 125%~150% for 1min; |
||
| Output | |||
| Rated Inverter Voltage | 380/400/415VAC (Line-Line) | ||
| Rated Frequency | 50/60Hz | ||
| Output Power Factor | 0.9 | ||
| Voltage precision | ±1.5%(0-100% linear load) | ||
| Transient Response | <5% for step load (20% - 80% -20%) | ||
| Transient recovery | < 30ms for step load (20% - 100% -20%) | ||
| Output Voltage THDu | <1% ( linear load); <6% (non-linear load )according to IEC/EN62040-3 |
||
| Inverter Overload |
110%, 60min; 125%,10min; 150%,1min; >150%,200ms |
||
| Frequency Regulation | 50/60Hz±0.1% | ||
| Synchronized Range | Settable, ±0.5Hz ~ ±5Hz, default ±3Hz | ||
| Synchronized Slew Rate | Settable, 0.5Hz/s~ 3Hz/s, default 0.5Hz/s | ||
| Battery And Charger | |||
| Battery Rate Voltage | ±240VDC | ||
| Charger Voltage precision | 1% | ||
| Charger Power | max=20% | ||
| Efficiency | |||
| Normal Operation | >95% | ||
| Battery Operation | >95% | ||
| ECO Opetation | >99% | ||
| System | |||
| Display | 10.4” touch colour LCD+LED+Keyboard | ||
| Interface | Standard:RS232, RS485, USB,Dry Contact; Option: SNMP,AS/400 |
||
| Environmental | |||
| Operation Temperature | 0 ~ 40 ℃ | ||
| Storage Temperature | -40 ~ 70 ℃ | ||
| Relative Humidity | 0 ~ 95% (Non condensing) | ||
| Noise (1 meter) | 72dB @ 100% load, 68dB @ 45% load | 65dB @ 100% load, 62dB @ 45% load | |
| Physical data | |||
| Power Module Dimension(W*D*H,mm) | 460*790*134 | ||
| power Module Weight (kg) | 34 | ||
| Cabinet Dimension(W*D*H,mm) | 2000*1050*2000 | 600*1100*2000 | 600*1100*1600 |
| Cabinet Weigh (kg) | 660 | 220 | 165 |
