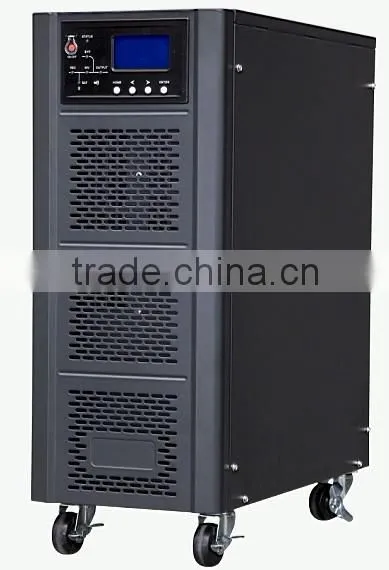

High Efficiency Low THD 3:1phase Online UPS

High Efficiency Low THD 3:1phase Online UPS thumbnail-1
High Efficiency Low THD 3:1phase Online UPS photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
INVT
Phase:
Single Phase
Contact Supplier Request Quote Chat Now
INVT Power System (Shenzhen) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name INVT
Phase Single Phase
Protection Overvoltage
Weight 25-33kgs
Output Voltage 220v/230v.240v
Type On-line
Application Telecommunications

Specifications

wide input voltage range
smart RS232 port with monitoring software
PFC technology
three phase in ,single phase out

  HT3115L HT3120L
INPUT
Cold Start YES, default frequency=50Hz or settable YES, default frequency=50Hz or settable
Acceptable Input Voltage 50%~125%(220VAC/230VAC/240VAC) 50%~125%(220VAC/230VAC/240VAC)
100% load@80%~125% 100% load@80%~125%
90% load@70%~80% 90% load@70%~80%
80% load@60%~70% 80% load@60%~70%
65% load@50%~60% 65% load@50%~60%
Phase Three phase in,single phase out Three phase in,single phase out
Transfer Voltage Range
    -Line low transfer 110VAC/115VAC/120VAC 110VAC/115VAC/120VAC
    -Line low recovery 116VAC/122VAC/127VAC 116VAC/122VAC/127VAC
    -Line high transfer 275VAC/288VAC/300VAC 275VAC/288VAC/300VAC
    -Line high recovery 268VAC/279VAC/291VAC 268VAC/279VAC/291VAC
Input Current
    -Rating(at nominal input voltage) 25.5A 34A
Input Power Factor ≥0.95 ≥0.95
Input Frequency Range 40Hz - 70Hz 40Hz - 70Hz
Generator Support Any Generator Support Any Generator
OUTPUT
Frequency adaptable Settable Settable
Power
    -Power(kVA) max 15 20
    -Power(kW) max 13.5 18
Output Voltage
    -Waveform Pure sine wave Pure sine wave
    -Nominal voltage 220/230/240VAC 220/230/240VAC
    -Voltage regulation ± 1 % ± 1 %
    -Transient response   ≤5% (50% - 100% -50%) ≤5% (50% - 100% -50%)
    -Transient recovery ≤15ms(0% - 100% -0%) ≤15ms(0% - 100% -0%)
    -Voltage distortion ≤1% THD, linear load  ≤1% THD, linear load
≤5% THD, non-linear load  ≤5% THD, non-linear load
Output Frequency
    -Synchronization range settable,±3Hz default settable,±3Hz default
    -Slew rate 0.5~5Hz/s,2Hz/s default 0.5~5Hz/s,2Hz/s default
    -Battery mode (50±0.05) Hz (50±0.05) Hz
Transfer Time
    -Line mode to battery mode 0 0
    -Inverter to bypass 0 0
Efficiency
    -Line mode with battery full charged 93.0% 93.0%
    -ECO mode 98.0% 98.0%
    -Battery mode 92.0% 92.0%
