2kva 2000va 230v Rack Ups High Frequency Ups Power Supply
US$ 230 - 300
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
INVT & OEM
Model Number:
HR1102S
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian Shekou Huangpu HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1kva 1000va 110v 220v High Frequency Rack Mount Ups With Battery PackUS$ 130 - 200MOQ: 1 Unit -
1kva 1000va 110v 220v Rack Mount Online Ups PowerUS$ 150 - 200MOQ: 1 Unit
-
CE Certificate 20kva Online Ups Power 20kva Long Back up Ups PowerUS$ 500 - 1,200MOQ: 1 Unit
-
2016 Competitive Price Ups Power 15kva Single Phase Online Ups Power Long Back up Ups PowerUS$ 600 - 800MOQ: 1 Unit
-
CE Certificate 10kva 10000va 220v 230v 240v Tower Online Ups Power External Battery Model TypeUS$ 500 - 800MOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
INVT & OEM
Model Number
HR1102S
Phase
Single Phase
Protection
Short Circuit
Weight
25kg
Output Voltage
220/230/240VAC
Type
On-line
Application
Networking
2kva 2000va 230v rack ups high frequency ups power supply

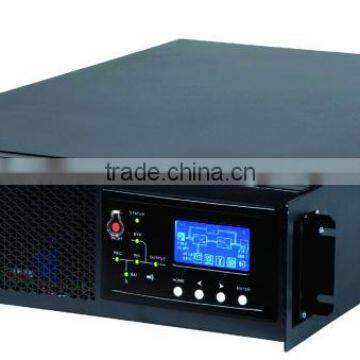

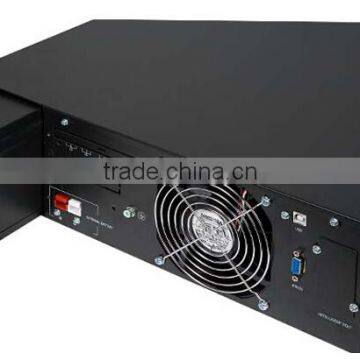

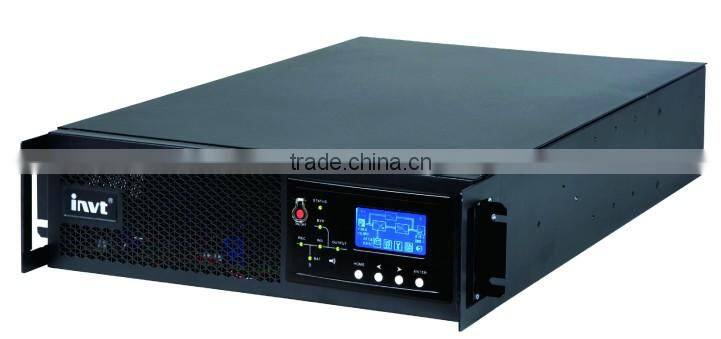

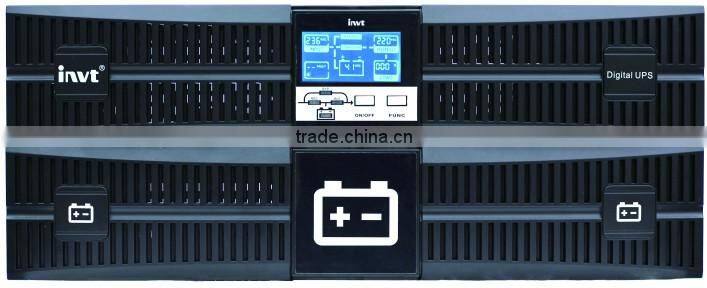

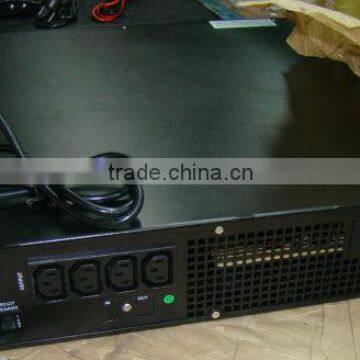

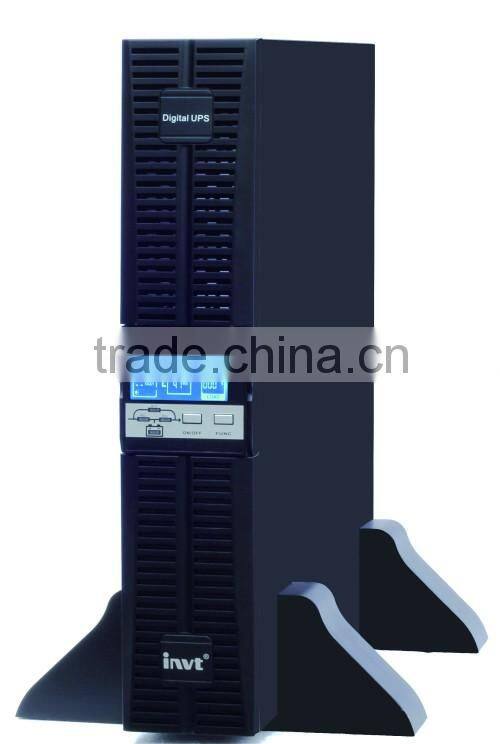

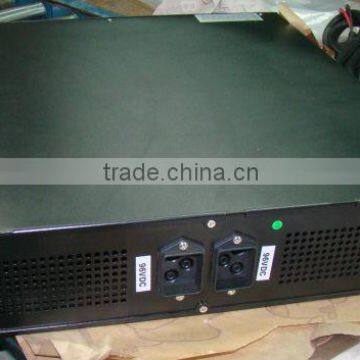

Product Images:
Product Specifications:
| HR1101S | HR1101L | HR1102S | HR1102L | HR1103S | HR1103L | |
| INPUT | ||||||
| Cold Start | YES, default frequency=50Hz or settable | |||||
| Acceptable Input Voltage | 110VAC~288VAC | |||||
| 100% load@>176VAC | ||||||
| 80% load@>154VAC | ||||||
| 70% load@>132VAC | ||||||
| 50% load@>110VAC | ||||||
| Phase | Single phase in,single phase out | |||||
| Transfer Voltage Range | (200VAC/208VAC/220VAC/230VAC/240VAC) | |||||
| -Line low transfer | 110VAC | |||||
| -Line low recovery | 121VAC | |||||
| -Line high transfer | 288VAC | |||||
| -Line high recovery | 281VAC | |||||
| Input Current | ||||||
| -Rating(nominal input voltage) | 4.8A | 9.6A | 14.4A | |||
| Input Power Factor | ≥0.97 | |||||
| Input Connection | IEC C14 | IEC C20 | IEC C20 | |||
| Input Frequency Range | 40~70Hz | |||||
| OUTPUT | ||||||
| Frequency adaptable | Settable | |||||
| Power | ||||||
| -Power(kVA) max | 1 | 2 | 3 | |||
| -Power(kW) max | 0.9(0.8 for 200VAC/208VAC) | 1.8(1.6 for 200VAC/208VAC) | 2.7(2.4 for 200VAC/208VAC) | |||
| Output Voltage | ||||||
| -Waveform(Bat. Mode) | Pure Sine Wave | |||||
| -Nominal voltage | 200/208/220/230/240VAC | |||||
| -Voltage regulation | ± 1 % | |||||
| -Transient response | ≤5% (0% - 100% -0%) | |||||
| -Transient recovery | ≤30ms (0% - 100% -0%) | |||||
| -Voltage distortion | ≤2% THD, linear load | |||||
| ≤ 5.5% THD, non-linear load | ≤ 5% THD, non-linear load | ≤ 5% THD, non-linear load | ||||
| Output Frequency | ||||||
| -Synchronization range | ±5Hz default | |||||
| -Battery mode | (50±0.1) Hz default | |||||
| Transfer Time | ||||||
| -Line mode to battery mode | 0 | |||||
| -Inverter to bypass | 2ms | |||||
| Efficiency | ||||||
| -Line mode with battery full charged | 86%@100% load, 87%@50% load | 91%@100% load, 88%@50% load | 88%@100% load, 90%@50% load | |||
| -ECO mode | 94.0% | 97.0% | 97.0% | |||
| -Battery mode | 83%@100% load, 84%@50% load | 87%@100% load, 88%@50% load | 87%@100% load, 89%@50% load | |||
| Noise(1m away) | <45dB@<60%load,<50dB@>60%load | <50dB@<60%load,<55dB@>60%load | <50dB@<60%load,<55dB@>60%load | |||
| Overload Capability(Inverter) | 105%~130%: Transfer to bypass after 1 mins. | |||||
| 150%: Transfer to bypass after 30s | ||||||
| Overload Capability(Battery Mode) | 105%~130%:shutdown after 10s | |||||
| 150%:shutdown after 5s | ||||||
| Overload Capability (Bypass Mode) | <130%: Long time | |||||
| >130%&<150%:Shutdown after 10min | ||||||
| >150%&<180%:Shutdown after 5 seconds | ||||||
| Output Connection | (6) IEC C13 | (6) IEC C13 | (6)IEC C13+(1)IEC C19 | |||
| Crest Ratio | 3:1 | |||||
| BATTERY | ||||||
| Rating/Type | 12VDC/7Ah | Depend on the capacity of external batteries | 12VDC/7Ah | Depend on the capacity of external batteries | 12VDC/7Ah | Depend on the capacity of external batteries |
| Quantity | 3 | 6 | 8 | |||
| DC Voltage | 36VDC | 72VDC | 96VDC | |||
| Back-up Time | 6mins @80% load | Depend on the capacity of external batteries | 6mins @80% load | Depend on the capacity of external batteries | 5.5mins @80% load | Depend on the capacity of external batteries |
| Battery-Low Voltage | 33VAC~35VDC depending on load | 66VDC~70VDC depending on load | 88VDC~94VDC depending on load | |||
| Backery Maintenance | Front Maintenance Online | |||||
| Charger | ||||||
| -Charging voltage | float:41VDC/boost:42VDC | float:82VDC/boost:84VDC | float:109VDC/boost:112VDC | |||
| -Charging current (max) | 1A | 8A or 4A | 1A | 8A or 4A | 1A | 8A or 4A |
| -Charging time | 8h recharge to 90% | Depend on the capacity of external batteries | 8h recharge to 90% | Depend on the capacity of external batteries | 8h recharge to 90% | Depend on the capacity of external batteries |
| Leakage current | <1mA | <1mA | <1mA | |||
| INDICATOR & ALARM | ||||||
| -Display | LED+LCD | |||||
| -Battery discharge | Sounding every 2 minutes | |||||
| -Low battery | Sounding every 6 seconds | |||||
| -Overload | Continuous beeping | |||||
| -Fault | Continuous beeping | |||||
| -Input voltage abnormal | Sounding every 2 minutes | |||||
| -Warn | Sounding every 6 seconds | |||||
| INTERFACE | ||||||
| -Smart RS232 | Standard Cable support INVT Power Monitor Software | |||||
| -SNMP(option) | Power Managment from SNMP Manager and Web Browser | |||||
| OPTION | ||||||
| -Intelligent Kits | DB9 port, dry contact | |||||
| -USB | B-type USB port | |||||
| -SNMP Kits | pluggable type | |||||
| MECHANICAL | ||||||
| -W*D*H (mm) | 438*426*86(2U) | 438*426*86(2U) | 438*476*173(4U) | 440*476*86(2U) | 438*476*173(4U) | 438*476*86(2U) |
| (max) | 438*437*86 | 438*437*86 | 438*488*173 | 440*488*86 | 438*488*173 | 438*488*86 |
| -W*D*H (mm)(shipment) | 580*565*250 | 580*565*250 | 580*660*335 | 580*615*250 | 580*660*335 | 580*615*250 |
| -Net Weight (KG) | 13.5 | 8 | 28 | 9.5 | 33 | 10.5 |
| -Package Weight(KG) | 16 | 11 | 31 | 12.5 | 36 | 13.5 |
| -Rack / Tower | Rack and Tower | |||||
| Color | Black default | |||||
Our Factory:
Our Exhibitions:
Product Certifications:
Shipping:
FAQ:
Product Quality: We are a public company(stock code: 002334) and owned 800-900 engineers for the control of product quality.
Delivery Time: Usually 15-20days, it depends to your specific order information.
Package: We have professional wooden package for large machine.
Quotation: Please leave your message,and I will send you a formal quotation via email.
