2016 Competitive Price Ups Power 15kva Single Phase Online Ups Power Long Back up Ups Power
US$ 600 - 800
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
INVT & OEM
Model Number:
HT1115L
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian Shekou Huangpu HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE Certificate 10kva 10000va 220v 230v 240v Tower Online Ups Power External Battery Model TypeUS$ 500 - 800MOQ: 1 Unit -
CE Certificate 10kva 10000va 220v 230v 240v Tower Online Ups PowerUS$ 800 - 1,000MOQ: 1 Unit
-
6kva 6000va 220v 230v 240v Tower Online Ups Power External Battery Model TypeUS$ 500 - 800MOQ: 1 Unit
-
Single Phase 6kva 6000va Stand Alone Ups Power Internal Battery ModelUS$ 600 - 800MOQ: 1 Unit
-
20kva Three Phase Online Ups Power Supply Battery Voltage 192vdcUS$ 1,500 - 1,800MOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
INVT & OEM
Model Number
HT1115L
Phase
Single Phase
Protection
Short Circuit
Weight
27kg
Output Voltage
220/230/240VAC
Type
On-line
Application
Networking
2016 competitive price ups power 15kva single phase online ups power long back up ups power
| HT1106S | HT1106L | HT1110S | HT1110L | |
| INPUT | ||||
| Cold Start | YES, default frequency=50Hz or settable | YES, default frequency=50Hz or settable | ||
| Acceptable Input Voltage | 50%~125%(220VAC/230VAC/240VAC) | 50%~125%(220VAC/230VAC/240VAC) | ||
| 100% load@80%~125% | 100% load@80%~125% | |||
| 90% load@70%~80% | 90% load@70%~80% | |||
| 80% load@60%~70% | 80% load@60%~70% | |||
| 65% load@50%~60% | 65% load@50%~60% | |||
| Phase | Single phase in,single phase out | Single phase in,single phase out | ||
| Transfer Voltage Range | ||||
| -Line low transfer | 110VAC/115VAC/120VAC | 110VAC/115VAC/120VAC | ||
| -Line low recovery | 116VAC/122VAC/127VAC | 116VAC/122VAC/127VAC | ||
| -Line high transfer | 275VAC/288VAC/300VAC | 275VAC/288VAC/300VAC | ||
| -Line high recovery | 268VAC/279VAC/291VAC | 268VAC/279VAC/291VAC | ||
| Input Power Factor | ≥0.99 | ≥0.99 | ||
| Input Frequency Range | 40Hz - 70Hz | 40Hz - 70Hz | ||
| Generator | Support Any Generator. | Support Any Generator. | ||
| OUTPUT | ||||
| Frequency adaptable | Settable | Settable | ||
| Power | ||||
| -Power(kVA) max | 6 | 10 | ||
| -Power(kW) max | 5.4 | 9 | ||
| Output Voltage | ||||
| -Waveform | Pure sine wave | Pure sine wave | ||
| -Nominal voltage | 220/230/240VAC | 220/230/240VAC | ||
| -Voltage regulation | ± 1 % | ± 1 % | ||
| -Transient response | ≤5% (50% - 100% -50%) | ≤5% (50% - 100% -50%) | ||
| -Transient recovery | ≤15ms (0% - 100% -0%) | ≤15ms (0% - 100% -0%) | ||
| -Voltage distortion | ≤1% THD, linear load | ≤1% THD, linear load | ||
| ≤ 5% THD, non-linear load | ≤5% THD, non-linear load | |||
| Output Frequency | ||||
| -Synchronization range | settable,±3Hz default | settable,±3Hz default | ||
| -Slew rate | 0.5~5Hz/s,2 Hz/s default | 0.5~5Hz/s,2Hz/s default | ||
| -Battery mode | (50±0.05) Hz | (50±0.05) Hz | ||
| Transfer Time | ||||
| -Line mode to battery mode | 0 | 0 | ||
| -Inverter to bypass | 4ms | 0 | ||
| Efficiency | ||||
| -Line mode with battery full charged | 93.0% | 93.0% | ||
| -ECO mode | 98.0% | 98.0% | ||
| -Battery mode | 92.0% | 92.0% | ||
| Noise | <48dB@<70%load,<58dB@>70%load;1m away | <48dB@<70%load,<60dB@>70%load;1m away | ||
| Overload Capability (Line Mode) | 110%: Transfer to bypass after 10 mins. | 110%: Transfer to bypass after 10 mins | ||
| 130%: Transfer to bypass after 1 min | 130%: Transfer to bypass after 1 min | |||
| 150%: Transfer to bypass after 30s, shutdown after 1 min.(Line mode) | 150%: Transfer to bypass after 30s, shutdown after 1 min.(Line mode) | |||
| Overload Capability (Battery Mode) | 110%: Shutdown after 10mins (Battery mode) | 110%: Shutdown after 10mins (Battery mode) | ||
| 125%:Shutdown after 10s(Battery mode) | 125%:Shutdown after 10s(Battery mode) | |||
| >125%: Shutdown after 1s (Battery mode) | >125%: Shutdown after 1s (Battery mode) | |||
| Crest Ratio | 3:1 | 3:1 | ||
| BATTERY | ||||
| Rating/Type | 12VDC/7Ah | Depend on the capacity of external batteries | 12VDC/9Ah | Depend on the capacity of external batteries |
| Quantity | 16 | 16 | ||
| DC Voltage | 192VDC | 192/240VDC | 192VDC | 192/240VDC |
| Back-up Time | 4mins @80% load | Depend on the capacity of external batteries | 3.5mins @80% load | Depend on the capacity of external batteries |
| Battery-Low Voltage | (176±3)VDC | (176±3)VDC | ||
| Charger | ||||
| -Charging voltage | (220±1%)VDC | (220±1%)VDC | ||
| -Charging current (max) | 1A | 5A | 1A | 5A |
| -Charging time | 7h recharge to 90% | Depend on the capacity of external batteries | 8h recharge to 90% | Depend on the capacity of external batteries |
| Leakage current | <1mA | <1mA | ||
| INDICATOR & ALARM | ||||
| Display | LED+LCD | LED+LCD | ||
| Alarm | Sounding once per second | |||
| Fault | Continuous beeping | |||
| INTERFACE | ||||
| Smart RS232 | Standard Cable support INVT Power Monitor Software | |||
| B type USB(optional) | Standard Cable support INVT Power Monitor Software | |||
| EPO | Remoted EPO function for customer. Short to activate | |||
| Dry Contactor(optional) | DB9 type and phoenix terminal type for selection. (6 output ports, 1 input port) UPS fault alarm, general alarm, bypass mode, UPS normal mode, battery low voltage alarm, utility failure alarm, remoted shutdown. | |||
| SNMP(optional) | Power Managment from SNMP Manager and Web Browser | |||
| Option | SNMP, USB, Dry Contactor(AS400),Parallel Kit, ECO Kit, External Battery Cable(standard model), Maintenance Bypass, Maintenance Bypass | |||
| Reserved function | Can be designed as deffirent function according to customer's application | |||
| MECHANICAL | ||||
| W*D*H (mm) | 250*562*650 | 250*504*480 | 250*562*650 | 250*504*480 |
| Net Weight (KG) | 57 | 18 | 65 | 20 |
| Color | Black | Black | ||

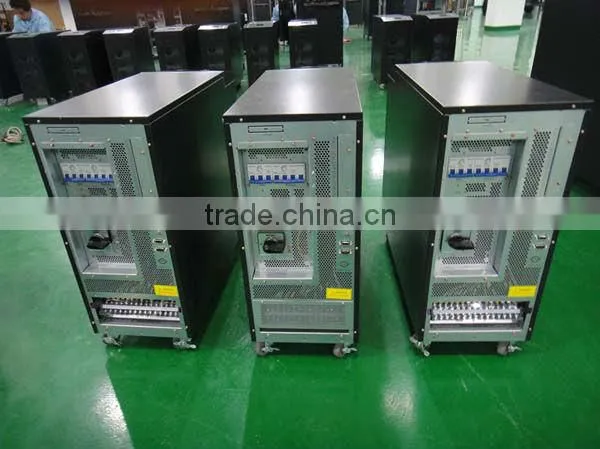

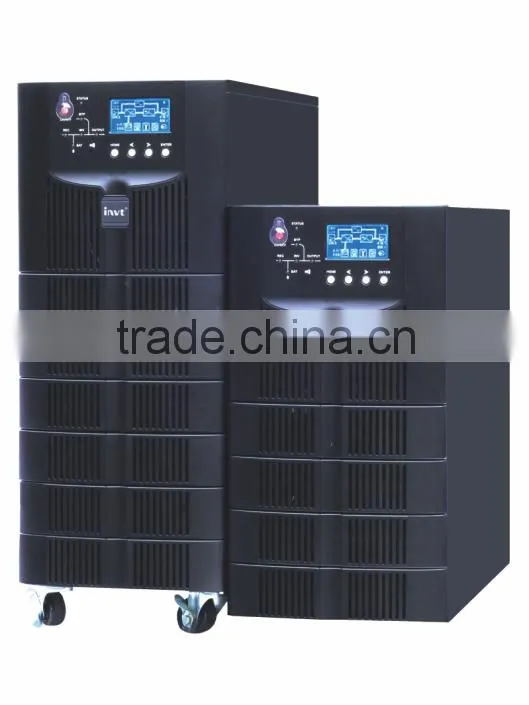

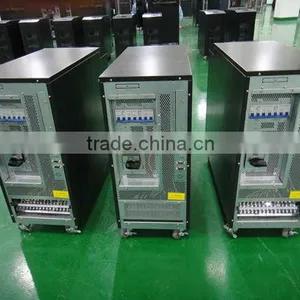

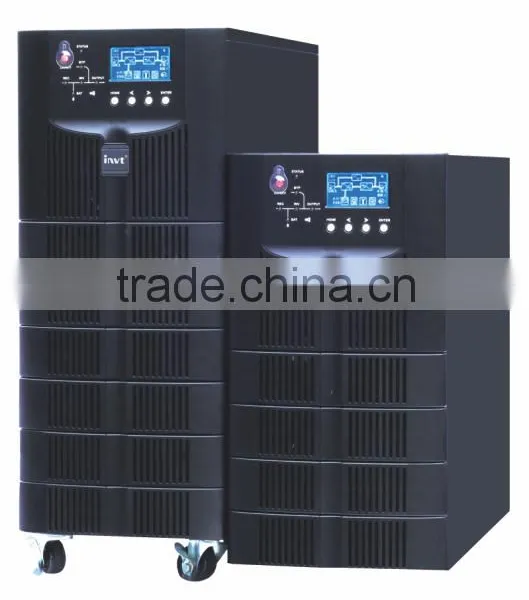

Product Images:

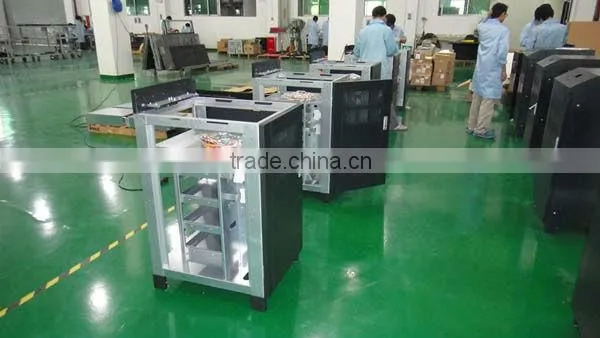

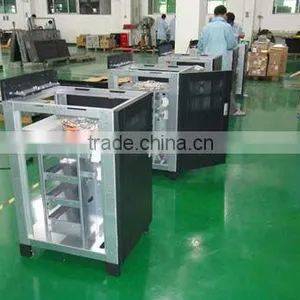

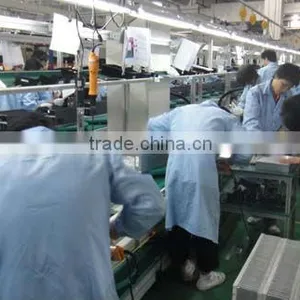

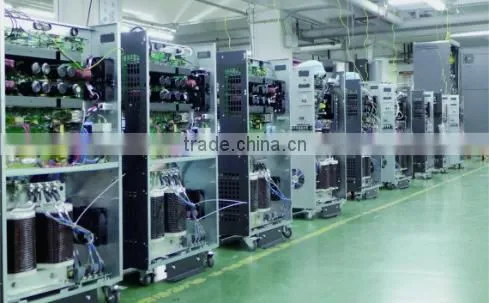

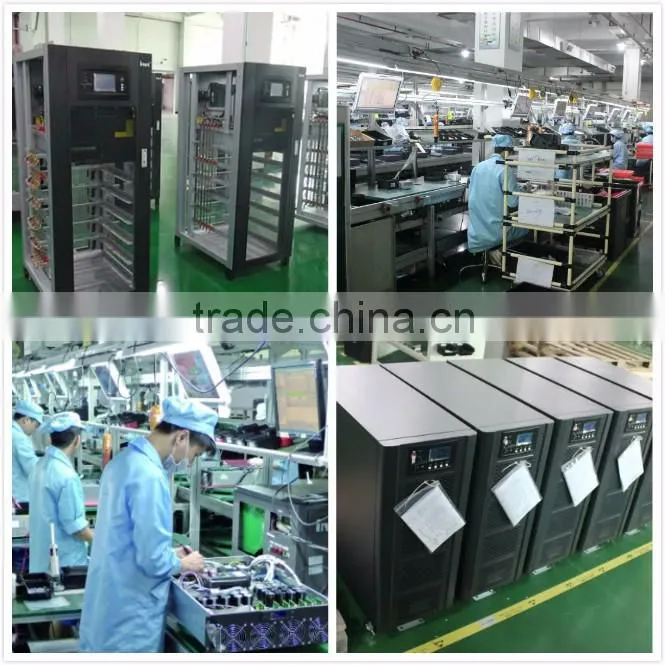

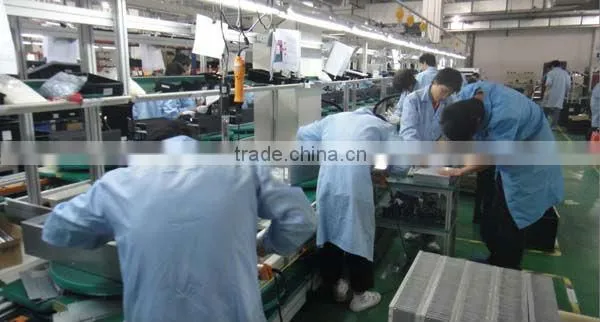

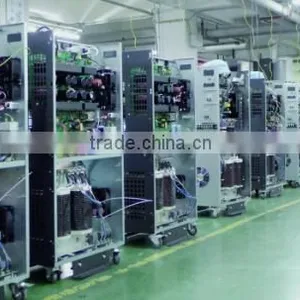

Our Factory:

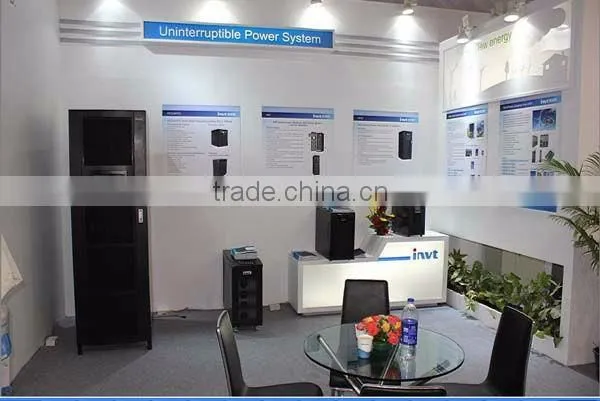

Our Exhibitions:

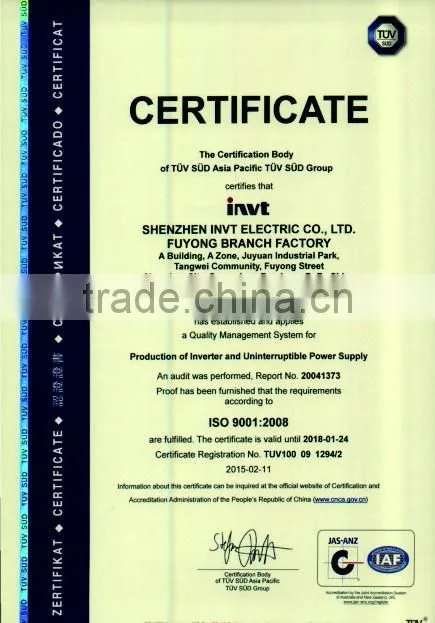

Product Certifications:

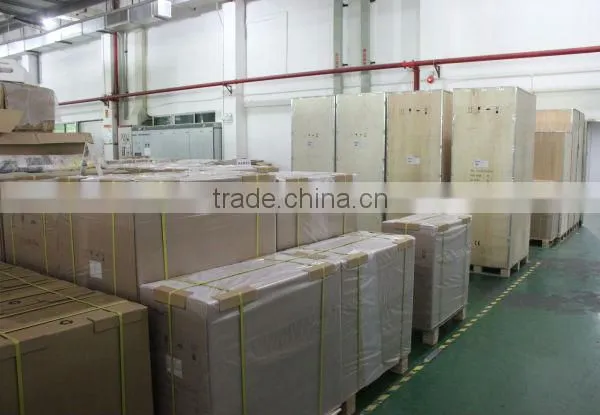

Shipping:
FAQ:
Product Quality: We are a public company(stock code: 002334) and owned 800-900 engineers for the control of product quality.
Delivery Time: Usually 15-20days, it depends to your specific order information.
Package: We have professional wooden package for large machine.
Quotation: Please leave your message,and I will send you a formal quotation via email.
