Brief Introduction of Product
Thermoplastic LSZH flame retardant cable compound, based on polymers with no halogen, is produced by mixing, plasticizing, granulation with adding halogen-free flame retardatns, antinoxidants, lubricants, modifiers and etc. The product has halogen-free, low smoke volume, low corrosion, and low toxicity characteristic; also has excellent physical and mechanical properties, flame resistance and extrusion processability. The product is suitable for manufacturing the various cables located in the places which have highly flame retardant requirements.

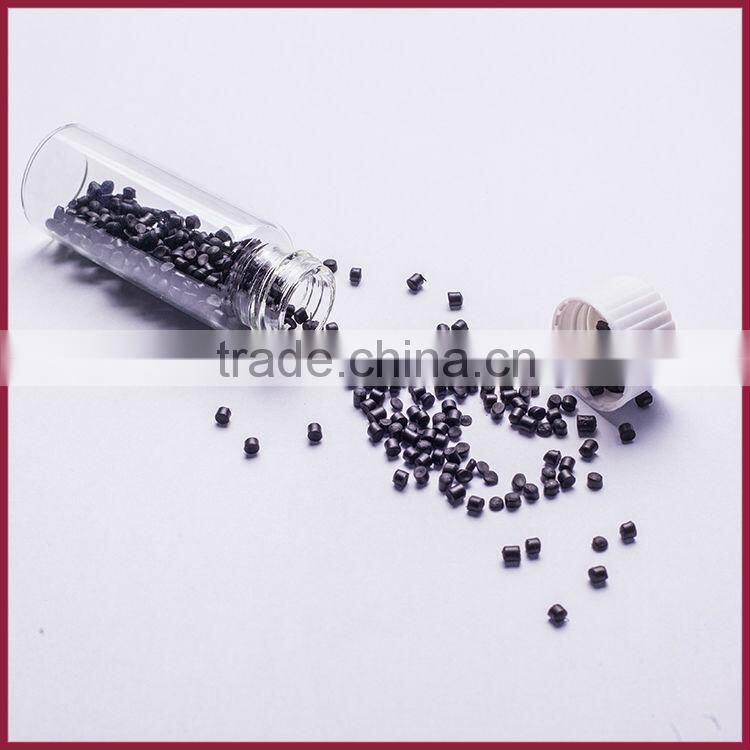

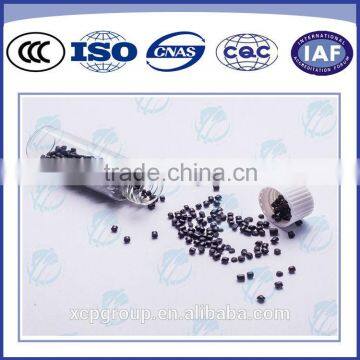

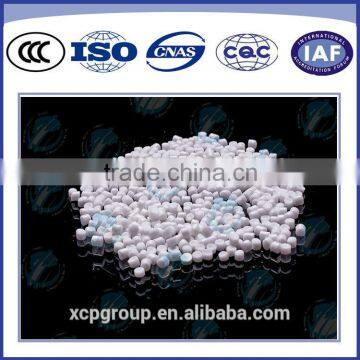

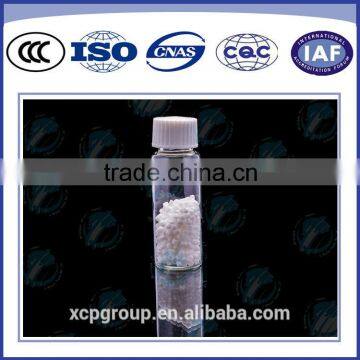

Product Showcase
Type & Typical Value
Test Item |
Unit |
Typical Value |
||
WDZ-H |
WDZ-J |
|||
Original Tensile Strength |
MPa |
11.5 |
12.5 |
|
Original Elongation at Break |
% |
250 |
220 |
|
Variation on Tensile Strength after Aging |
% |
+5 |
+5 |
|
Variation on Elongation at Break after Aging |
% |
-5 |
-5 |
|
Thermal Deformation |
% |
30 |
28 |
|
Impact Brittleness Temperature |
℃ |
-27 |
-27 |
|
Volume Resistivity |
Ω.m |
5.0×1011 |
2.0×1012 |
|
Dielectric Strength |
MV/m |
24 |
24 |
|
Smoke Density |
Flameless |
- |
240 |
240 |
Flame |
- |
10 |
10 |
|
Oxygen Index |
% |
34 |
32 |
|
Halogen Acid Gas Content |
Mg/g |
3 |
3 |
|
PH Value |
- |
6.0 |
6.0 |
|
Conductivity |
us/mm |
5 |
5 |
|
Toxicity Index |
- |
4 |
4 |
|

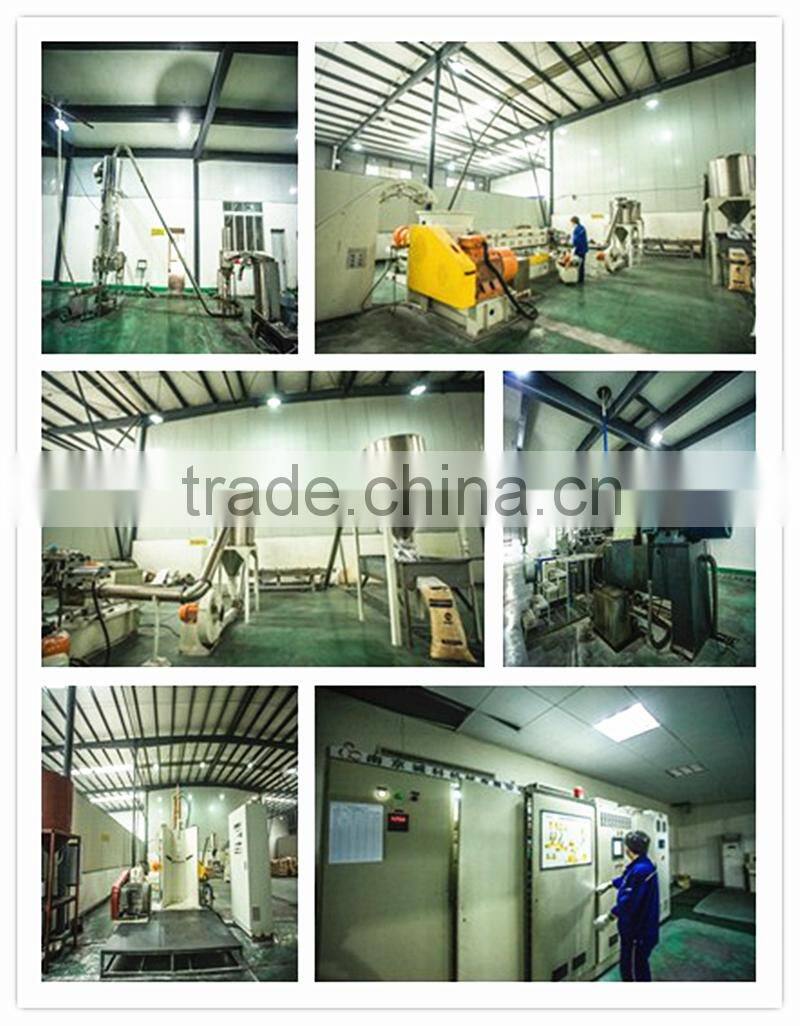

Main Prduction Line

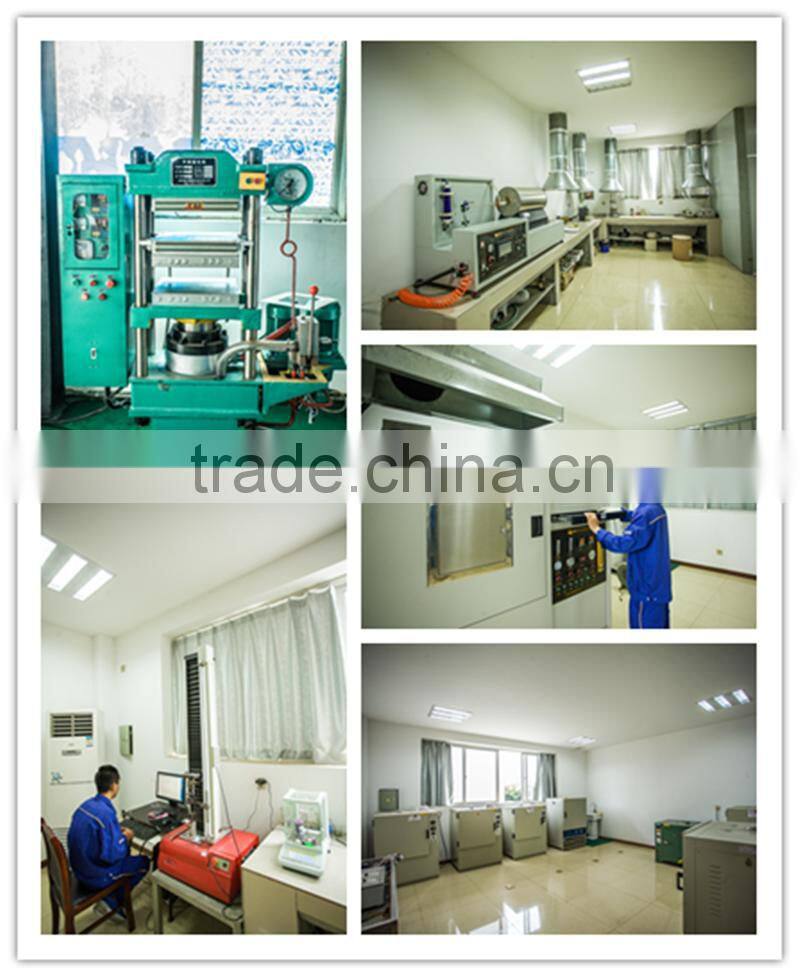

Main Test Equipment
Professional and Safe Shipping

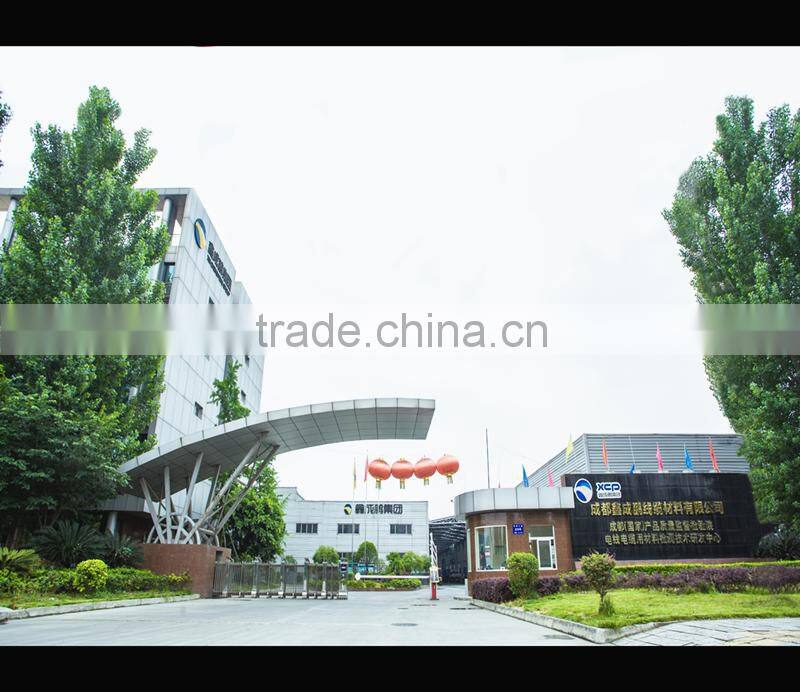

Chengdu Xinchengpeng Group is a joint-stock enterprise that specialized in manufacturing various wires and cables, insulating wire and cable compound,metal conductor material, also the only enterprise that specialized in manufacturing polymer materials for wire and cable in Sichuan province.
The company integrates the R&D, manufacture and sales, specialized in manufacturing insulating wire and cable compound, the leading products include Polyethylene cable compound, PVC cable compound, environmental PVC cable compound, chemical cross-linked cable compound, silane cross-linked cable compound, thermoplastic halogen-free flame retardant cable compound, semi-conductive shielding cable compound, high-voltage cable PVC and Polyethylene jacket compound also power cable, overhead cable, control cable, aluminum wire, ACSR, PVC insulation wire, special cable and various electrician coppe, aluminum wire.
The company always insist on the principle of "Treat quality as life, take market as guide, keep innovating, satisfy customers".
We would be interested to hear from companies who are keen to work with us.
In this industry, our group took a lead in passing ISO 9001: 2008 quality management system certification, ISO14001: 2004 environmental management system certification, the CCC state compulsory certification etc. and was appraised as Sichuan Famous Brand Produts. All of the products have been accredited through the authority, the indicators also have reached or exceeded the national standard, widely used in electricity, telecommunication and other fields.
