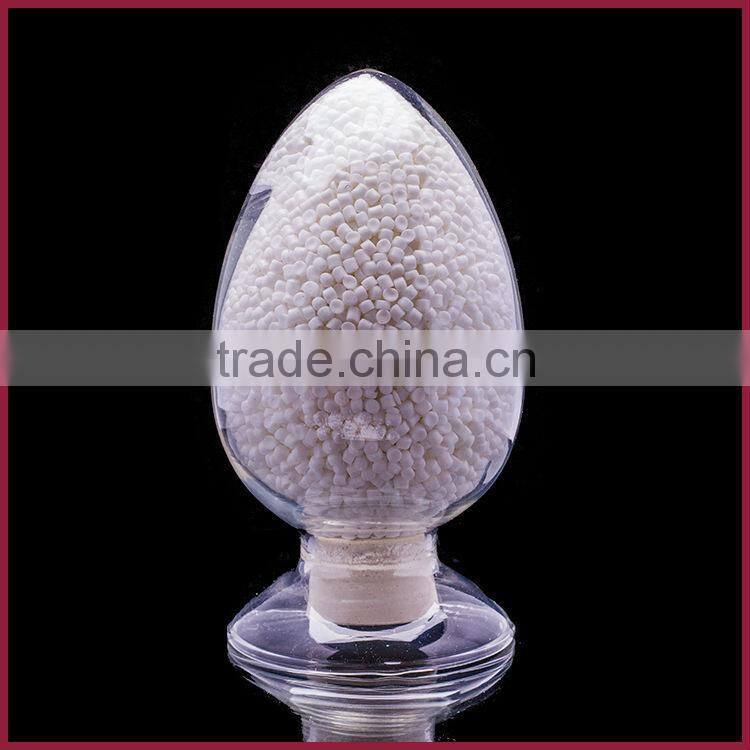

Good quality products:
Product Description:
Thermoplastic LSZH flame retardant cable Compound,based on polymers with no halogen, is produced by mixing, plasticizing, granulation with adding halogen-free flame retardants, antioxidants, lubricants, modifiers and etc. The product has halogen-free, low smoke volume, low corrosion, and low toxicity characteristic; also has excellent physical and mechanical properties, flame resistance and extrusion processability. The product is suitable for manufacturing the various cables located in the places which have highly flame retardant requirements.
Type And Application:
Type |
Application |
WDZ-J |
Insulating Compound for 0.6/1kv and below Wire and Cable(highly flame retardant requirements; the conductor maximum operating temperature is 70 ℃ |
WDZ-H |
Jacket Compound for communication cable, control cable, signal cable and power cable(highly flame retardant requirements; the conductor maximum operating temperature is 90 ℃) |
The Typical Value:
Test Item |
Unit |
Typical Value |
||
WDZ-H |
WDZ-J |
|||
Original Tensile Strength |
MPa |
11.5 |
12.5 |
|
Original Elongation at Break |
% |
250 |
220 |
|
Variation on Tensile Strength after Aging |
% |
+5 |
+5 |
|
Variation on Elongation at Break after Aging |
% |
-5 |
-5 |
|
Thermal Deformation |
% |
30 |
28 |
|
Impact Brittleness Temperature |
℃ |
-27 |
-27 |
|
Volume Resistivity |
Ω.m |
5.0×1011 |
2.0×1012 |
|
Dielectric Strength |
MV/m |
24 |
24 |
|
Smoke Density |
Flameless |
- |
240 |
240 |
Flame |
- |
10 |
10 |
|
Oxygen Index |
% |
34 |
32 |
|
Halogen Acid Gas Content |
Mg/g |
3 |
3 |
|
PH Value |
- |
6.0 |
6.0 |
|
Conductivity |
us/mm |
5 |
5 |
|
Toxicity Index |
- |
4 |
4 |
|

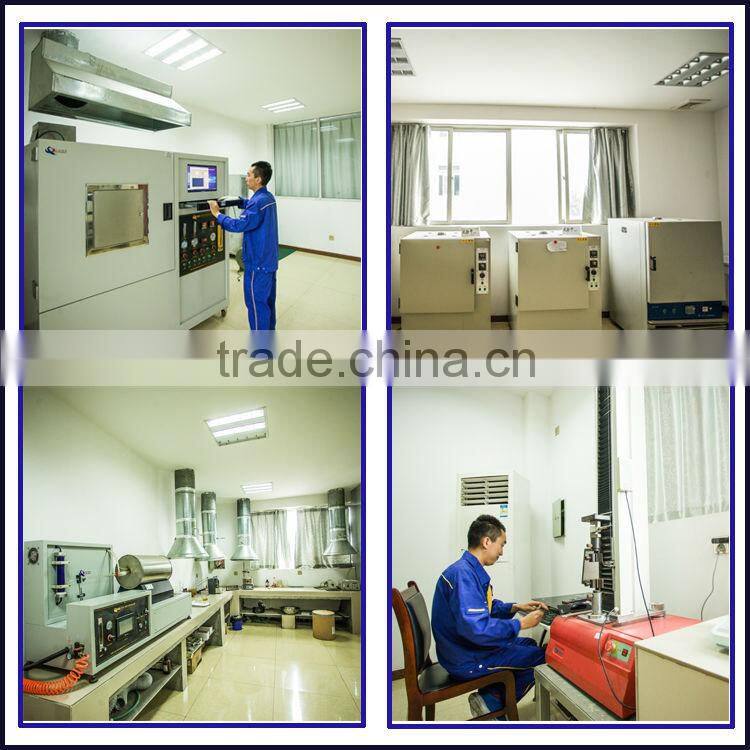

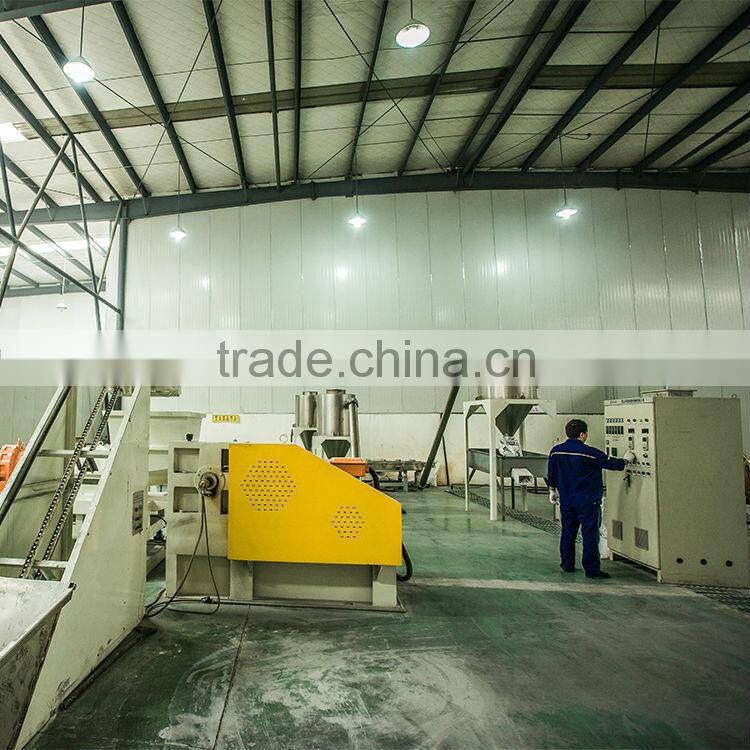

Advanced Production Line And Text Equipment:
Our Certifications:
Packing And Shipping:

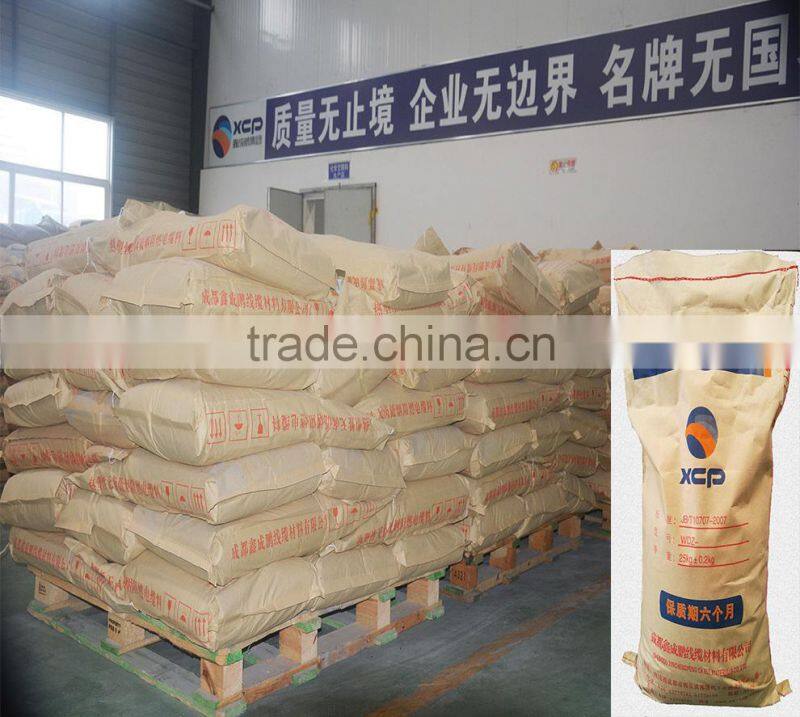

We have Special Package for Different Products:

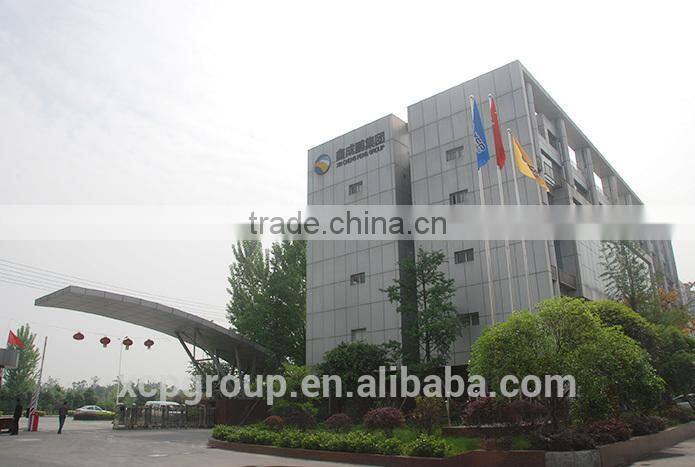

Our Company:
