Wenzhou Yika IEC Porcelain Cutout Insulator Yika-china
US$ 5 - 15
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YIKA
Model Number:
YK1-24/100, YK1-24/200
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wenzhou Yika Lightning Discharge Counter Yika-chinaUS$ 10 - 20MOQ: 3 Pieces -
Wenzhou Yika Surge Arrester Bracket Nema Mounting BracketUS$ 0.1 - 3MOQ: 10 Pieces
-
Wenzhou Yika Surge Arrestor Mounting Bracket Lightning Plate Nema BracketUS$ 0.5 - 3MOQ: 10 Pieces
-
Wenzhou Yika Lightning Arrestor Varistor High Power The Electric BlockUS$ 0.5 - 5MOQ: 10 Pieces
-
Wenzhou Yika Zinc Oxide Blocks For Arrester BlockUS$ 1 - 10MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
YIKA
Model Number
YK1-24/100, YK1-24/200
Usage
High Voltage
Breaking Capacity
High
Safety Standards
IEC
Porcelain Cutout Insulator Yika-china
Specifications

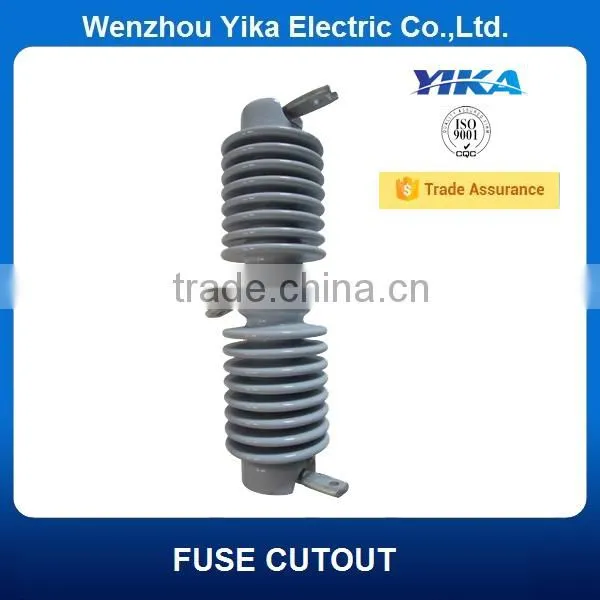

The Cutout Insulator used for 24KV Porcelain Fuse Cutout
Specifications:

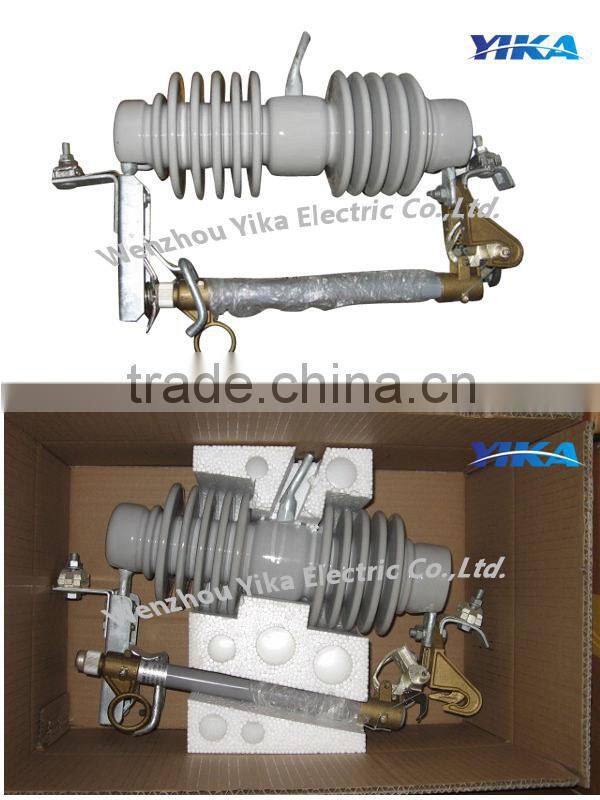

The Fuse Cutout are connected with the incoming feeder of the distribution transformer or distribution lines. These are primary used to protect transformers or lines from short circuits and overloads and switching currents. The drop out fuse unit is composed of insulator supports and a fuse tube, static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube. The interior of the fuse tube is the extinguishing tube, the exterior is made of phenolic compound paper tube or epoxy glass.
| Model |
Rated Voltage (KV) |
Rated Current (A) |
Breaking current (A) |
BIL (KV) |
power frequency withstand voltage(KV) |
creepage distance (mm) |
weight (kgs) |
dimension (cm) |
| YK1 | 20-27 | 100 | 10,000 | 150 | 65 | 510 | 11 | 51*34*17 |
| YK1 | 20-27 | 200 | 12,000 | 150 | 65 | 510 | 11 | 51*34*17 |
Packaging
