Wenzhou Yika IEC 15KV Dropout Fuse Components
US$ 10 - 20
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YIKA
Model Number:
YK3-15/100, YK3-15/200
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wenzhou Yika Arrester Discs for 66KV ArresterUS$ 1 - 10MOQ: 10 Pieces -
Wenzhou Yika Metal Oxide Varistors for 66-220KV ArresterUS$ 1 - 10MOQ: 10 Pieces
-
Wenzhou Yika Surge Arrestor Counter Surge Counter JS-8US$ 10 - 20MOQ: 10 Pieces
-
Wenzhou Yika IEC 15KV Polymer Fuse Cutout ComponentsUS$ 5 - 15MOQ: 10 Pieces
-
Wenzhou Yika Arrestor Bracket Arrester Mounting Bracket to ArresterUS$ 0.1 - 3MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
YIKA
Model Number
YK3-15/100, YK3-15/200
Usage
High Voltage
Breaking Capacity
High
Safety Standards
IEC
15KV Dropout Fuse Components
Specifications

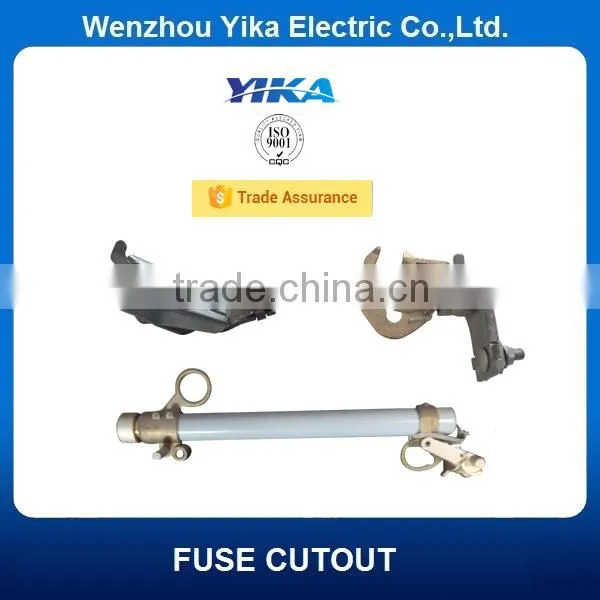

The Dropout Fuse Components are used for High Voltage Fuse Cutout .
Specifications:

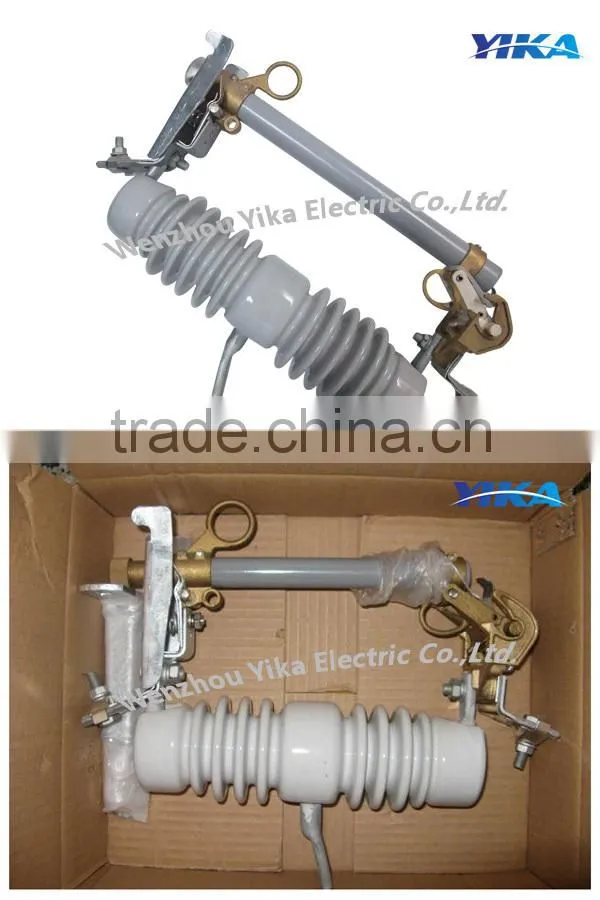

The Fuse Cutout are connected with the incoming feeder of the distribution transformer or distribution lines. These are primary used to protect transformers or lines from short circuits and overloads and switching currents. The drop out fuse unit is composed of insulator supports and a fuse tube, static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube. The interior of the fuse tube is the extinguishing tube, the exterior is made of phenolic compound paper tube or epoxy glass.
| Model |
Rated Voltage (KV) |
Rated Current (A) |
Breaking current (A) |
BIL (KV) |
power frequency withstand voltage(KV) |
creepage distance (mm) |
weight (kgs) |
dimension (cm) |
| YK3 | 15-27 | 100 | 10,000 | 125 | 45 | 320 | 8.5 | 51*34*10 |
| YK3 | 15-27 | 200 | 12,000 | 125 | 45 | 320 | 8.5 | 51*34*10 |
