Home > Electrical & Electronics > Breaker & Protector > Fuse > Wenzhou Yika IEC 24KV Fuse Cutout Insulator Composite

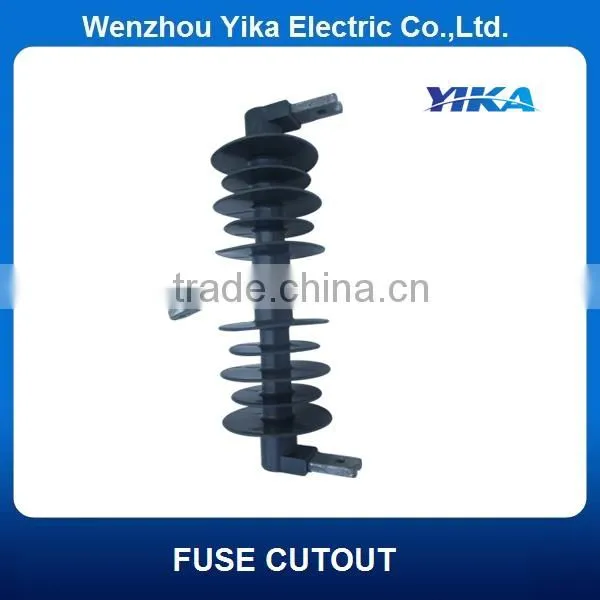

Wenzhou Yika IEC 24KV Fuse Cutout Insulator Composite

Name: Wenzhou Yika IEC 24KV Fuse Cutout Insulator Composite
Brand: YIKA
SKU: 116018767
Availability: InStock

Wenzhou Yika IEC 24KV Fuse Cutout Insulator Composite thumbnail-1

Wenzhou Yika IEC 24KV Fuse Cutout Insulator Composite photo-1

US$ 5 - 30 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

YIKA

Model Number:

HYK1-24/100, HYK1-24/200

Contact Supplier Request Quote Chat Now

Wenzhou Yika Electric Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name YIKA

Model Number HYK1-24/100, HYK1-24/200

Usage High Voltage

Breaking Capacity High

Safety Standards IEC

Specifications

The 24KV Fuse Cutout Insulator Specifications:

The Fuse Cutout are connected with the incoming feeder of the distribution transformer or distribution lines. These are primary used to protect transformers or lines from short circuits and overloads and switching currents. The drop out fuse unit is composed of insulator supports and a fuse tube, static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube. The interior of the fuse tube is the extinguishing tube, the exterior is made of phenolic compound paper tube or epoxy glass.

Model	Rated Voltage (KV)	Rated Current (A)	Breaking current (A)	BIL (KV)	power frequency withstand voltage(KV)	creepage distance (mm)	weight (kgs)	dimension (cm)
HYK1	20-27	100	10,000	150	65	540	5.0	513416
HYK1	20-27	200	12,000	150	65	540	5.0	513416

Advantages

1. Professional Manufacturer
2. Standards: ANSI, IEC, BS, DIN
3. A wide range of low and high voltage electrical products:

Fuse Cutout	Lightning Arrester	Composite Insulator	Glass Insulator
Porcelain Insulator	Epoxy Insulator	Fuses	Disconnector Switch
Circuit Breaker	Ring Main Unit	Insulated Sheath	Terminals

4. Factory Direct Price

5. Enough ability to meet buyers fresh designed items.

Trade Terms

1. Payment : Irrevocable L/C at sight or TT

2. Delivery time and method: Usually within 30 days

3. Port of loading: NINGBO, SHANGHAI, FUZHOU (CHINA)

4. MOQ: 100PCS

5. Package: Standard export packing or as per your requirement.

Warranty

OEM/ODM can be acceptable by us. We will open a mould as per your sample.

After-Sales Service

If you discovers defects in workmanship and /or material and so notifies us promptly in writing. we shall with all reasonable speed remedy such defects of non-conformance to the specifications at our expense by replacement at the option of you.
