Home > Electrical & Electronics > Breaker & Protector > Fuse > 24KV Polymer Fuse Cutout Insulator Pole Mounted Fuse Switch Disconnector Ningbo

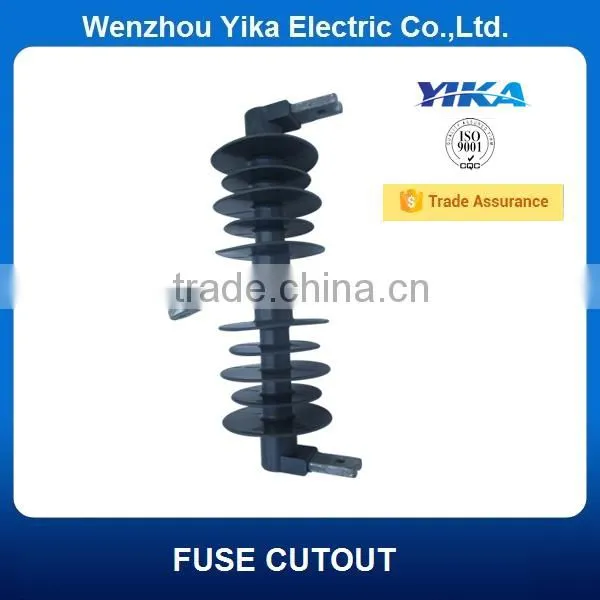

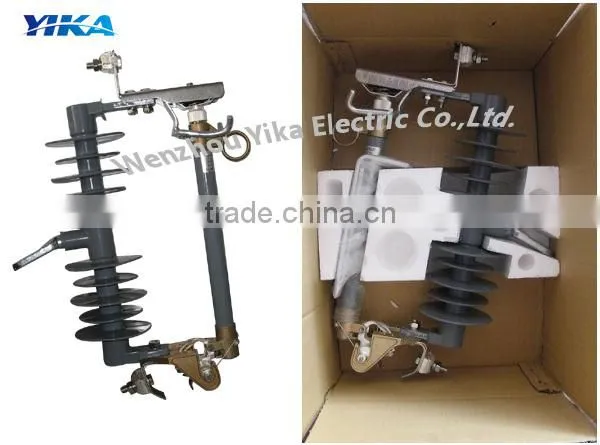

24KV Polymer Fuse Cutout Insulator Pole Mounted Fuse Switch Disconnector Ningbo
US$ 5 - 15
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YIKA
Model Number:
HYK1-24/100, HYK1-24/200
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Metal Oxide Blocks For Lightning Arrester Metal Oxide Varistors NingboUS$ 0.5 - 5MOQ: 10 Pieces -
Lightning Arrestor Discharge Counter Arrestor CounterUS$ 10 - 20MOQ: 3 Pieces
-
Metal Oxide Varistor For Lightning Arrester Varistor Surge ArrestersUS$ 0.5 - 5MOQ: 10 Pieces
-
Wenzhou Yika Lightning Arrester Discharging Counter JS-8 Lightning CounterUS$ 10 - 20MOQ: 3 Pieces
-
Wenzhou Yika High Power Varistor Zinc Oxide Varistor DiscUS$ 0.5 - 2MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
YIKA
Model Number
HYK1-24/100, HYK1-24/200
Usage
High Voltage
Breaking Capacity
High
Safety Standards
IEC
Polymer Fuse Cutout Insulator Pole Mounted Fuse Switch Disconnector Ningbo
Specifications
Specifications:
The Fuse Cutout are connected with the incoming feeder of the distribution transformer or distribution lines. These are primary used to protect transformers or lines from short circuits and overloads and switching currents. The drop out fuse unit is composed of insulator supports and a fuse tube, static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube. The interior of the fuse tube is the extinguishing tube, the exterior is made of phenolic compound paper tube or epoxy glass.
| Model |
Rated Voltage (KV) |
Rated Current (A) |
Breaking current (A) |
BIL (KV) |
power frequency withstand voltage(KV) |
creepage distance (mm) |
weight (kgs) |
dimension (cm) |
| HYK1 | 20-27 | 100 | 10,000 | 150 | 65 | 540 | 5.0 | 51*34*16 |
| HYK1 | 20-27 | 200 | 12,000 | 150 | 65 | 540 | 5.0 | 51*34*16 |
