MIni industrial 0.45mm short stroke ip65 usb metal keyboard with trackball

Dimension:255.0mm x 105.0mm (L x W )

APPLICATION:

This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

MAIN FEATURE:

Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

Waterproof execution according to IP65 protection from top panel, top stainless steel plate with flat keyboard surface for easy cleaning & rear aluminium plate with mounting holes for tightly fixing to enclosure or panel.

An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation

Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.

Complete electronic modules including controller in close consultation with our customers are available.

PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.

ELECTRICAL DATA:

Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
EMC Standard:  It is compliance with the council EMC directive 89/336/EEC
EN55022: 1988+A1:2000+A2:2003
EN55024: 1988+A1:2001+A2:2003
Emission: EN 50081-1
Immunity: EN 50082-1
Lifespan > 5 years
Switch Contact Material: metal dome PCB with Gold-on-Gold key switch technology
Interface: PS2, USB available.
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY:

Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY:

RoHS Compliant, CE and FCC, ESD
Protection Level: IP65(front panel)
Vandal resistant IK10
Key Lifespan >5 million actuations
MTBF >50000H
MTTR <30min

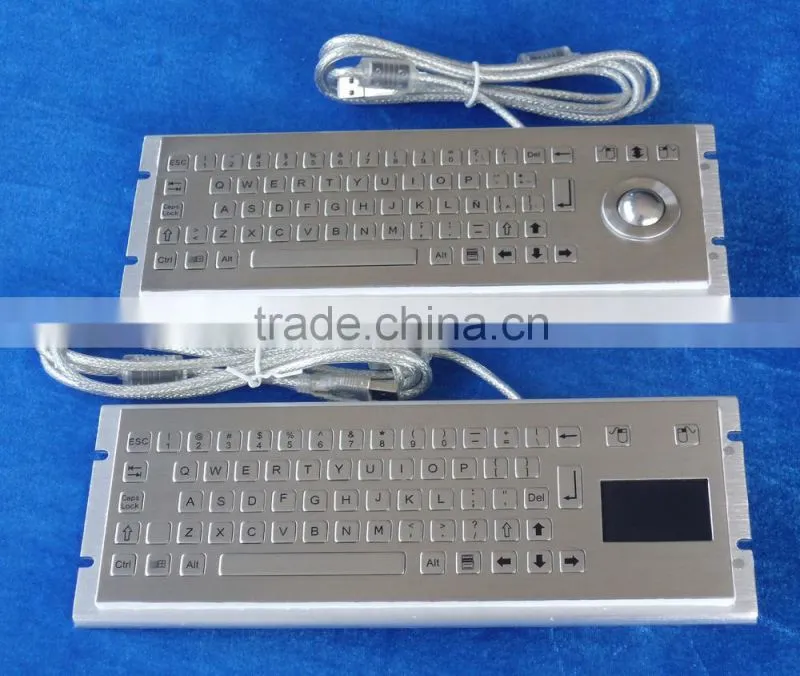

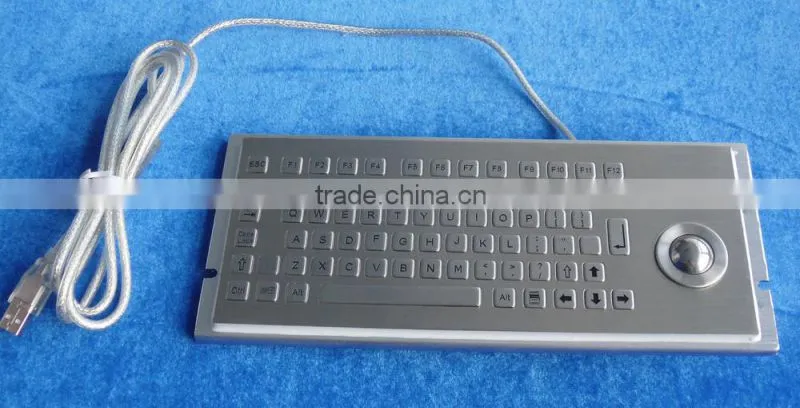

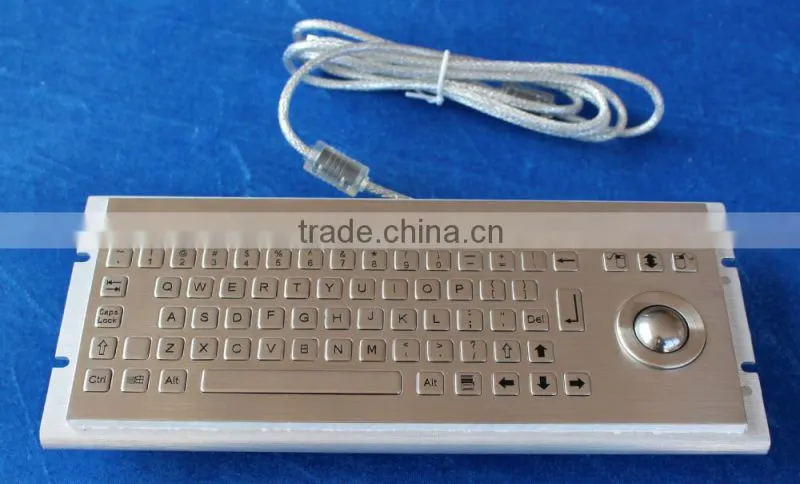

Actual Photos:
