Home > Computer Products > Keyboard > Mechanical Keyboard > Vandal Proof Touchpad Keyboard With Excellent Tactile Feeling

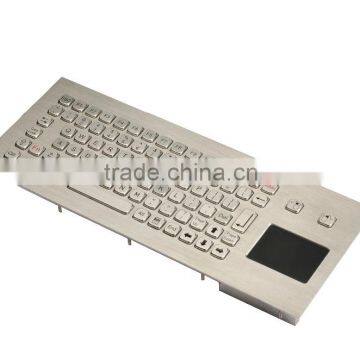

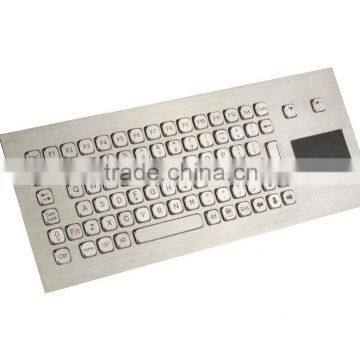

Vandal Proof Touchpad Keyboard With Excellent Tactile Feeling

Name: Vandal Proof Touchpad Keyboard With Excellent Tactile Feeling
Brand: Key-Tek
SKU: 116016495
Availability: InStock

Key Technology (China) Limited

Vandal Proof Touchpad Keyboard With Excellent Tactile Feeling thumbnail-1

Vandal Proof Touchpad Keyboard With Excellent Tactile Feeling thumbnail-2

Vandal Proof Touchpad Keyboard With Excellent Tactile Feeling thumbnail-3

Vandal Proof Touchpad Keyboard With Excellent Tactile Feeling photo-1

Vandal Proof Touchpad Keyboard With Excellent Tactile Feeling photo-2

Vandal Proof Touchpad Keyboard With Excellent Tactile Feeling photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Products Status:

Stock

Application:

Other, Front panel industrial keybroad

Type:

Wired

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen HongKong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Products Status Stock

Application Other, Front panel industrial keybroad

Type Wired

Style Multimedia, Standard

Interface Type PS/2, USB

Brand Name Key-Tek

Model Number K-TEK-A361-TP-TN

Place of Origin Guangdong, China

Product Description

MODEL NO.: K-TEK-A361TP-FN

DESCRIPTION:

80 keys compact format IP65 static vandal proof stainless steel industrial keyboard with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, function keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, one complete silicone rubber sealing gasket along the top stainless steel plate for easy and tight sealing with cabinet, stainless steel top plate with threaded bolts for top panel mounting solution.

DIMENSIONS: 361.0mm x 145.0mm (top panel)

APPLICATION

This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

MAIN FEATURE

Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Waterproof execution according to IP65 protection from top panel, top stainless steel plate with threaded bolts for easy tightly mounting to enclosure or panel.
An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Complete electronic modules including controller in close consultation with our customers are available.
PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.

MECHANICAL DATA

Actuator/keys:80 keys, super quality SUS304 brushed stainless steel
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.
Key travel: 2.0mm
Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life: more than 10 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate:3.0mm thickness brushed & oxidized aluminium
Touchpad: sealed and ruggedized tough touchpad.

Touchpad cover: Composite
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5 VDC ±0.25V
Current rating (active mode): 17 mA

G.W.: 1.80KGs
Dimensions: 361.0mm x 145.0mm (front panel) , 343.0mm x 125.0mm (back panel)

ELECTRICAL DATA
