MODEL NO.: K-TEK-A120KP
DIMENSIONS: 120.0mm x 98.0mm (top panel)

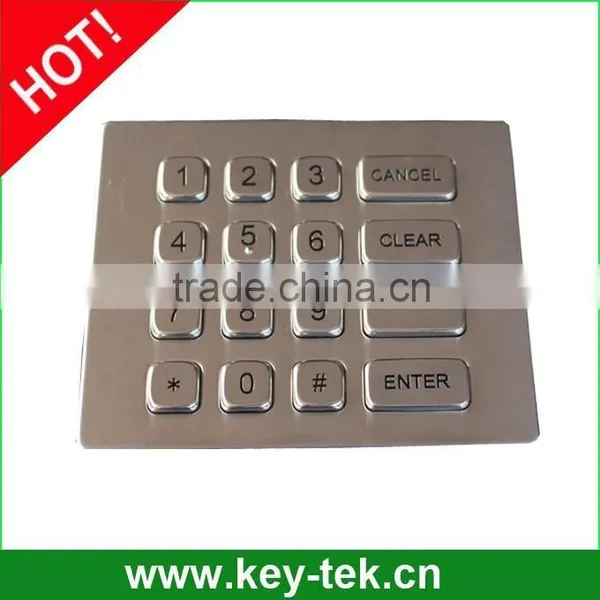

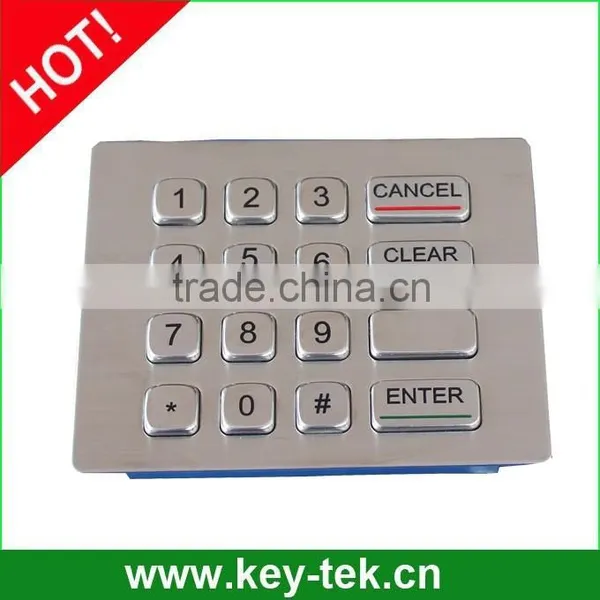

DESCRIPTION:16 keys compact format vandal proof IP65 dynamic Stainless Steel numeric keypad with industrial PCB electronics controller shieded & protected by stainless steel housing, carbon-on-carbon key switch technology with long stroke 2.0mm with tactile feeling for fast and accurate data input, top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel,with threaded bolts for top panel mounting solution.
APPLICATION
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access
applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports,
railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM),
Internet public phones etc.
MAIN FEATURE
Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to
design, functionality, longevity and high protection level.
Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof
especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Waterproof execution according to IP65 protection from top panel, top stainless steel plate with threaded
bolts and sealing gasket for easy tightly mounting to enclosure or panel.
An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data
input without any noise. With firm tactile perception for comfortable operation
key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering
rub-off.
Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced
removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Complete electronic modules including controller in close consultation with our customers are available.
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 20mA
EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024:2010
Emission: EN 50081-1
Immunity: EN 50082-1
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB, RS232, RS485 available
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Unix, Mac OSX
COMMUNICATION PARAMETER
PS2/USB:
Standard PS2/USB keyboard interface.16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code
RS232:
Standard RS232 serial interface.
Communication velocity: 9600bps.
Data format: N, 8, 1.
16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code.
MECHANICAL DATA
Front plate: Super quality SUS304 brushed stainless steel
Back plate: Super quality SUS304 stainless steel
Actuator/Key: 16 keys, super quality SUS304 brushed stainless steel
Key top style: protuberant rectangular keys, with laser engraved and etched legends and raised dots
available.
Key size: 14.0mm x 14.0mm for normal key, 14.0mm x 28.0mm for function keys
Switching material: Carbon-on-Gold.
Actuation Force: 0.6N +/-0.1N (pressure point), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Key Travel: 2.0mm.
Key life: 10 million of operation
Dimensions: 120.0mm x 98.0mm.
G.W. 0.80KGs.
ENVIRONMENTAL ADAPTABILITY:
Operating temperature:-20oC to +60oC
Storage temperature: -30 C to +70 C
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP65(front panel)
Vandal resistant IK09
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
