Outdoor Panel Mount Metal Illuminated Numeric 4x3 Keypad

Outdoor Panel Mount Metal Illuminated Numeric 4x3 Keypad thumbnail-1
Outdoor Panel Mount Metal Illuminated Numeric 4x3 Keypad thumbnail-2
Outdoor Panel Mount Metal Illuminated Numeric 4x3 Keypad photo-1
Outdoor Panel Mount Metal Illuminated Numeric 4x3 Keypad photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HI-KEY,KEY-TEK
Model Number:
K-TEK-A88KP-BL
Contact Supplier Request Quote Chat Now
Key Technology (China) Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen and HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HI-KEY,KEY-TEK
Model Number K-TEK-A88KP-BL
Application Other, computer keyboard
Keypad Button Material Other, metal

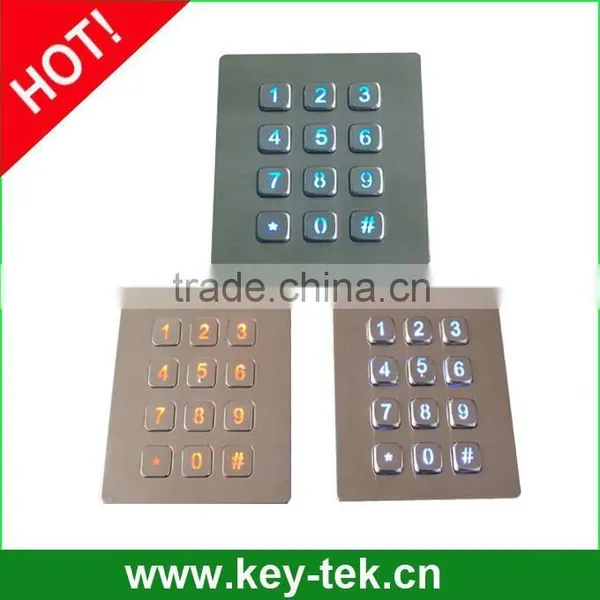

  Outdoor panel mount metal illuminated numeric 4x3 keypad

DESCRIPTION:12 keys vandal proof IP65 stainless steel keypad with electronics controller protected by metal bottom cover, with carbon-on-gold key switch technology for fast and accurate data input, top panel mounting.



DIMENSIONS:88.0mm x 102.0mm (top panel)



MAIN FEATURE

  • Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.
  • key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off.
  • With carbon-on-gold key contact with long stroke 2.0mm, with unique double over-travel protection.
  • Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof .
  • Easily mounting into enclosure or panel, and is provided with PS/2, or USB, RS232, connection output cables that plug directly into the host computer for normal keypad operations.
  • OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX

COMMUNICATION PARAMETER


  • USB, PS2 or RS232 are all available.
  •  12 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. Any keys can be re-defined per customers' requirements.
MECHANICAL DATA
  • Switching material: Carbon-on-Gold.
  • Actuation Force: 0.6N +/-0.1N (pressure point).
  • Key Travel: 2.0mm.
  • Lettering: laser engraving, or raised letters.
  • Front panel: brushed stainless steel.
  • Actuator/keys materials: stainless steel.
  • G.W. 0.9KGs.
  • Dimensions: 88.0mm x 102.0mm.

ELECTRICAL DATA


  • Communication interface: PS2, USB or RS232 are all available.
  • EMC:EN55022(B).
  •  Electrical lifetime: > 5 years.
  •  Power Consumption: Under 300mW for operation, under 200mW for non-operation.
  • Power supply voltage: 5V DC.

ENVIRONMENTAL ADAPTABILITY

  • Operating temperature:-20oC to +60oC
  • Storage temperature: -30oC to +70oC
  • Operating RH: 30-90%
  • Atmospheric pressure: 60-106Kpa.
  • Saline mist: 96 hours, IEC 60512-6
  • Damp heat test at + 40oC: 21 days, IEC 60512-6
  • Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY

  • RoHS Compliant, CE and FCC, ESD
  • Protection Level: IP65(front panel)
  • Vandal resistant IK10
  • Key Lifespan >10 million actuations
  • MTBF >50000H
  • MTTR <30min

·
