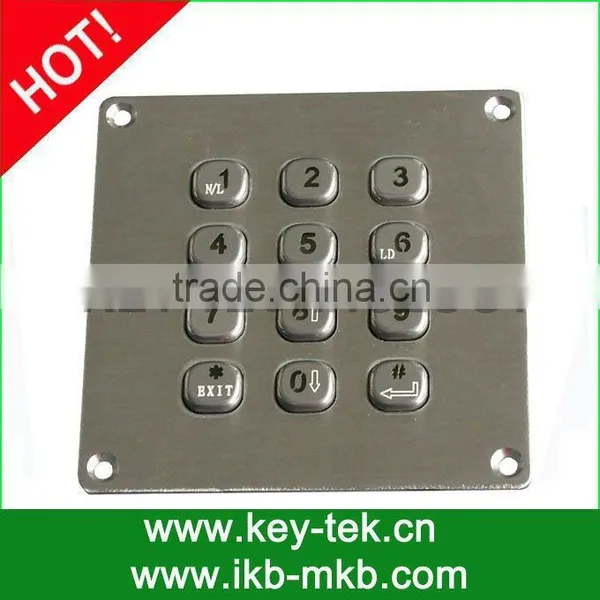

MAIN FEATURE
For working in low-light areas, it is also available with optional LED backlighting.
Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.
Internet friendly key layout, key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off.
With firm tactile key feel, full long carbon-on-gold key switchess, with unique double over-travel protection.
Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.
Easily mounting into enclosure or panel, connection output cables that plug directly into the host computer for normal keypad operations.
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac OSX
COMMUNICATION PARAMETER
Standard PC/AT keyboard interface.
11mm x 10mm slim key with compact keypad layout.
12 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, *, #, 4 x 3 scanning code. Any keys can be re-defined per customers’ requirements.
MECHANICAL DATA
Switch Contact Material: Carbon-on-Gold key switch technology with gold finish PCB.
Actuation Force: 0.5 N+/-0.1N for key 11.0mm x 10.0mm (pressure point)
Key Travel: 2.0 mm
Lettering: laser engraving, or raised letters.
Front panel: brushed stainless steel
Actuator/keys materials: stainless steel
Dimensions: 83.0mm x 83.0mm (Front Panel)
G.W. 0.3KGs
ELECTRICAL DATA
Power supply voltage: 5V DC.
Power Consumption: Under 300mW for operation, under 200mW for non-operation
Electrical lifetime: > 5 years
EMC:EN55022(B)
Communication interface:PS2, USB or RS232 are all available.
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20°C to +60°C
Storage temperature: -30°C to +70°C
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
RELIABILITY
RoHS Compliant, CE and FCC
Protection Level: IP65(front panel)
Vandal resistant IK09
Key Lifespan >10 million actuations
MTBF >50,000H
MTTR <30min
