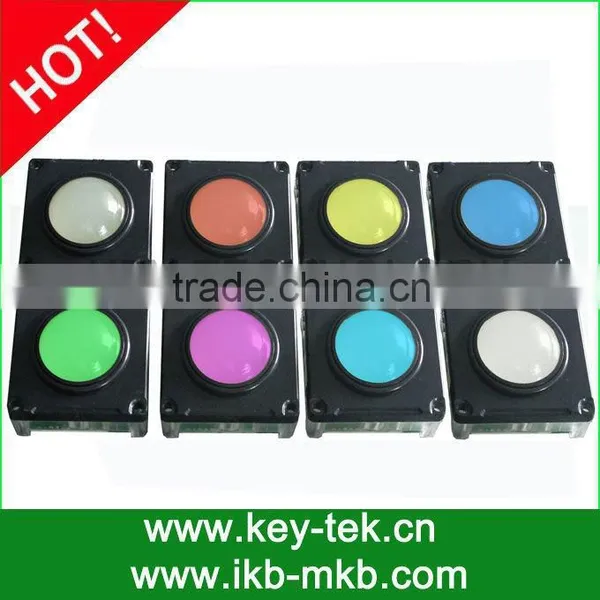

Help CenterIP65 Static Rated 38mm Mechanical Trackball Mouse With Touch Changeable Chameleon Backlight
Related Products
-
Vandal Proof IP65 Trackball MouseNegotiableMOQ: 1 Set -
Waterproof Metal Touchpad With Metal Dome Mouse ButtonsNegotiableMOQ: 1 Set
-
Top Panel Mounting Stainless Steel TouchpadNegotiableMOQ: 1 Set
-
Top Panel Mounting Metal Optical Trackball With 3 ButtonsNegotiableMOQ: 1 Set
-
2016 New 38mm Vandal Proof Stainless Steel Laser TrackballUS$ 99 - 199MOQ: 1 Piece
Dimension:60.0mm x 60.0mm (front panel)
Description:IP65 static rated 38mm Mechanical Trackball Module with touch changeable chameleon backlight, with 400 DPI resolutions.
MAIN FEATURE
Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
Available 40mm, 38mm, 25mm, 22mm, 19mm and 16mm diameter stainless steel or hard phenolic resin ball for smooth, durable operation and precise cursor positioning.
Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
TECHNICAL SPECIFICATION
ITEM |
SPECIFICATION |
|
Mechanical Data |
Ball diameter |
38mm/1.50' (19mm, 25mm, 36mm 40mm also available) |
Track ball lifespan |
> 10 Mio revolutions |
|
Actuation Force |
1.0N to 3.0N |
|
Dimension |
38 .1 mm diameter for ball, 60.0mm x 60.0mm (front panel) |
|
Interface |
PS2, USB are available, Y type cable with ports of PS2 and USB |
|
Electrical |
Power supply |
5V DC+ 10%, keyboard interface |
Protection level |
IP65 (front panel), NEMA3 |
|
EMC Standard |
EN55022(B) |
|
Power consuming |
≤1.00W(dynamic) |
|
≤0.2W(static) | ||
Environmental |
Operating temperature |
-20ºC~+ 60º C |
Storage temperature |
- 30ºC~+ 70ºC |
|
Operating RH |
30~90% |
|
Atmospheric pressure |
60~106Kpa. |
|
Reliable |
Certificates |
RoHS compliant, CE and FCC certified. ESD. |
MTBF |
>50000h |
|
MTTR |
< 30min |
|
OS |
DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Unix, Mac OSX |
|
Packing Details |
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
|
