Quick Details: 1. IP65 dynamic scratch proof industrial membrane keyboard with full keyboard functionalities. 2. Clean key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC 3. Durable and anti-microbial keyboard surface

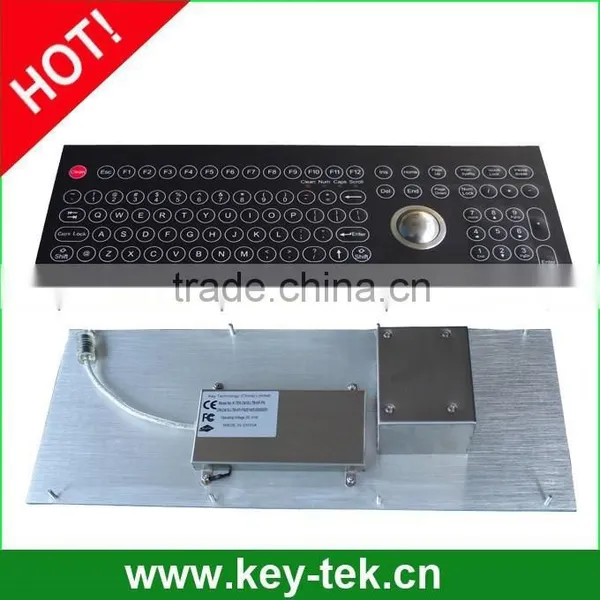

Descriptions: 1. 108 keys IP65 dynamic rated industrial membrane keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line 2. IP68 dynamic rated washable 38.0mm optical trackball module with 800 DPI resolutions for fast and accurate cursor position 3. 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with extremely tactile feeling for reliable data input 4. With Clean key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC 5. Surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments 6. Ruggedized and backed with 3.0mm alumium plate with sand blasting & oxygenation treatment 7. Top panel mounted.
Special Features: 1. Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality 2. The foil-covered aluminum front plate is mounted flush for easy cleaning. 3. The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt,grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use. 4. PS/2, USB connection cables that plug directly into computer like keyboard operations. 5. Ease of customizing with multiple languages, to accommodate foreign or custom variants. 6. This stylish, rugged medical keyboard is ideal for any application requiring a rugged enclosure and low profile. 7. Clean key -Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime
Applications: This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry. A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc; B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc C: MILITARY: Army, Navy, Air force D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses etc E: OTHER INDUSTRIES
Specifications:
MECHANICAL DATA | |
Key |
108 |
Key switch Technology |
metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys |
Actuation Force: |
1.0N for key 13.0mm x 13.0mm (press point) |
Key travel |
0.45mm |
Key switch Lifetime |
3 mil. operations |
Protection Level |
IP65, NEMA 4x |
Mounting Type |
Top panel mounting or Desk Top. |
Operating Temperature |
-20 °C to +50 °C |
Colors |
4 (Blue, White, Grey, Black) |
G.W. |
1.50KGs |
Key Dimensions (print area) |
13.0mm x 13.0mm |
Dimensions |
410.0mm x 160.0mm (front Panel) |
TRACKBALL | |
38mm stainless steel ball or hardened resin ball | |
Resolution |
800DPI |
Lifetime |
more than 10 million cycle |
Power supply voltage |
5 V DC ±0.25V |
Current rating (active mode) |
100mA |
ELECTRICAL DATA | |
Supply Voltage |
+5V DC +/-5% |
Current Rating |
appr. 120mA |
|
EMC Standard: |
It is compliance with the council IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004 |
EMI: |
EN 55022: 2010 |
EMS: |
EN 55024:2010 |
Lifespan |
> 3 years |
Interface: |
PS2, USB available. |
OS: |
All windows, Linux, Unix, Mac OSX |
RELIABILITY | |
Certification |
RoHS Compliant, CE and FCC,IP65,ESD |
Protection Level |
IP65(front panel) |
Key Lifespan |
>3 million actuations |
MTBF |
>50000H |
MTTR |
<30min |
