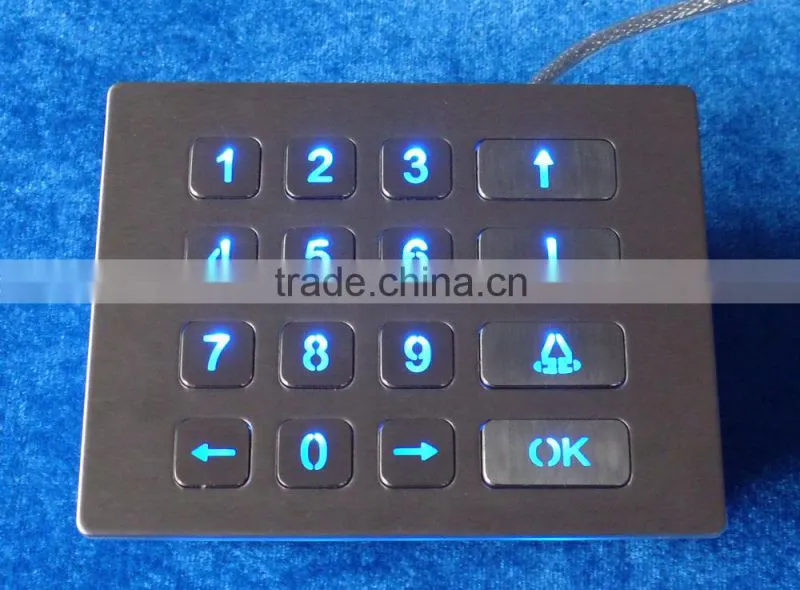

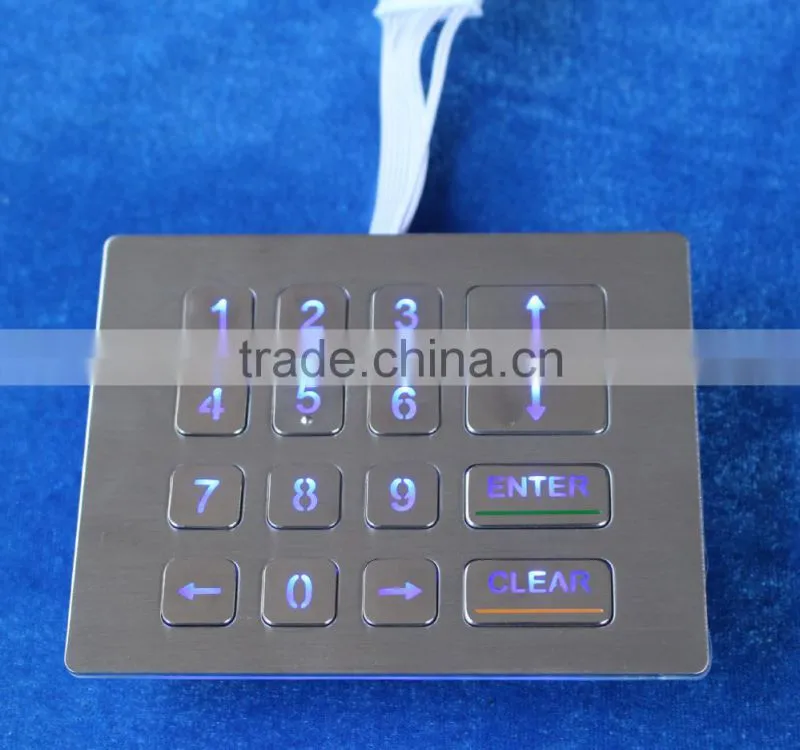

Industrial vandal proof with backlight numeric keypad

Industrial vandal proof with backlight numeric keypad

Quick Details:

1. 16 Keys Vandal proof IP65 Stainless Steel backlight keypad

2. gold-on-gold key switch

3. Red, blue, white backlight available for option.

Descriptions:

1. 16 keys IP65 dynamic compact format vandal proof Stainless Steel backlight industrial numeric keypad with industrial PCB electronics controller shelled & protected by stainless steel housing

2. industrial PCB with gold-on-gold key switch technology with short stroke 0.45mm with extremely good tactile feeling for fast and accurate data input without any noise

3. Top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel

4. threaded bolts under top stainless steel plate for top panel mounting solution.

Special Features:

1. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

2. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

3. Waterproof execution according to IP65 protection from top panel, top stainless steel plate with threaded bolts and sealing gasket for easy tightly mounting to enclosure or panel.

4. An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation

key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.

5. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.

6. Ease of customizing with multiple languages, to accommodate foreign or custom variants.

7. Complete electronic modules including controller in close consultation with our customers are available. OS:

8. OS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win 7, Linux, Unix, Mac OSX

Applications:

This durable and black Keyboard is mainly targeted for use for:

A: unsupervised or semi -supervised positions of varied access applications,

B: internet terminals and information kiosks at universities,

C: shopping malls, hotels, airports, railway stations and other public areas,

D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Specifications:

ELECTRICAL DATA:

Supply Voltage: +5V DC +/-5%

Current Rating: appr. 20mA

EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004

EMI: EN 55022: 2010

EMS: EN 55024:2010

Lifespan > 5 years

Switch Contact Material: Carbon-on-Gold key switch technology PCB.

Interface: PS2, USB, RS232, RS485 available

OS: All windows, Linux, Unix, Mac OSX

COMMUNICATION PARAMETER:

PS2/USB:

Standard PS2/USB keyboard interface.

16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code

RS232:

Standard RS232 serial interface.

Communication velocity: 9600bps.

Data format: N, 8, 1.

16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code.

MECHANICAL DATA:

Actuator/keys: 16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.

Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for function keys

Key travel: 0.45mm

Actuation Force: 2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for

key 14.0mm x 28.0mm (pressure point)

Switch life: more than 5 million of operations.

Front Plate: 1.5mm thickness super quality brushed stainless steel

Back Stainless steel housing: 1.0mm thickness super quality stainless steel

G.W.: 0.80KGs

Dimensions: 120.0mm x 98.0mm (L x W )
