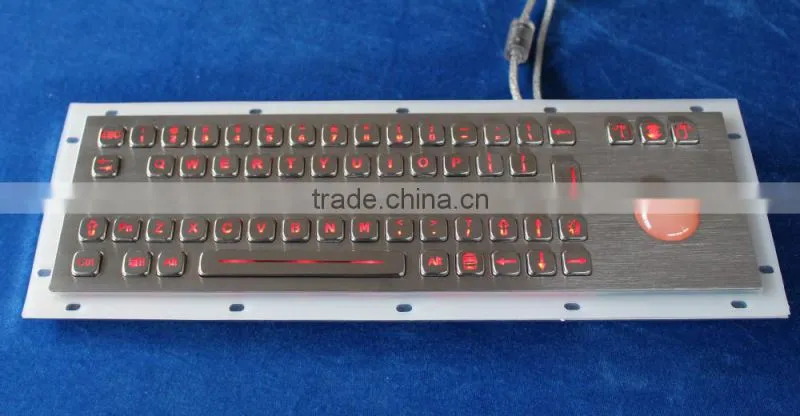

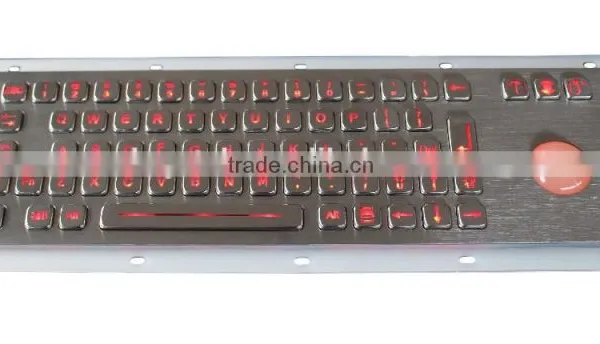

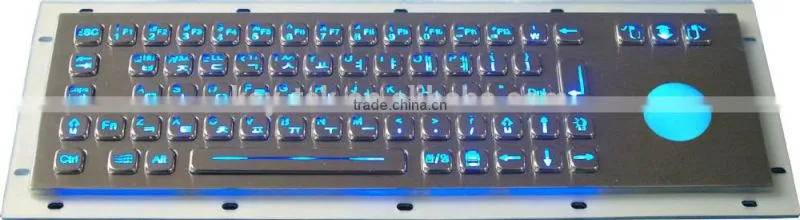

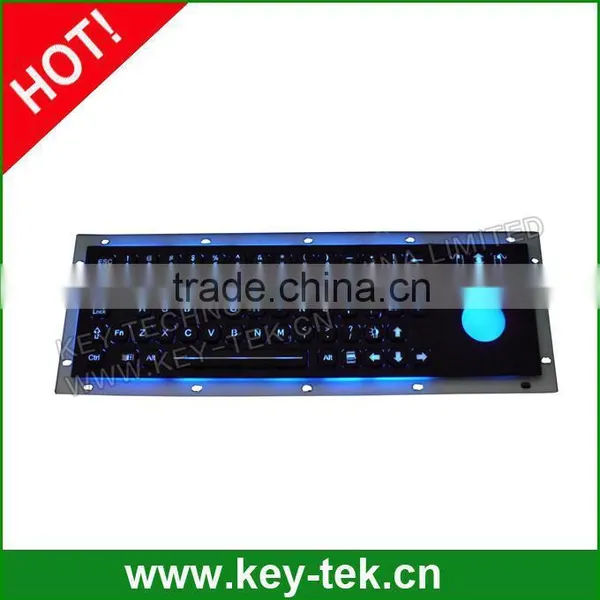

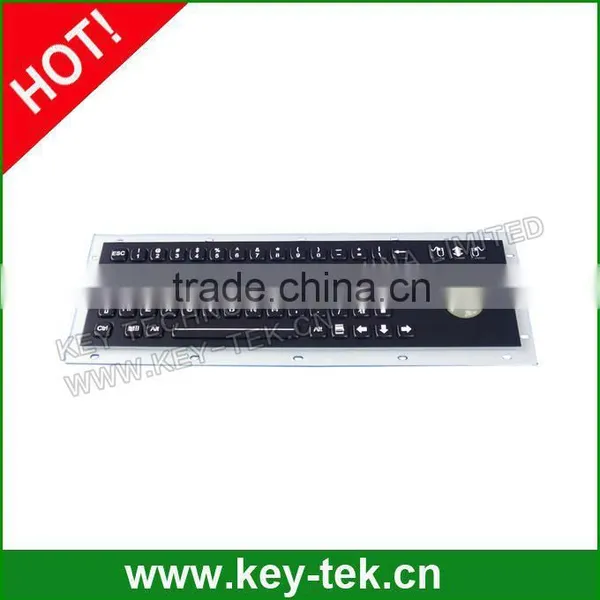

66 keys compact format vandal proof IP65 stainless steel industrial illuminated laptop keyboard

Part number:  K-TEK-A343-CTB-BL

66 keys compact format vandal proof IP65 stainless steel industrial backlight keyboard with IP65 static rated 38mm Mechanical Trackball with touch changeable chameleon backlight, with 400 DPI resolutions, carbon-on-gold key switch technology with long stroke (2.0mm) for fast and accurate data input, rear aluminium panel mounting with mounting holes.

APPLICATION

This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

MAIN FEATURE

Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Waterproof execution according to IP65 protection from top panel, rear aluminium plate with mounting holes easily & tightly mounting to enclosure or panel.
An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Complete electronic modules including controller in close consultation with our customers are available.
PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.

MECHANICAL DATA

Actuator/keys: 66 keys, super quality SUS304 brushed stainless steel
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.
Key travel: 2.0mm
Actuation Force:  0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life: more than 10 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate:3.0mm thickness brushed & oxidized aluminium
Tracker ball: 38.1mm (1.5’) diameter, IP65 static 400DPI mechanical trackball, IP68 dynamic washable 800DPI optical trackball, IP65 dynamic 1200DPI laser trackball are all available.
G.W.:1.70KGs
Dimensions: 343.0mm x 105.0mm (front panel) , 367.0mm x 129.0mm (back panel)

ELECTRICAL DATA

Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
EMC Standard:  It is compliance with the council EMC directive 89/336/EEC
EN55022: 1988+A1:2000+A2:2003
EN55024: 1988+A1:2001+A2:2003
Emission: EN 50081-1
Immunity: EN 50082-1
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC, ESD
Protection Level: IP65(front panel)
Vandal resistant IK09
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
