Home > Computer Products > Keyboard > Mechanical Keyboard > Vandal Proof Industrial Public Media Center Keyboard

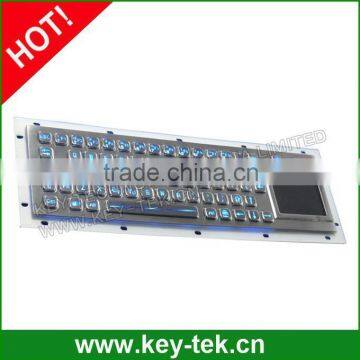

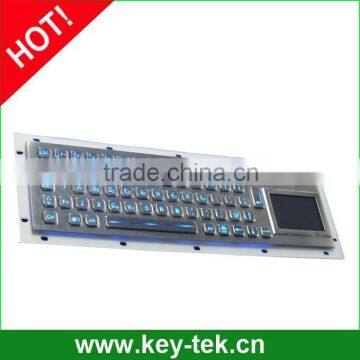

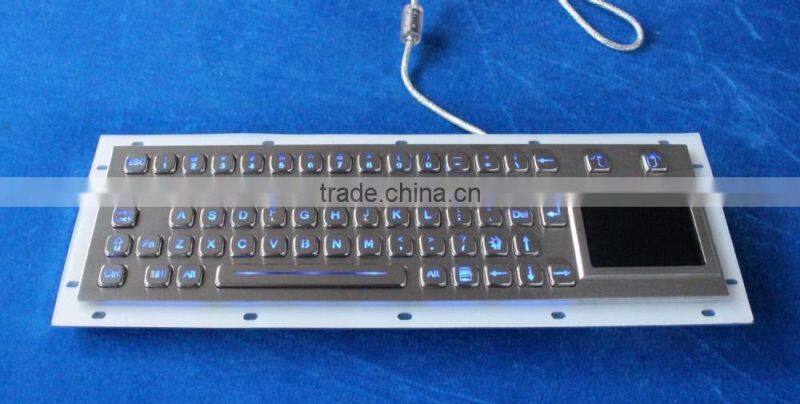

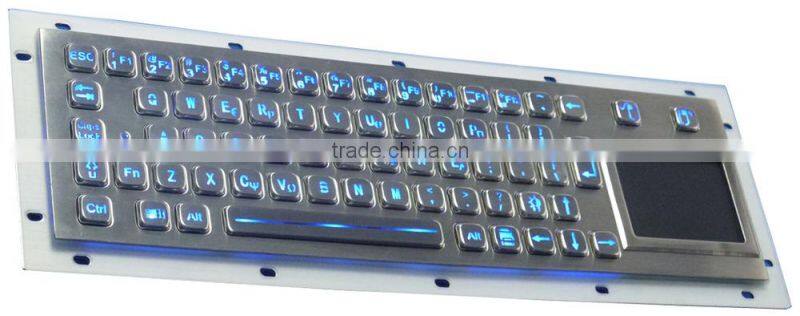

Vandal Proof Industrial Public Media Center Keyboard

Name: Vandal Proof Industrial Public Media Center Keyboard
Brand: IKB-MKB
SKU: 116007955
Availability: InStock

Vandal Proof Industrial Public Media Center Keyboard thumbnail-1

Vandal Proof Industrial Public Media Center Keyboard thumbnail-2

Vandal Proof Industrial Public Media Center Keyboard thumbnail-3

Vandal Proof Industrial Public Media Center Keyboard photo-1

Vandal Proof Industrial Public Media Center Keyboard photo-2

Vandal Proof Industrial Public Media Center Keyboard photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Products Status:

Stock

Application:

Other, Rear panel mount with mounting holes

Type:

Wired

Contact Supplier Request Quote Chat Now

Key Technology (China) Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Products Status Stock

Application Other, Rear panel mount with mounting holes

Type Wired

Style Standard

Interface Type PS/2, USB

Brand Name IKB-MKB

Model Number K-TEK-A343TP-BL

Place of Origin Guangdong, China

Quick Details:

1. IP65 dynamic vandal proof stainless steel industrial kiosk touchpad keyboard

2. IP65 dynamic sealed & ruggedized tough touchpad

3. RoHS,CE,FCC,IP65, ESD

Descriptions: 1. 68 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard 2. with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position 3. one compete silicone rubber along mounting aluminum plate for easy mounting & sealing tightly with cabinet 4. industrial PCB with carbon-on-gold key switch technology with long stroke 2.0mm with extremely good tactile feeling for fast and accurate input without any noise 5. rear panel mounting solution 6. with adjustable industrial backlight included (Red or Blue color optional).

Applications: This Keyboard is mainly targeted for use for: A: unsupervised or semi -supervised positions of varied access applications, B: internet terminals and information kiosks at universities, C: shopping malls, hotels, airports, railway stations and other public areas, D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Specifications:

MECHANICAL DATA
Key	68 keys, super quality brushed stainless steel
Key top style	Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
Key Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100mm for space bar.
Key travel	2.0mm
Switch life	more than 10 million of operations
Actuation Force	0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point) 1.2N +/-0.1N for key 14.0mm x 28.0mm (pressure point)
Front Plate	1.5mm thickness super quality brushed stainless steel
Back Plate	3.0mm thickness brushed & oxidized aluminium
G.W.	1.60KGs
Dimensions	343.0mm x 105.0mm (front panel) , 367.0mm x 129.0mm (back panel)

TOUCHPAD
Touchpad cover	Composite
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution	40 counts/mm
X/Y position reporting	Relative
Output (self-detectable depending on cable)	PS2 or USB
Tracking speed	Maximum 1,016 m/sec
Power supply voltage	5 V DC ±0.25V
Current rating (active mode)	17 mA

ELECTRICAL DATA
Supply Voltage	+5V DC +/-5%
Current Rating	appr. 20mA
EMC Standard:	It is compliance with the council IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004
EMI:	EN 55022: 2010
EMS:	EN 55024:2010
Lifespan	> 5 years
Switch Contact Material:	Carbon-on-Gold key switch technology PCB.
Interface:	PS2, USB available.
OS:	All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20oC to +60oC
Storage temperature	-30oC to +70oC
Operating RH	30-90%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at + 40oC	21 days, IEC 60512-6
Dry heat test at + 85oC	10 days, IEC 60512-6

RELIABILITY
Certification	RoHS Compliant, CE and FCC,IP65,ESD
Protection Level	IP65(front panel)
Vandal resistant	IK09
Key Lifespan	>10 million actuations
MTBF	>50000H
MTTR	<30min
