Engine:German Deutz
Oil Pump:German Rexroth
Control System:Janpan Mitsubishi PLC
CE,ISO
Haomei Machinery Equipment Co.,Ltd. have produced trailer concrete pump for 10 years,is one professional supplier of concrete machinery in China
Types of HAOMEI trailer concrete pump as followings:
1,Diesel trailer concrete pump
2,Electric trailer concrete pump
3,Foam concrete pump
4,Mini trailer concrete pump
5,Lightweight trailer concrete pump
6,Mortar pump
7,Shorcrete machine
1,Power system of trailer concrete pump
Main hydraulic pumps are famous German REXROTH products.
Engine:German Deutz
2,Electric control system of trailer concrete pump
The reversing control is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact. The main oil pump is under the famous brand of Kawasaki from Japan.
Main electric elements are imported original Schneider, OMRON, Siemens, LG, etc.
3,Hydraulic system of trailer concrete pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
4,Pumping system of trailer concrete pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.
5.Lubrication system of trailer concrete pump
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston.

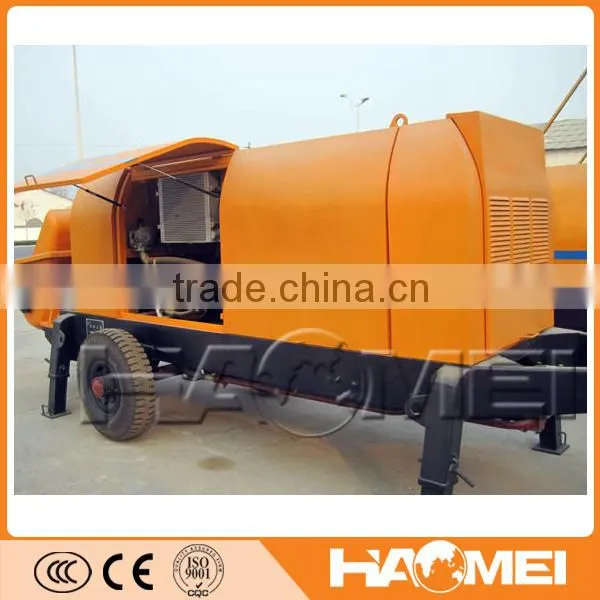

Main configuration of Trailer-concrete pump HBT100S2116-181R
Pump trailer model |
unit |
HBT100S2116-181R |
|
Pumping displacement in theory |
High pressure |
m3/h |
57.5 |
Low pressure |
m3/h |
105 |
|
Mpa Outlet pressure |
High pressure |
MPa |
15.68 |
Low pressure |
MPa |
7.68 |
|
Max.transport distance |
150mm pipe |
m |
Horizontal 1200 Vertical 280 |
125mm pipe |
m |
Horizontal 1400 Vertical 300 |
|
Concrete cylinder diameterxstroke |
mm |
200×2100 |
|
Electric machine(diesel engine)power |
kw |
181 |
|
Outer size |
mm |
6815×2045×2490 |
|
Main machine weight |
kg |
7500 |
|
1. Rapid response to any inquiry.
2. Competitive price.
3. Professional inspection department to guarantee quality
4. Factory visit is welcomed and free booking hotel and airport pick up service.
5. Engineers will go to clients’ site for guiding the installation and test-running;
6. Spare parts supply,We will keep your know the complete data, when you need any spare parts, we will send to you quickly.
7. 15 months super long time guarantee period.
8. Customer-tailor is received
Haomei Machinery Equipment Co., Ltd. is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality mobile concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS"to cooperate with clients from all over the world.Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches. We have over 1000 technical workers and 80 engineers equipped with advanced producing and inspecting machines with strict management.
Clients Visit
here is our bsiness card, please check and contact us at any time
Haomei contact information :
