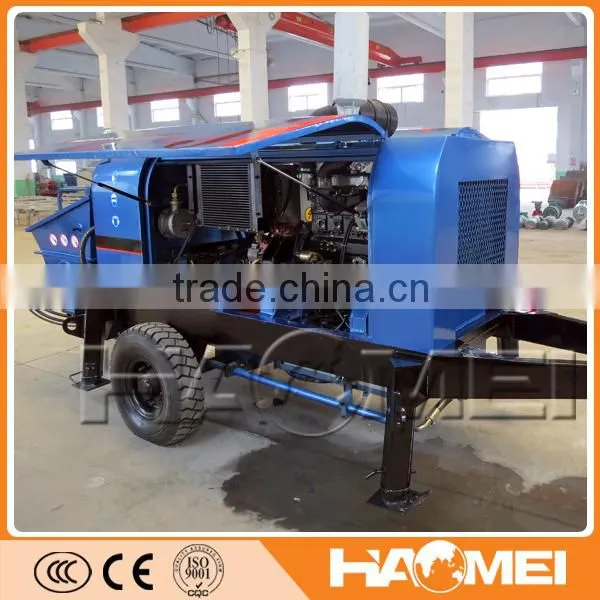

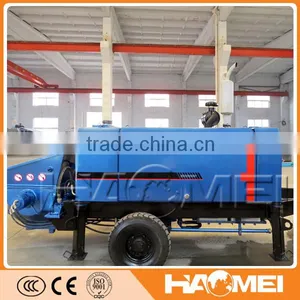

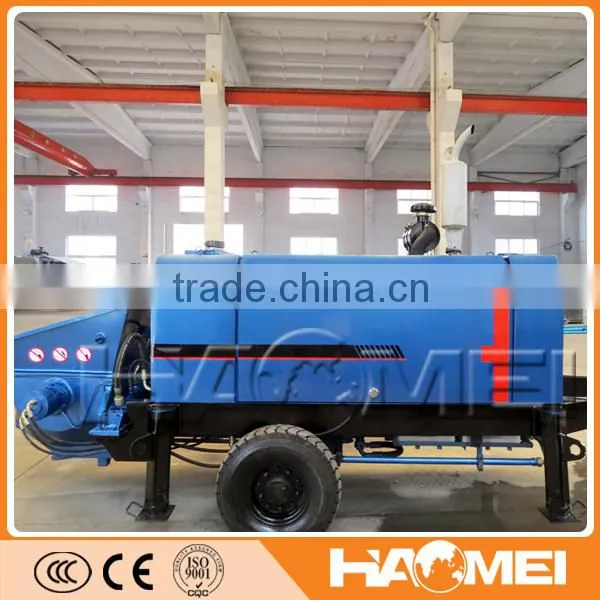

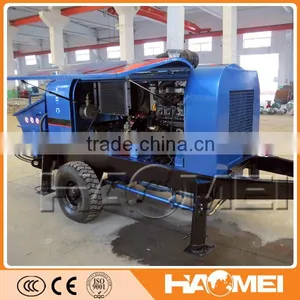

HBT90S1821-200 Concrete Mixing Pump with Good Price:
Haomei Machinery Equipment Co.,Ltd. have produced Concrete Trailer Pumps for 10 years,is one professional supplier of concrete machinery in China

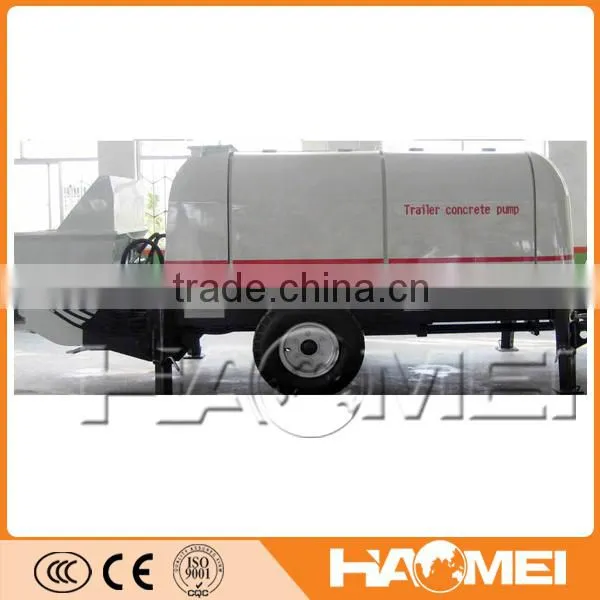

Types of HAOMEI trailer concrete pump as followings:
1,Diesel trailer concrete pump
2,Electric trailer concrete pump
3,Foam concrete pump
4,Mini trailer concrete pump
5,Lightweight trailer concrete pump
6,Mortar pump
7,Shorcrete machine

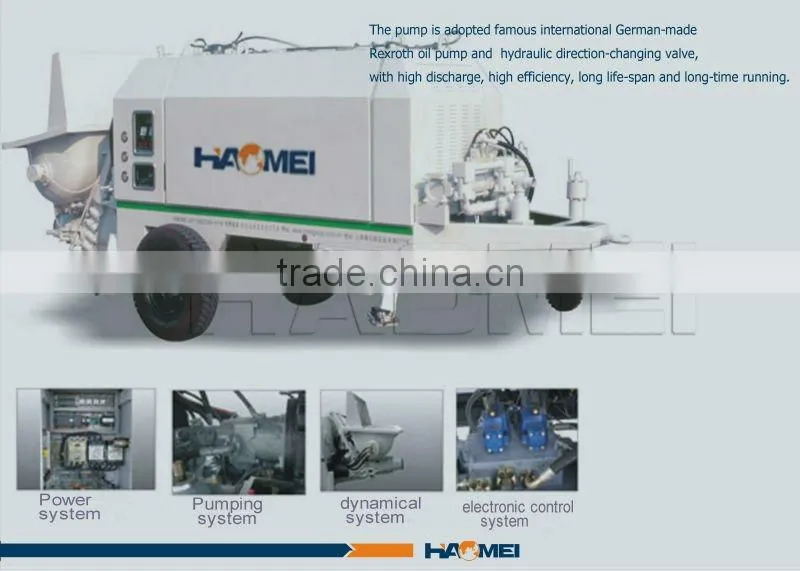

1,Power system of Concrete Mixing Pump
Main hydraulic pumps are famous German REXROTH products.
Engine:German Deutz
2,Electric control system of Concrete Mixing Pump
The reversing control is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact. The main oil pump is under the famous brand of Kawasaki from Japan.
Main electric elements are imported original Schneider, OMRON, Siemens, LG, etc.
3,Hydraulic system of Concrete Mixing Pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
4,Pumping system of Concrete Mixing Pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.
5.Lubrication system of Concrete Mixing Pump
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston.
Main configuration of Concrete Mixing Pump HBT90S1821-200
Item |
Unit or model |
parameter |
|
model |
|
Single movement level in hydraulic piston |
|
concrete distributing valve |
|
"S"pipe valve |
|
Outlet pressure in theory |
High-pressure small-engine |
MPa |
16 |
|
low-pressure large-displacement |
9.5 |
||
|
Outlet capacity in theory
|
High-pressure small-engine |
m3/h |
44 |
|
low-pressure large-displacement |
72 |
||
|
Max transportation distance in theory |
150mmpipe |
m |
Level 1300 or vertical 270 |
125mmpipe |
m |
Level 1200 or vertical 250 |
|
Max. aggregate size |
150mmpipe |
mm |
50 |
125mmpipe |
mm |
40 |
|
conveying cylinder diameter ×Max route |
mm |
φ200×1800 |
|
bucket capacity×feeding height |
m3/mm |
0.7/1320 |
|
main motor |
Y2-315S-4 |
Rate power 110KW |
|
260main oil pump |
A11VL0190 |
Max flowing ability 275L/min |
|
secondary motor |
Y2-280M-4 |
Rated power 90KW |
|
secondary oil pump 260 |
A11V0260 |
Max. flowing ability 275L/min |
|
hydraulic oil tank capacity/diesel tank capacity |
L |
860 |
|
hydraulic oil |
|
Great wall Brand AW46 # anti-wear hydraulic oil |
|
tread |
mm |
2050 |
|
power supply voltage/Frequency |
V/Hz |
380/50 |
|
outside dimension: LWH |
Mm |
6680×2295×2255 |
|
largest towing speed |
Km/h |
second road≤15 third road ≤8 |
|
total quality |
kg |
6500 |
|
