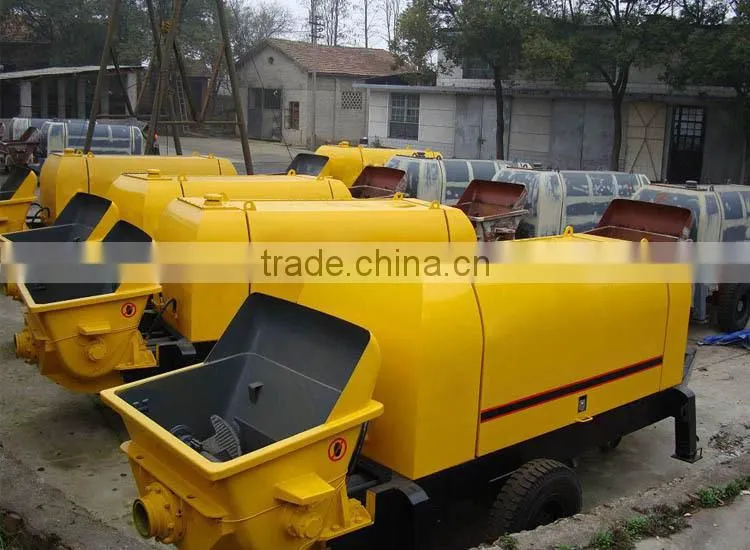

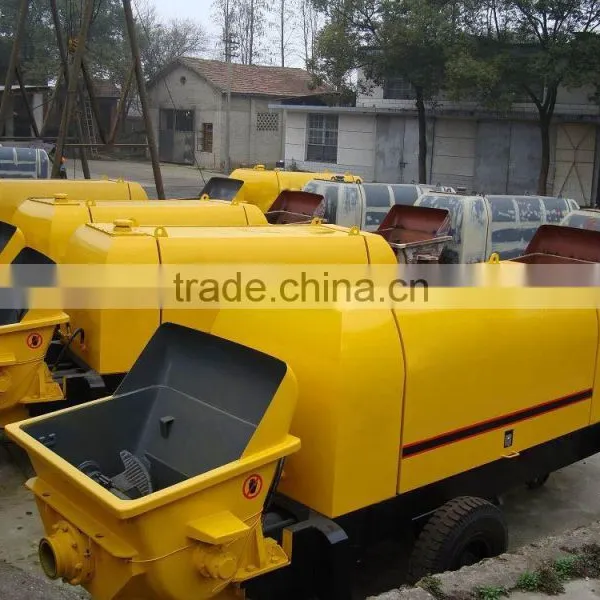

China Manufacturer Diesel HBT90S1821-200 Small Concrete Pump Pipe Price
Made in China Diesel Concrete Pump Sales HBT90S1821-200 For Sale ( Haomei Machinery Equipment Co.,Ltd. have produced trailer China Concrete Pump for 10 years,is one professional supplier of concrete machinery in China )
HAOMEI trailer concrete pump features
1,Diesel trailer concrete pump
2,Electric trailer concrete pump
3,Foam concrete pump
4,Mini trailer concrete pump
5,Lightweight trailer concrete pump
6,Mortar pump
7,Shorcrete machine
Other informations of concrete pump price
1. Power system of China Concrete Pump
Main hydraulic pumps are famous German REXROTH products.
Engine:German Deutz
2. Electric control system of China Concrete Pump
The reversing control is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact. The main oil pump is under the famous brand of Kawasaki from Japan.
Main electric elements are imported original Schneider, OMRON, Siemens, LG, etc.
3. Hydraulic system of China Concrete Pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
4. Pumping system of China Concrete Pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.
5. Lubrication system of trailer concrete pump
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston.

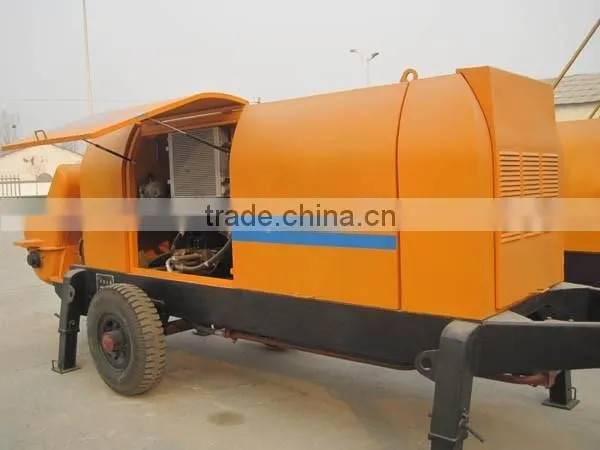

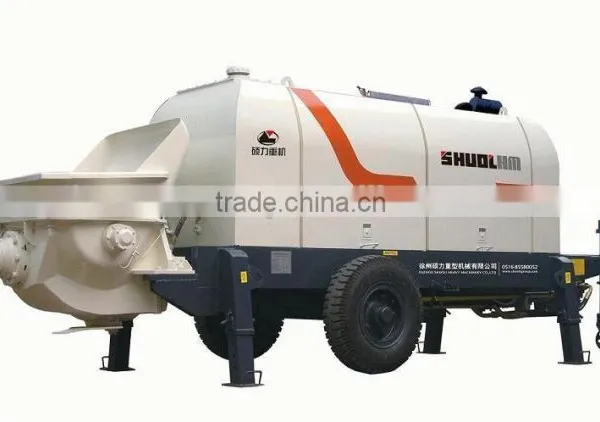

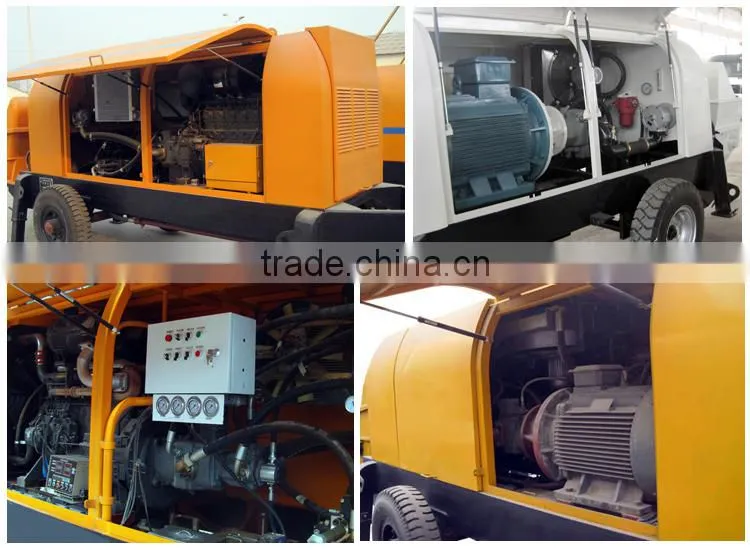

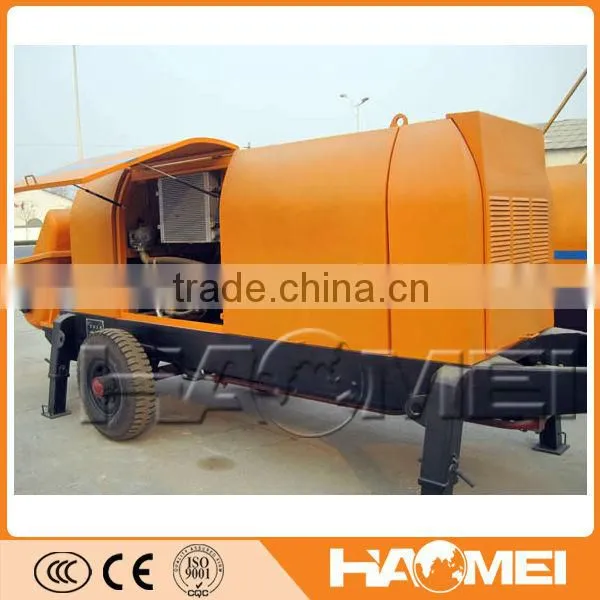

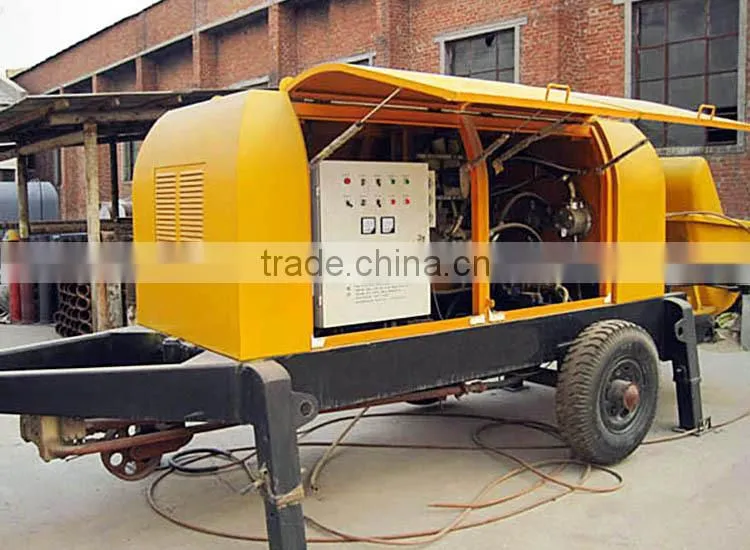

To see this product better for this picture
Main configuration of Trailer-concrete pump HBT90S1821-200
Item |
Unit or model |
parameter |
|
model |
|
Single movement level in hydraulic piston |
|
concrete distributing valve |
|
"S"pipe valve |
|
Outlet pressure in theory |
High-pressure small-engine |
MPa |
16 |
|
low-pressure large-displacement |
9.5 |
||
|
Outlet capacity in theory
|
High-pressure small-engine |
m3/h |
44 |
|
low-pressure large-displacement |
72 |
||
|
Max transportation distance in theory |
150mmpipe |
m |
Level 1300 or vertical 270 |
125mmpipe |
m |
Level 1200 or vertical 250 |
|
Max. aggregate size |
150mmpipe |
mm |
50 |
125mmpipe |
mm |
40 |
|
conveying cylinder diameter ×Max route |
mm |
φ200×1800 |
|
bucket capacity×feeding height |
m3/mm |
0.7/1320 |
|
main motor |
Y2-315S-4 |
Rate power 110KW |
|
260main oil pump |
A11VL0190 |
Max flowing ability 275L/min |
|
secondary motor |
Y2-280M-4 |
Rated power 90KW |
|
secondary oil pump 260 |
A11V0260 |
Max. flowing ability 275L/min |
|
hydraulic oil tank capacity/diesel tank capacity |
L |
860 |
|
hydraulic oil |
|
Great wall Brand AW46 # anti-wear hydraulic oil |
|
tread |
mm |
2050 |
|
power supply voltage/Frequency |
V/Hz |
380/50 |
|
outside dimension: LWH |
Mm |
6680×2295×2255 |
|
largest towing speed |
Km/h |
second road≤15 third road ≤8 |
|
total quality |
kg |
6500 |
|

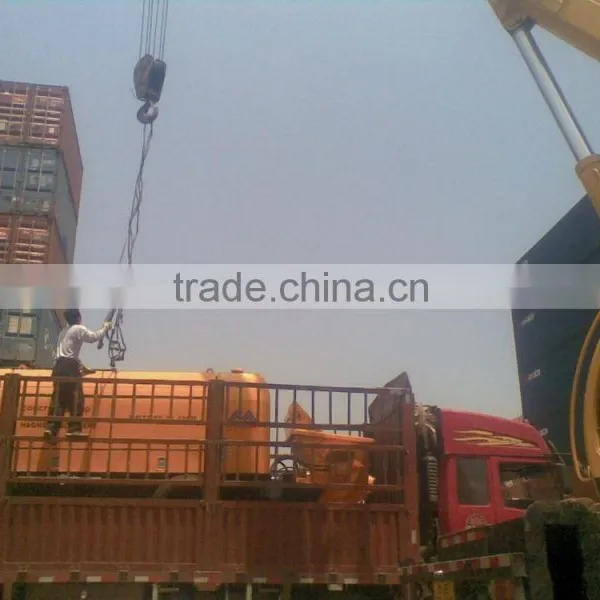

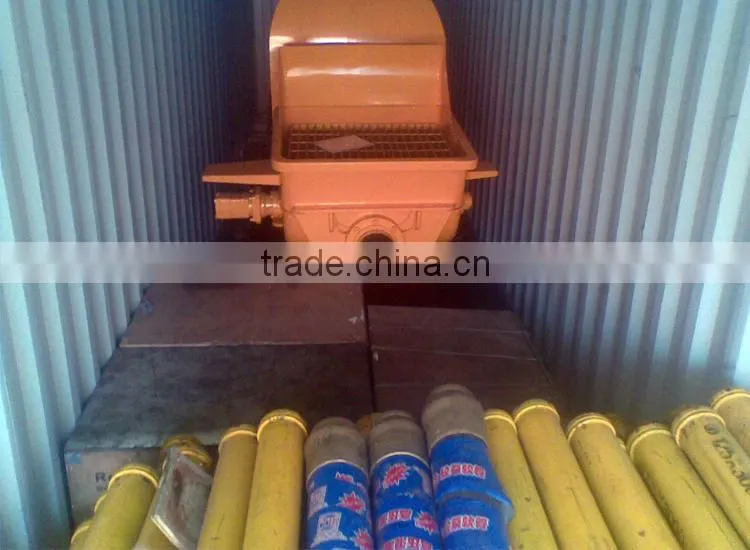

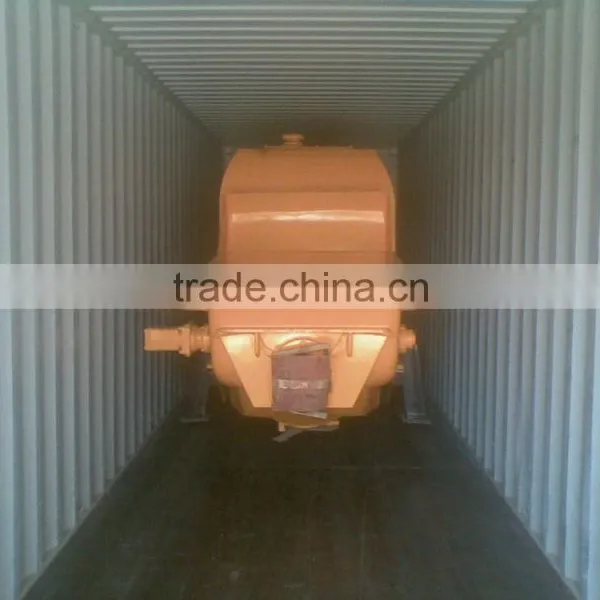

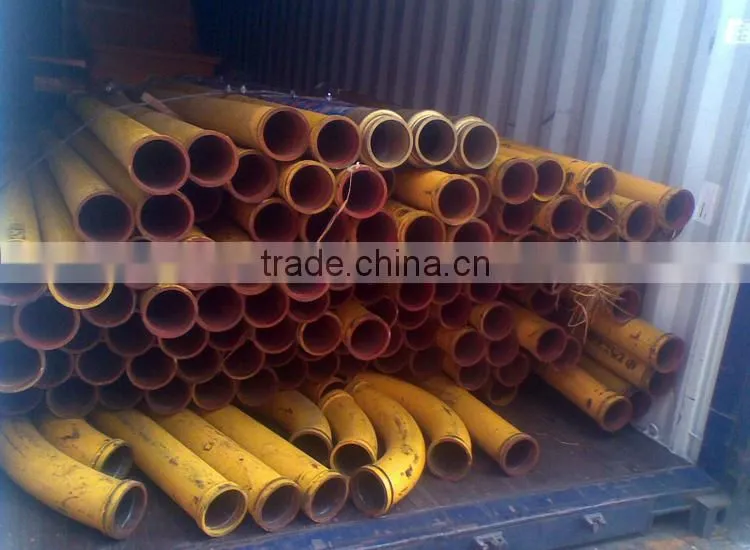

We can see the packing and delivering procedures from these following pictures:
Technical support online service provided.
Technical files service provided.
On-site training service provided.
Spare parts replacement and repair service provided
HAOMEI Machinery Equipment CO,.Ltd is located in the famous machinery capital of Zhen Zhou, China. We are professional machinery products manufacturer-featuring a wide range of quality concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS" to cooperate with clients from all over the world. Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches.
Do you know how did we contact the company?
Here is the Business card as following
