HZS120 Aggregate Mixture Machine
- Qingdao Xiamen
- T/T
You May Like
-
Modern Design HZS35 Ready Mixed Concrete Batching Plant
-
Hot Selling HZS50 Mini Cement Plant
-
Modern Design HZS50 Concrete Batching Machine
-
In Turkey Random Color HZS60 Concrete Batch Plant For Sale
-
Widely Used HZS150 Fixed Batching and Mixing Plant Supply
-
2015 Widely Used HZS60 Concrete Batching&Twin-Shaft Mixing Plant
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | HM | |
| Model Number | HZS120 | Power(W) | 160KW | |
| Dimension(L*W*H) | 44m*18m*12.7m | Weight | 71T | |
| Certification | ISO CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
HZS120 aggregate mixture machine
HZS120 is Haomei's newly developed products on its many years' experience of producing concrete mixing equipments combined with international top technology and advantages and technicques of advanced machine types both in China and abroad in recent years. It is the only product in the same field in China that achieves domestic leading level in general index and achieves international advanced level in such aspects as productivity, noise control, environmental production, etc. Thus it was chosen as one of the NATIONAL KEY NEW PRODUCTS in 2006.
Main features of Concrete Batching Plant
• Adopt combined structure and modular unit, convenient to install and remove;
• Mixing and aggregate lifting system adopt JS2000 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;
• Aggregate batching system adopts PLD2400 concrete batcher which offers efficient and accurate measurement;
• Powder lot is electronic measured, highly accurate dosing;
•Water is flow-metering, simple and practical, highly accurate dosing.

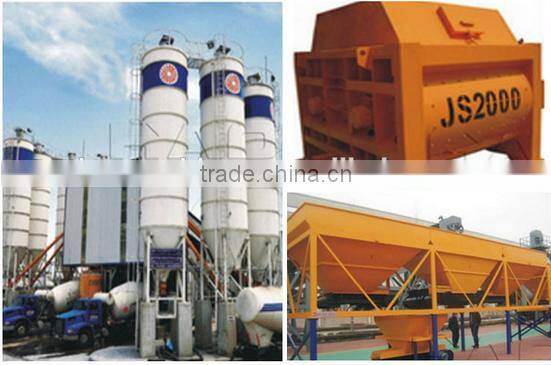

Some characters of HZS120 concrete batching plant as following pictures

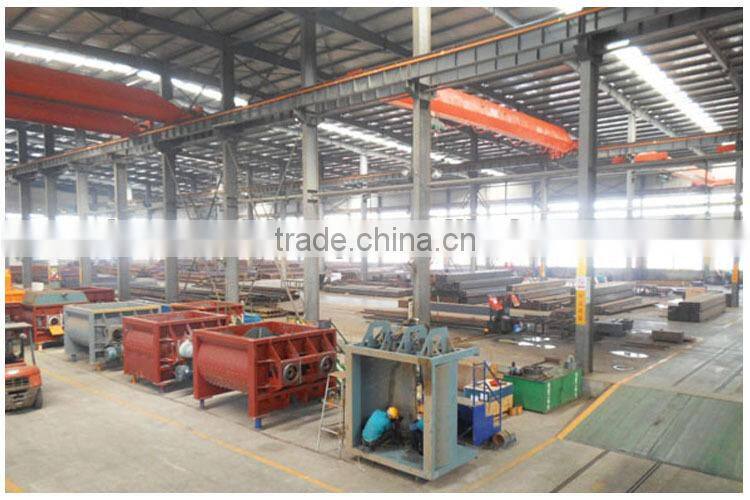

Work shop of concrete batching plant
Technical parameter of concrete batching plant
Main technical data | ||
Type | HZS120 | |
Productivity in theory | 120m³/h | |
Mixer | JS2000 | |
Total power | 160KW | |
Maximum aggregate diameter | 80mm | |
Aggregate feeding method | Conveyor belt | |
Aggregate bins volume | 4x16m³ | |
Aggregate weighing | 2x3000kg ±2% | |
Cement weighing | 1200kg ±1% | |
Fly-ash weighing | 600kg ±1% | |
Water weighing | 600kg ±1% | |
Additive weighing | 50kg ±1% | |
Discharging height | 3.8m | |
Overall dimension(during operating) (LXWXH) | 44mX18mX12.7m | |
Total weight | 71T | |
Control | Fully automatic central control | |
Cement silo(optional) | Required on clients' demand | |
Cement screw(optional) | Each cement silo equipped with one 219 screw | |

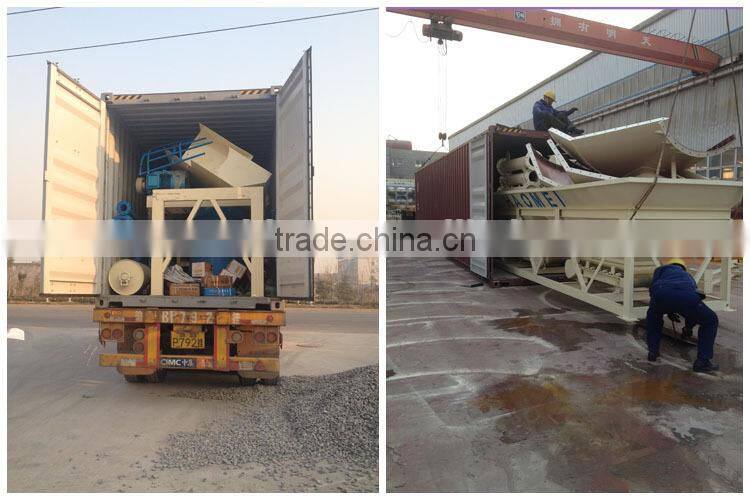

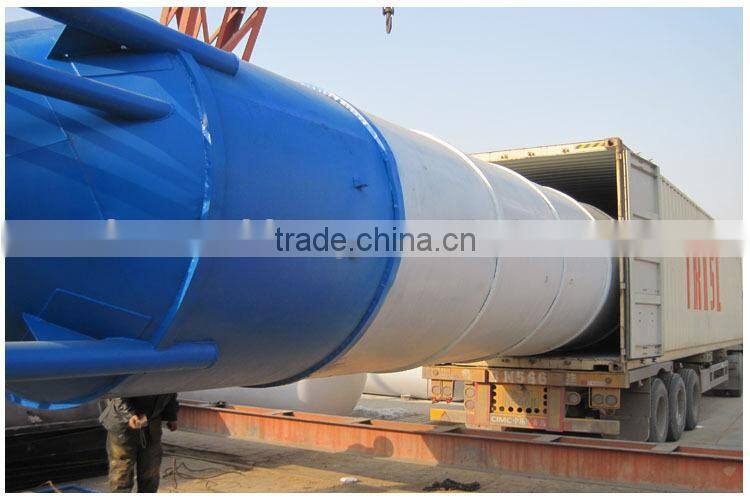

Packing for HZS 120 concrete batching plant
Pre-sale service
Suggest the best suitable products for customers according to their requirement, with sincere attitude
Try our best to Offer the technical service before installment.
Give our customers training for main problems and solution, maintenance and so on
During sale service
Supervising the whole process of producing and shipment and making sure our product deliver with good condition in time.
Offer all the necessary technical data to customer.
After sale service
Offer installment, debugging, and repairing service after customer receiving our products.
Offer work-site training.
Solve the customer’s complain at first time and try to arrive at the work site once get your notice.
We record every sold product on installment, debugging, and repairing situation. And provide professional maintenance advice.
We will visit customer timely to learn customer’s advice and new demand
Haomei machinery equipment co.,Ltd is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS" to cooperate with clients from all over the world. Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches.
Pictures below can help us to know this machine well
Clients come to our factory
Certification of this product
1. Why dose the customs choose our HAOMEI concrete mixer?
Specialize on manufacturing only concrete mixer.
Commitment used to serve clients as their solution partner.
What's the quality of your concrete mixer?
Rest assured that our products have got ISO, CE certificated. We have the professional team for the products' study and development.
What’s more, JS500 concrete mixer is on sale with a competitive price and I believe you will not miss this chance. We sincerely hope we can establish business relationship between us and welcome you visit our factory.
2. When do you deliver the goods?
20 days after the deposit.
