Specifications
HZS25 Concrete batching plant1.Competitive price and quality
2.Compact structure,reliable performance
3.Warranty:12 Month
HZS25 PLD800 concrete mixing plant is one of the small-sized plant series of HAOMEI company. It is semi-automatic concrete mixing block composed by feeding, batching, mixing, electrical control and steel structure components, suitable for small-scale construction projects, precast yard and commercial concrete companies.
Main features of PLD800 concrete mixing plant
• Adopt combined structure and modular unit, convenient to install and remove;
• Mixing and aggregate lifting system adopt JS500 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;
• Aggregate batching system adopts PLD800 concrete batcher which offers efficient and accurate measurement;
• Powder lot is electronic measured, highly accurate dosing;
•Water is flow-metering, simple and practical, highly accurate dosing.
Technical parameter of PLD800 concrete mixing plant
Item |
Unit |
Parameter |
Max. Productivity |
m3/h |
25 |
Nominal capacity of mixer |
m3 |
0.5 |
Max Weighing Value of aggregate |
kg |
1500 |
Max Weighing Value of cement |
kg |
300 |
Max Weighing Value of water |
kg |
150 |
Max Weighing Value of additive |
kg |
40 |
Rating transport capacity of screw conveyor |
t/h |
35 |
Capacity of Cement Cabin |
t |
50 |
Mixing Power |
kW |
18.5 |
Hoist Power |
kW |
5.5 |
Power of Machine |
kW |
60 |
Weight of Machine |
t |
25 |
Outline Dimension(LxWxH) |
m |
15x8x14 |
Discharge Height |
m |
3.8 |
Aggregate measuring accuracy |
% |
≤2 |
Water measuring accuracy |
% |
≤1 |
Cement measuring accuracy |
% |
≤1 |
Additive measuring accuracy |
% |
≤1 |
Please note:
1. The total power doesn't include the power of cement screw;
2. Non-standard design could be made according to clients' demand;
3. The above-mentioned data could be changed due to the designing improvement, please check the updated configuration when purchasing.
Main components

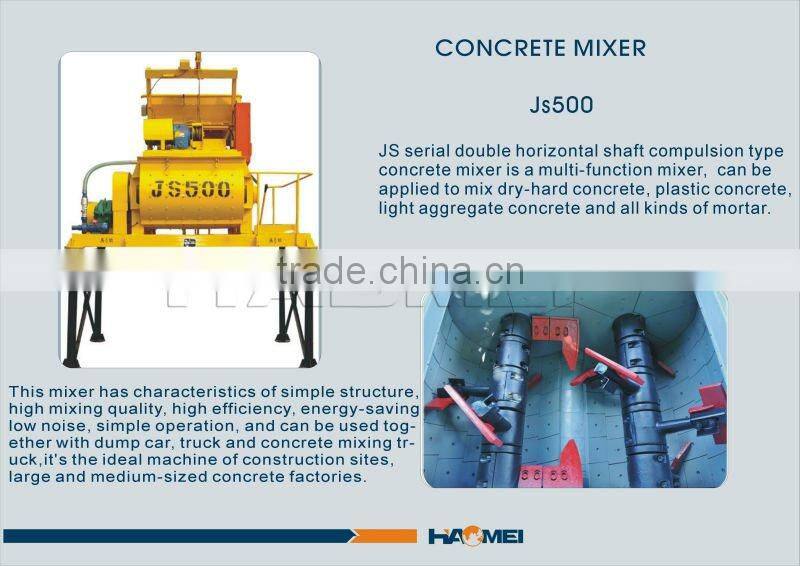

Concrete mixer
|
Model
|
Output volume
|
Input volume
|
Production capacity
|
Aggregate max.diameter
|
Mixing motor power |
Overall dimensions (LxWxH)
|
|
JS750
|
750L
|
1200L
|
36-45m3/h
|
60-80mm |
30kw
|
4430×3615×3385mm
|

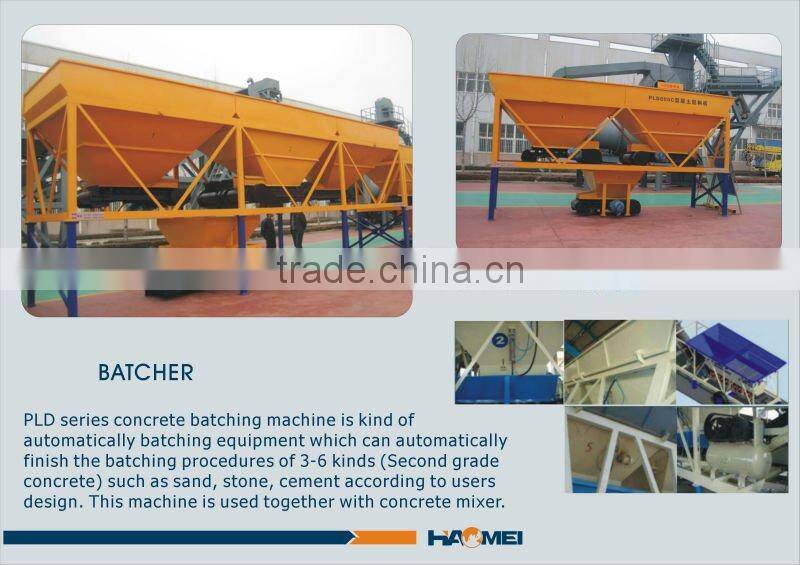

Batcher

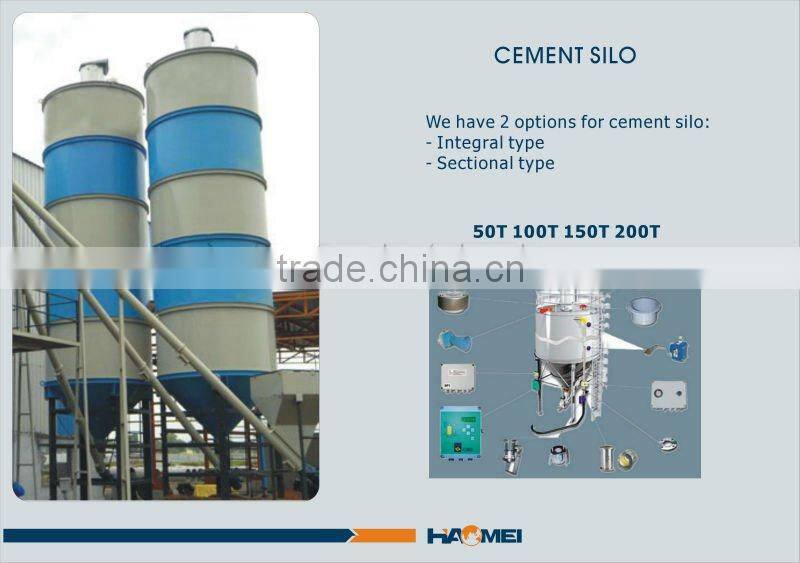

Cement silo

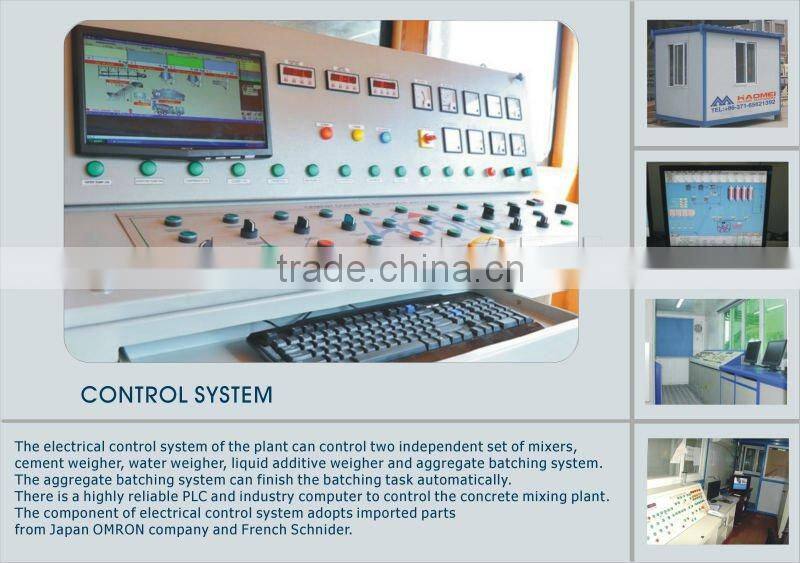

Control system
