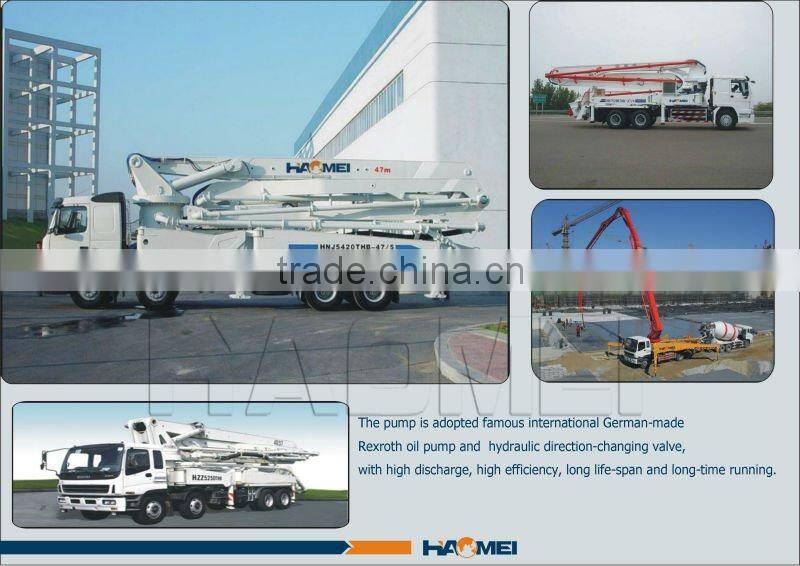

Hot Sale 37m,39m Concrete Pump Truck

Name: Hot Sale 37m,39m Concrete Pump Truck
Brand: HAOMEI
SKU: 115999419
Availability: InStock

US$ 300,000 - 310,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Power Type:

Electric

Place of Origin:

Henan, China

Haomei Machinery Equipment Co., Ltd. (Zhengzhou)

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Power Type Electric

Place of Origin Henan, China

Brand Name HAOMEI

Model Number HDT5281THB-37/4,HDT5291THB-39/4

Power(W) 265 kw

Weight 28000 kg

Dimension(L*W*H) 12000*2490*3800mm

Certification ISO9001:2000

Warranty ONE YEAR

After-sales Service Provided Engineers available to service machinery overseas

37m,39m concrete Pump Truck
1.Energy saving
2.Low oil temperature
3.Good equipment performance

Products characteristics of concrete pump truck

1.The power system is consisted by technical diesel engine or electrical engine.

2.It can drive the pumping system directely which samplized the linkage structure and improved the efficiency.

3.Strong power system reduced the rate of occuring faults;

4.The elements of electrical controlling system is adopted Japan and Gemany's original parts.The excellent assembly

quality fully guaranteed the function of electrical controllingsystem.

5.The special design of hopper and vane reduces the space of mixing blind angle thus makes the machine suitable for many kinds of concrete.;

37m,39m concrete Pump Truck

name		unit	HDT5281THB-37/4	HDT5291THB-37/4	HDT5291THB-39/4
	output in theory	m3/h	125	125	125
	index of the pump carry capacity	Mpa.m3/h	586	586	586
	theoretic pumping pressure	Mpa	8.5	8.5	8.5
	bucket volume	L	700	700	700
	height of top surface of bucket	mm	1370	1370	1370
	model of dirstribution valve		S Valve	S Valve	S Valve
	max. operation radius	m	32.6	32.6	34.7
	max. operation height	m	36.6	36.6	38.7
	max. operation depth	m	25.5	25.5	27
	open height of boom	mm	8450	8450	8830
	distance between front landing legs	mm	7058	7058	6800
	distance between rear landing legs	mm	6848	6848	7000
	distance between front & rear landing legs	mm	6790	6790	7432
	diameter of delivery pipe	mm	125	125	125
	length of hose pipe	m	4	4	4
	rotary range of boom		370°	365°	365°
	quantity of boom		4	4	4
	rotary angle of each boom	°	92/180/180/270	92/180/180/270	91/180/180/180/270
	wire line control distance	m	33	33	33
	romote control distance	m	200	200	200
	max. speed	km/h	85	90	90
	min. turn radius	mm	8800	8800	8800
	brake distance	m	7	7	7
	approach angle	°	16	16	16
	departure angle	°	11	11	11
	chassis model		ISUZU CYZ51Q	HOWO ZZ5307N4647C	HOWO ZZ5307N4647C
	, wheel base between the first & the second axle	mm	4595	4600	4600
	,wheel base between the second & the third axle	mm	1310	1350	1350
	front tread	mm	2065	2022	2022
	rear tread	mm	1850	1830	1830
	max. engine output power	kw	265(1800r/min)	247(2200r/min)	247(2200r/min)
	max. engine output torque	n.m	1422(1100r/min)	1350(1100-1600r/min)	1350(1100-1600r/min)
	max, gradient ability	%	37	35	35
	fuel consumption	L/100km	36.6	34	34
	(××)out dimension(L×W×H)	mm	12000×2490×3800	12000×2490×3850	12500×2490×3950
	total weight	kg	28000	29000	29500
