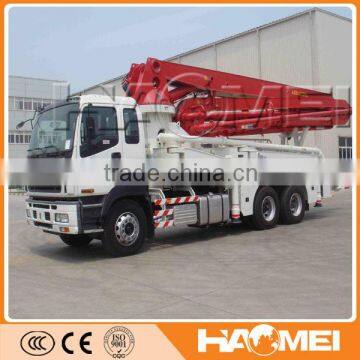

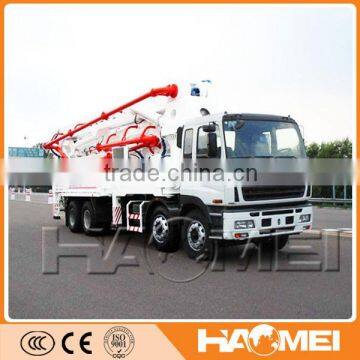

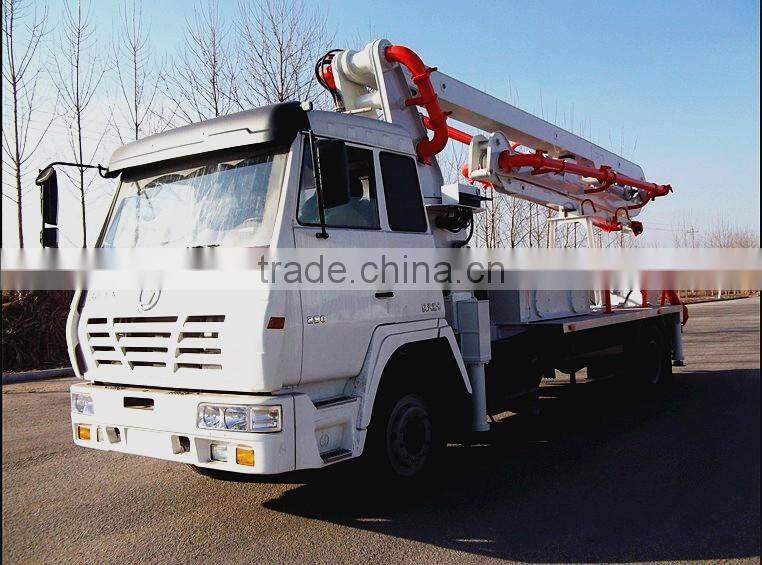

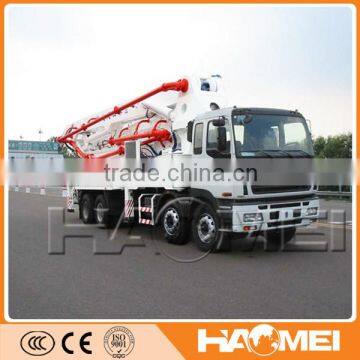

competive price concrete pump and mixer With Best Price concrete pump
Products Characteristics of concrete pump and mixer:
1.The power system is consisted by technical diesel engine or electrical engine.
2.It can drive the pumping system directly which samplized the linkage structure and improved the efficiency.
3.Strong power system reduced the rate of occuring faults;
4.The elements of electrical controlling system is adopted Japan and Gemany's original parts. The excellent assembly
quality fully guaranteed the function of electrical controlling system.
5.The special design of hopper and vane reduces the space of mixing blind angle thus makes the machine suitable for many kinds of concrete.

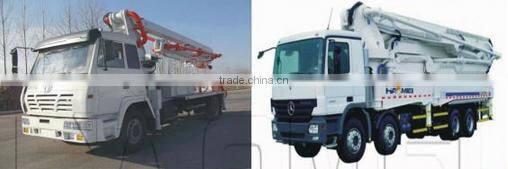

Parameter of Portable concrete pump 48m,52m
|
|
|
|
HDT5401THB-48/5 |
HDT5420THB-52/5 |
||
output in theory |
m3/h |
125 |
125 |
index of the pump carry capacity |
Mpa.m3/h |
586 |
586 |
theoretic pumping pressure |
Mpa |
8.5 |
8.5 |
bucket volume |
L |
700 |
700 |
height of top surface of bucket |
mm |
1400 |
1400 |
model of distribution valve |
|
S Valve |
S Valve |
max. operation radius |
m |
43.7 |
47.8 |
max. operation height |
m |
47.7 |
51.8 |
max. operation depth |
m |
34.3 |
39.8 |
open height of boom |
mm |
9065 |
9400 |
distance between front landing legs |
mm |
9780 |
10295 |
distance between rear landing legs |
mm |
9860 |
10650 |
distance between front & rear landing legs |
mm |
9470 |
10310 |
diameter of delivery pipe |
mm |
125 |
125 |
length of hose pipe |
m |
3 |
3 |
rotary range of boom |
|
365° |
365° |
quantity of boom |
|
5 |
5 |
rotary angle of each boom |
° |
91/180/180/180/270 |
90/180/180/180/270 |
wire line control distance |
m |
33 |
33 |
romote control distance |
m |
200 |
200 |
max. speed |
km/h |
85 |
80 |
min. turn radius |
mm |
12000 |
12500 |
brake distance |
m |
10 |
10 |
approach angle |
° |
16 |
16 |
departure angle |
° |
11 |
11 |
chassis model |
|
HOWO ZZ5437S4667C (HOWO Engine) |
HOWO ZZ5437S5067C1 (HOWO Engine) |
wheel base between the first & the second axle |
mm |
1800 |
1800 |
wheel base between the second & the third axle |
mm |
4600 |
5000 |
wheel base between the third & the fourth axle |
mm |
1350 |
1350 |
front tread |
mm |
2022 |
2022 |
rear tread |
mm |
1830 |
1830 |
max. engine output power |
kw |
275(2200r/min) |
275(2200r/min) |
max. engine output torque |
n.m |
1500 /(1100~1600 r/min) |
1500 /(1100~1600 r/min) |
max, gradient ability |
% |
37 |
37 |
fuel consumption |
L/100km |
40 |
40 |
(××)out dimension(L×W×H) |
mm |
13300×2500×4000 |
13990×2500×4000 |
total weight |
kg |
40000 |
42000 |
We usually use container to deliver the concrete pump .

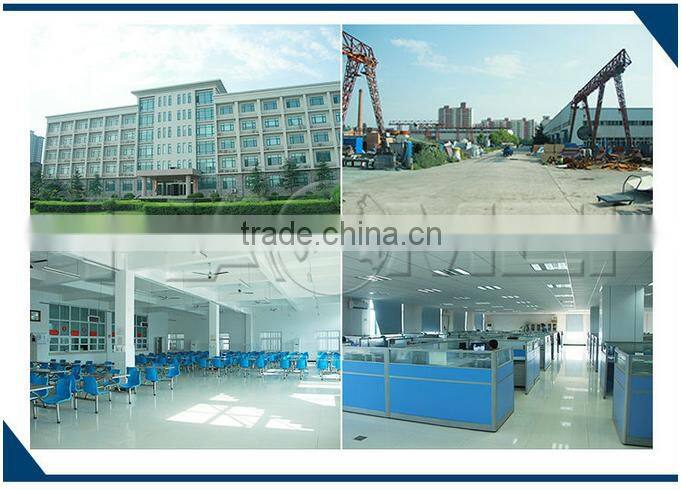

Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches. We have over 1000 technical workers and 80 engineers equipped with advanced producing and inspecting machines with strict management. We focus greatly on our products quality and with such quality our products have been receiving admiration by clients from over 30 provinces in China and royal clients from overseas.
1.Establishing year: 2001
2. located in the famous machinery capital of Zhengzhou, China
3. manufacturer-featuring a wide range of quality concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc.
4. Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches.
