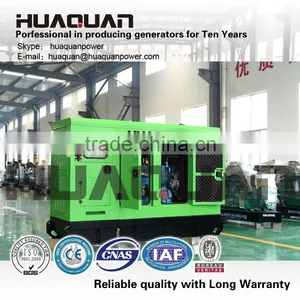

Three Phase Soundproof 15kw Generator Diesel

Name: Three Phase Soundproof 15kw Generator Diesel
Brand: Huaquan
SKU: 115995323

Three Phase Soundproof 15kw Generator Diesel thumbnail-1

Three Phase Soundproof 15kw Generator Diesel photo-1

US$ 3545.00 - 3545.00 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Huaquan

Model Number:

HQY150GF

Contact Supplier Request Quote Chat Now

Shandong Huaquan Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Tianjin/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Huaquan

Model Number HQY150GF

Output Type AC Three Phase

Speed 1500RMP

Frequency 50hz

Rated Power 15kw/18.7kva

Rated Voltage 230/400v

Rated Current 27A

Generator Spec's

Soundproof 15kw Generator Diesel Application

Huaquan Power HQY10GF 15kw diesel generator,adopt Weichai brand 4 cylinders engine, small size, reliable quality output.This type generator widely used as back up use or continuous work use, more than 20 hours no problems.Cost low fuel, and low noise, mostly used for home, hospital,market,station etc.Easy maintenance,spare parts avaiable all the time. This is why 90% client will choose this model for the small area power supply use.Options electronic governor,soundproof canopy, Trailer with wheels, heating system ,Automatic transfer etc

SPECIFICATIONS FOR 15KW/18KVA GENERATOR DIESEL
Generator Set	Genset Model	HQY15GF	Size(LWH mm)	15006001000
	Prime Power(kw/kva)	15/18.75	Weight (KG)	550kg
	Standby Power(kw/kva)	16.5/19.8	Speed	1500 rpm
Engine performance parameters	Manufacturer	Weichai	Engine Model	WP2.1D18E
	Max Power(kw/kva)	18kw/22.5	Full load consumption	3L/h
	Cylinder No.	4	Bore*stroke	85×92 mms
	Speed Governor	Mechanical	Over Load	110%
	Engine character	Natural in take, Injection,In line,Water cooled
Alternator	Manufacturer	Stamford	Model	184ES
	Capacity	20kva	Frequency	50HZ
	Current (A)	27A	Voltage	400V/230V
	Phase	3 Phase,4 Wires	Character	Brushless

Generator Set Smart Control System
Manufacturer	Smartgen	Model	6120
Start Model	Auto/Manual/Stop	Auto Start Time	5-60s (adjustable)
Display parameter	Voltage of battery	Hour meter	Fault information
	Ampere	Oil pressure	Fuel level
	Tachometer	Output power	Language
Insurance and safe equipment	Low fuel level	Low oil pressure	Lack of speed
Insurance and safe equipment	Over speeding	High water temperature	Failure to start

Main Features

Detailed Images

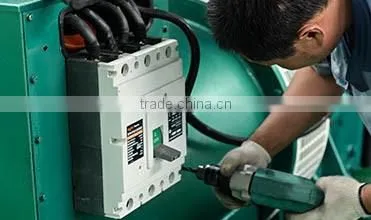

Circuit Breaker For Generator Set

Name:Ciruit Breaker

Brand:Delixi

Original: China

For electronic meters and circuit breakers,we adopt famous brand Delixi .Reliable quality and more safe during operation or stopping.

Main Features for generator set

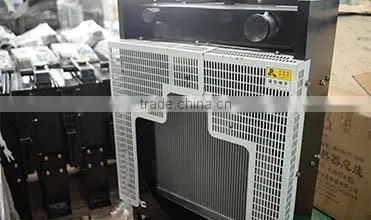

Name: Radiators
Brand:China
Original:China

according to different working areas,there are 40*C and 50*C two type .which is 100% pure copper with acid treatment.Heat dissipating system with special design for providing good heat dissipation effect.

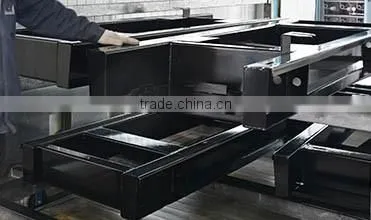

Generator Set Machine Parts

Name: Frame
Brand: Huaquan
Original: China
5mm or 7mm steel plates make the frame,Seamless welding technology makes solid base. the unique stoving varnish painting technology makes it more durable

Generator Set Main Features

Name: Shock absorber
Brand: Import
Original: Abroad
shock absorber, buffering the shock, protecting the generator during its work

Generator Set Battery.

All generators with Non-maintenance battery,Chinese top brand "Camel Battery"

Generator Set Battery Breaker.

Special design with battery breaker for providing good protection with easy operation.

Our Service

Generator Set Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Generator Set After-Sales Service

* Training how to install the machine, and how to use it

* Engineers are available to service overseas.

Packaging & Shipping

1.Package:All generators standard package by Plywood package, free fumigation type.Make the generator more safe during the transportation time.

2.Shipping: All generators will delivery by ship.We accept the FOB OR CIF item. Professional shipping company service provided beause our More years experience.Competitive price and High efficiency for the whole delivery time.

3.Delivery:For norma genset, after the deposit within 2-5 days we will start delivery.For special requirements type generators, only need wthin 10 days to finish.
