Famous Brand !!! Silent Diesel Generator Set

Name: Famous Brand !!! Silent Diesel Generator Set
Brand: HUAQUAN
SKU: 115995147
Availability: InStock

Shandong Huaquan Power Co., Ltd.

US$ 1,000 - 5,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

HUAQUAN

Model Number:

HQ40GF

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name HUAQUAN

Model Number HQ40GF

Output Type AC Single Phase

Speed 1500/1800

Frequency 50/60HZ

Rated Power 40kw

Rated Voltage 380V-415V 220V-240V 190V-208V

Rated Current 72A

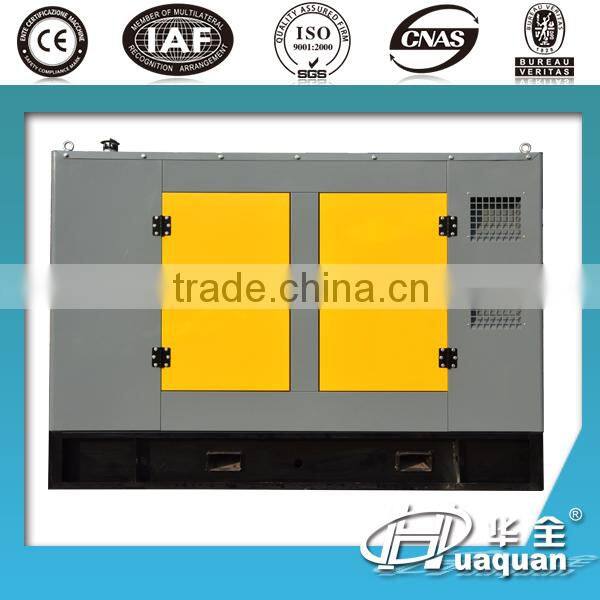

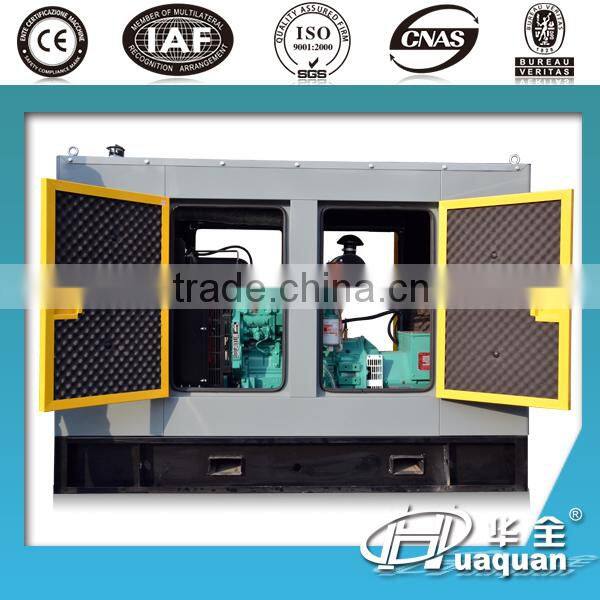

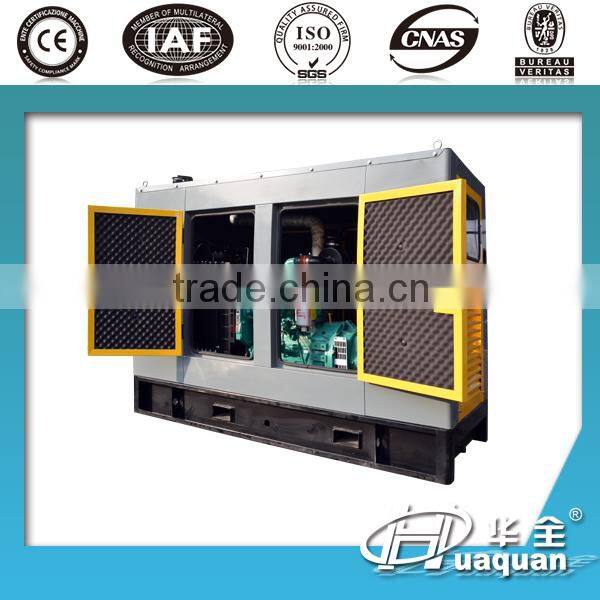

Famous brand !!! silent diesel generator set

silent diesel generator set

MAIN SPECIFICATIONS OF GENERATOR SETS

GENSET	Open frame model	HQ40GF
MODEL	Silent Model	HQS40GF
Continuous output(KW/KVA)		40/50
Standby output(KW/KVA)		44/55
Rating Definitions
380-400v 50HZ
Continuous power model P
hese rating are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power there is no limitation to the annual hours of operation and this model can supply 10% overload power for 1hour in 12hours.
Standby power model P
These rating are applicable for supplying continuous electrical power (at variable load) in the event of utility power failure .No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO8528-3)at 27 .
TECHNICAL DATA
DIESEL ENGINE MODEL		HQ40GF
ENGINE CHARACTERS		Water-cooled ,in line,4-cylinders,4-stroke,direct injection ,Dry cylinder liner 1500RPM
Cylinder		4
Constant output(KW)		65.7
Standby output(KW)		72.3
Aspiration		Turbocharged
Bore(mm)*stroke(mm)		100*127
Cubic capacity (liters)		3.99
Piston speed(m/s)		6.35
Compression ratio		16:01
Stability bandwidth		≤±0.8%
Steady governing rating		≤5%
Acoustic pressure		≤91.2dba(at full load,1m distance)
Exhaust temperature		561
Exhaust back pressure		6Kpa
Alternator model		SLG224D
Continuous output(KW/KVA)		40/50
Power efficiency		88.20%
Voltage regulation		±1.0% with4% engine governing
Waveform distortion		No load ∠1.5% and non-distorting balanced linear load ∠5%
THF/TIF		∠2%/∠50
