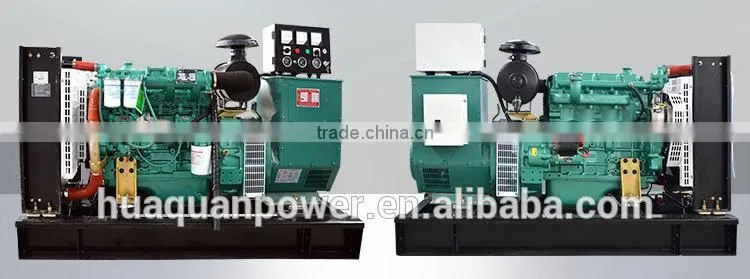

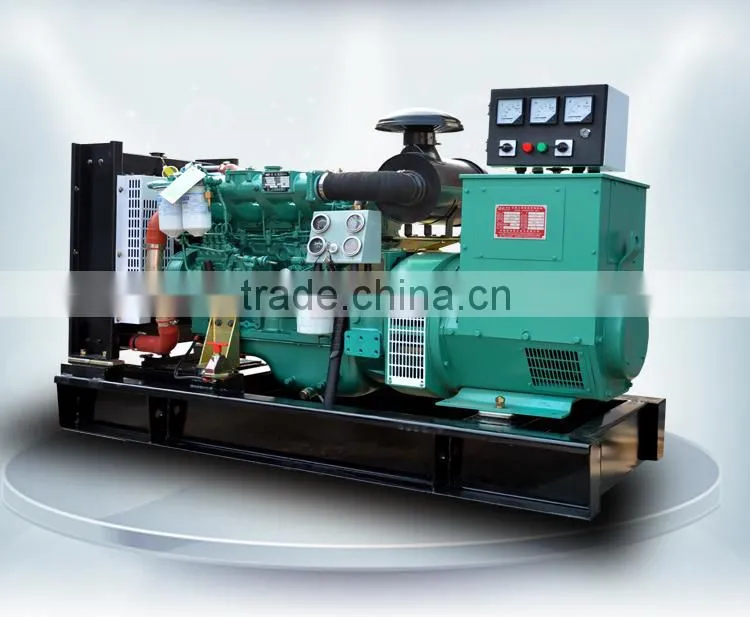

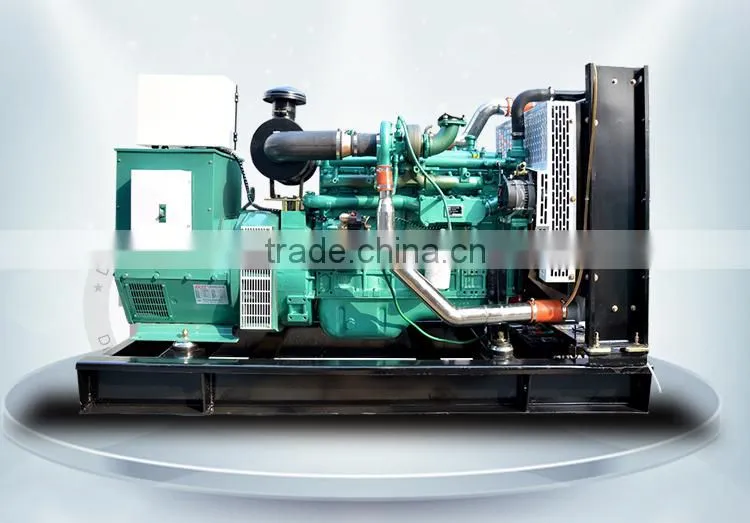

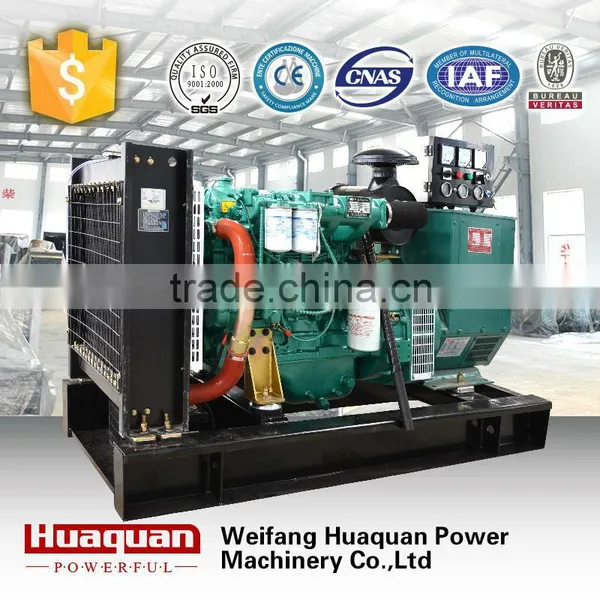

magnetic motor generator 50kva diesel generator for hot sale
1.Diesel generator adopt the Guangxi original Yuchai engine, as the main power support.
Engine charactors: Injection, Inline.Four stroke,water-cooled
2.Yuchai engine basic its years experience,produce the more strong ,stable and low fuel cost engine.
Widely used as continous work area, continous working time more than 48 hours.

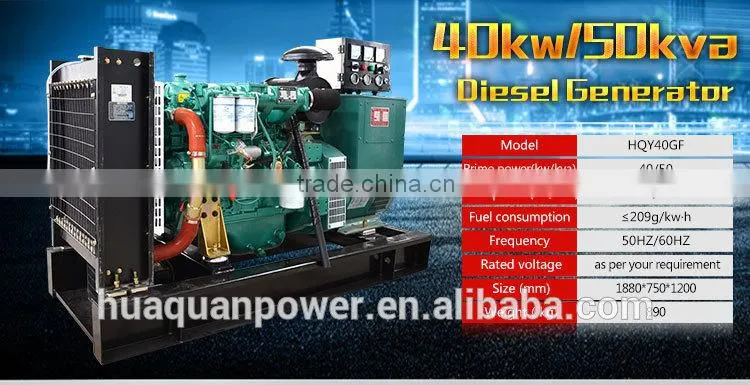

| 50kva DIESEL GENERATOR DETAILS | |||
| Model | HQY40GF | Start Method | DC 24 |
| Generator Prime Power(KW/KVA) | 40/50 | Output Current(A) | 72 |
| Standby Power(KW/KVA) | 44/55 | Voltage(V) | 400/230 |
| Power Factor | 0.8 |
Phase | Three phase, Four Wires |
| Frequency(Hz) | 50 | Weight(kg) | 890 |
| Size(mm) | L | W | G |
| 1800 | 750 | 1200 | |
| Diesel Engine Data | |||
| Manufacturer | Yuchai | Model | YC4D60-D21 |
| Rated Speed(Rpm) | 1500 | Diesel Engine Max Power(KW/H) | 44 |
| Cylinder No. | 4 | Arrangement Type | In-line |
| Bore×Stroke(mm) | 108×115 | Displacement(L) | 3.61 |
| Intake Method | Natural | Compression ratio | 17.0:1 |
| Fuel | Diesel Fuel | Full Load Consumption(g/kw.h) | ≤209 |
| Oil Capacity(L) | 10 | Start Method | Electrical |
| Engine Cooled Method | Radiator Max 40℃,fans are driven by belt with safety guard. | ||
| Alternator Data | |||
| Manufacturer | China Stanford | Model | XN40 |
| Rated Power(KW/KVA) | 40/50 | Excitation Type | Brushless |
| Insulation Class | H | Protection Grade | IP23 |
| Unload Voltage Adjustment | ≥±5% | Stable Voltage Adjustment | ±1% |

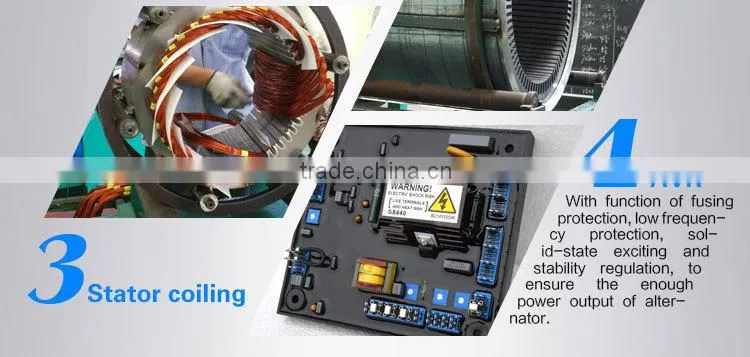

| Efficiency (%) | 94.8 | Voltage Control Method | AVR |
We offer options generators as the below shows:
A.Frequency we offer 50HZ and 60HZ.
B.Voltage: we offer 110/220v, 240v,380v/440v,254v/440 etc,or depend on your request.
C.Phase: we offer three phase or single phase generator
D.Options parts like: Electric speed adjustment, LCD show panel,protection system,Automatic transfer system. Silent canopy, Weatherproof canopy,Fuel tank.
Advantages

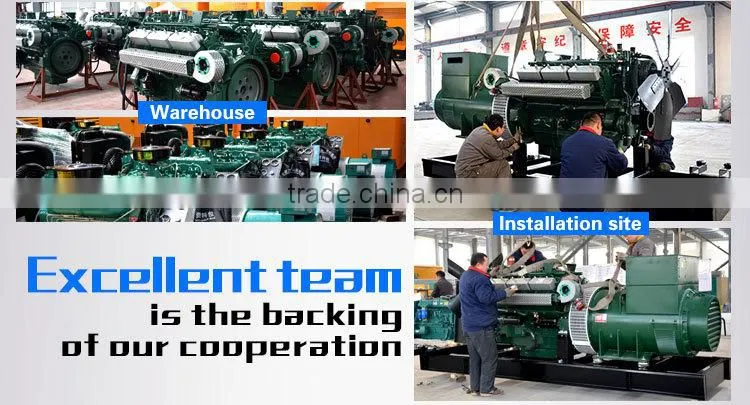

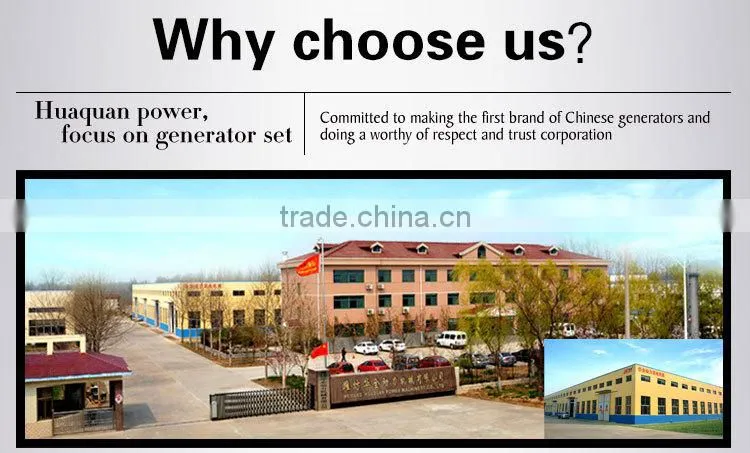

company information
certifications
