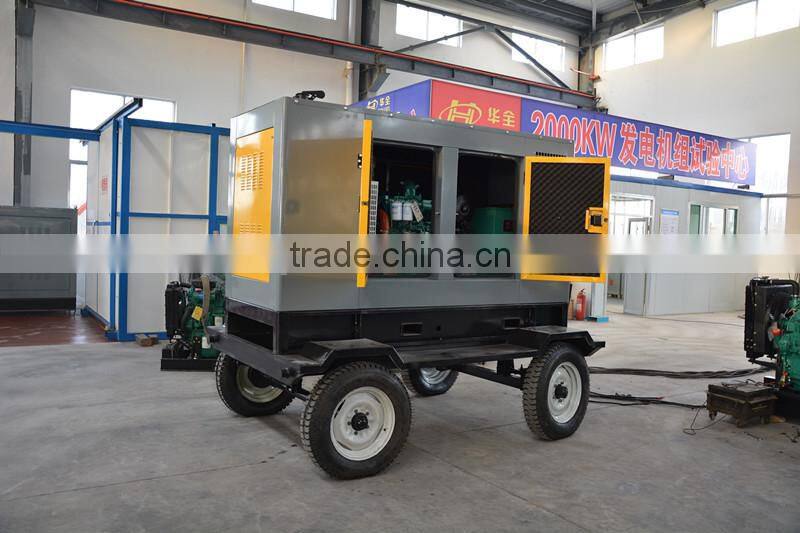

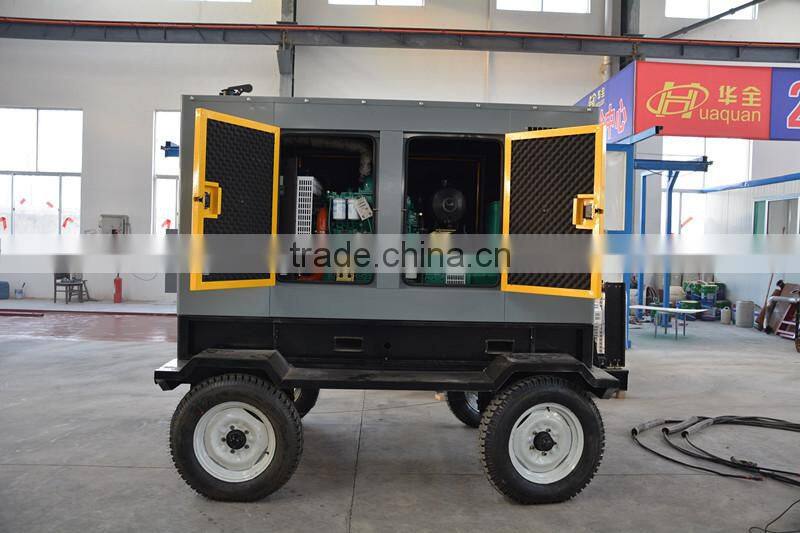

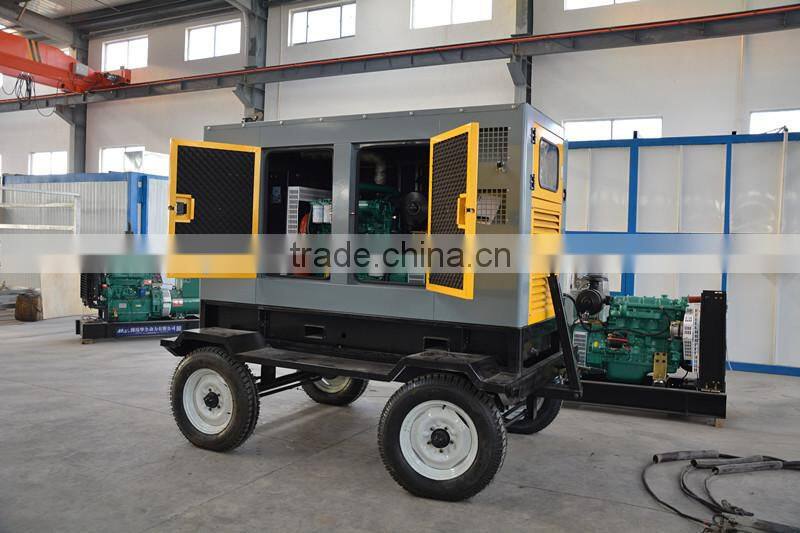

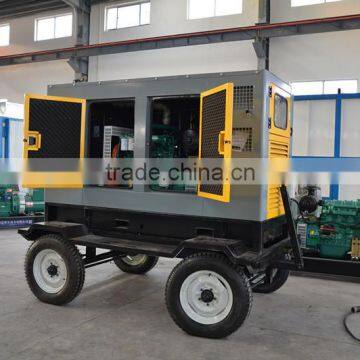

Trailer/mobile Silent Diesel Generator 50kw

Trailer/mobile Silent Diesel Generator 50kw photo-1
Trailer/mobile Silent Diesel Generator 50kw photo-2
US$ 4,860 - 4,870 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Huaquan
Model Number:
HQ50GF, HQ50GF, Yuchai YD4D85Z-D20
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port of China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Huaquan
Model Number HQ50GF, HQ50GF, Yuchai YD4D85Z-D20
Output Type AC Three Phase
Speed 1500r/min
Frequency 50Hz
Rated Power 50KW
Rated Voltage 220/380V
Rated Current 36A







Packaging & Shipping



Package: plywood package

shipping: in 3-7days after deposit

Product Description













trailer/mobile silent diesel generator 50kwtrailer/mobile silent diesel generator 50kwtrailer/mobile silent diesel generator 50kwtrailer/mobile silent diesel generator 50kwtrailer/mobile silent diesel generator 50kw









Parameters

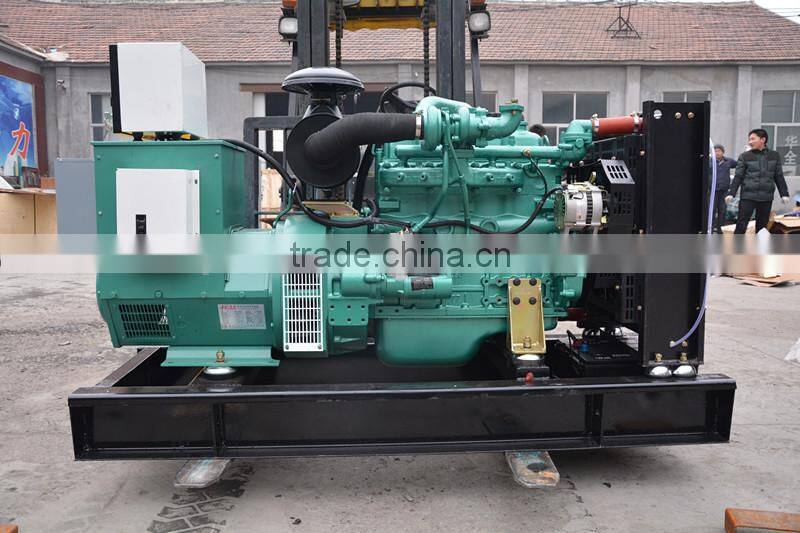

50KW DIESEL GENERATOR DETAILS
Model HQY50GF Start Method DC 24
Generator Prime Power(KW/KVA) 50/63 Output Current(A) 90
Standby Power(KW/KVA) 55/69 Voltage(V) 400/230
Power Factor 0.8 Phase Three phase, Four Wires
Frequency(Hz) 50 Weight(kg) 1000
Size(mm) L W G
1800 750 1300

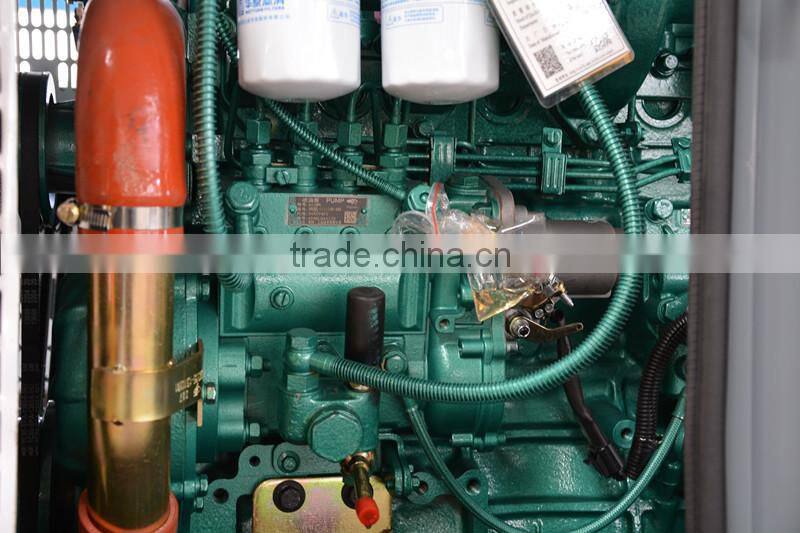

Diesel Engine Data
Manufacturer Yuchai Model YC4D85Z-D20
Rated Speed(Rpm) 1500 Diesel Engine Max Power(KW/H) 60.5
Cylinder No. 4 Arrangement Type In-line
Bore×Stroke(mm) 108×115 Displacement(L) 3.61
Intake Method Turbocharged Compression ratio 17.0:1
Fuel Diesel Fuel Full Load Consumption(g/kw.h) ≤209
Oil Capacity(L) 14 Start Method Electrical
Engine Cooled Method Radiator Max 40℃,fans are driven by belt with safety guard.
Alternator Data
Manufacturer Stamford Model 50kW
Rated Power(KW/KVA) 50/63 Excitation Type Brushless
Insulation Class H Protection Grade IP22
Unload Voltage Adjustment ≥±5% Stable Voltage Adjustment ±1%
Efficiency (%) 94.8 Voltage Control Method AVR





Sales Promises



Huaquan provides a full line of brand new and high quality products.Each



and every unit is strictly factory tested Warranty is according to our



standard conditions:12 months or 1000 running hours ,subject to the



earlier one .Service and parts are available from our factory
