Specifications

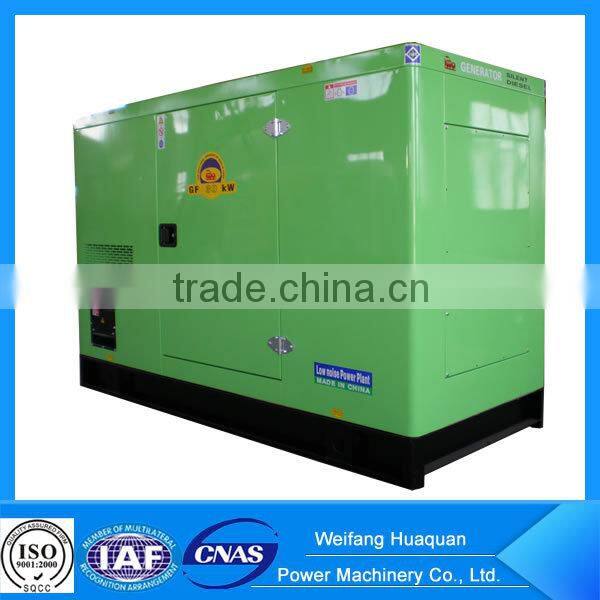

1> 50kva generator price2>Open/Silent/ATS Generator Diesel
3>Competitive Generator Diesel Price
4>In stock
More details about 50kva generator price
| Generators Diesel Standard Configurations | |
| 1 | Standard High-level quality engine Cummins series |
| 2 | Standard High-level quality alternator, Stanford, Brushless, 100% copper wires. Protection Grade: IP23, Insulation Class H. |
| 3 | No-maintenance start battery |
| 4 | After acidification under frame, High-level strong |
| 5 | Electric start, use key start |
| 6 | Standard control panel Spray-print or LCD show panel |
| 7 | Daily fuel tank |
| 8 | High-level shock absorber system |
| 9 | Ripple flexes exhaust pipe, exhaust siphons, flange, Muffler |
| 10 | 40°C radiator as standard |
| 11 | Exhaust silencer |
| 12 | Charger motor for battery. |
| 13 | Standard export box |
| 14 | Manuals |
| 15 | Tools box |
Genset model |
HQ50GF |
Type |
open/sound proof/weather proof |
Genset output power range |
50kva |
Rated voltage |
220/380V,230/400V,240/415V,120/240V |
Frequency |
50/60HZ |
Power factor |
0.8 |
Rated speed |
1500/1800rpm |
Output type |
AC three phase/single phase |
Motor |
brushless/brush |
Frequency |
<3% |
Frequency at stable state: |
<0.5% |
Frequency deviation at instantaneous state |
≤+10% |
Frequency return time |
≤3s |
Voltage deviation at stable state |
≤±1% |
Voltage deviation at instantaneous state |
≤+20% |
Voltage return time |
≤4s |
Voltage modulation |
≤0.3% |
The specification of engine:
Model |
R4105ZD |
Cooling Method |
water cooled |
Rotating speed |
1500/1800rpm |
Governor system |
electrical or mechanical governor |
Aspiration mode |
natural aspirated or turbocharged |
Starting method |
24V DC electric starting |
Stroke |
4 stroke |
The specification of alternator:
Brand |
Stamford, Leroy semor, Maraton and chinese alternator etc. |
Regulator |
AVR automatic voltage regulating |
Excite type |
pret or shunt |
Connecting type |
3PH star, 3PH-DELTA |
Steady frequency change |
0-5% |
No load voltage |
≥95%-105 |
Steady voltage |
≤±1 |
Insulation degree |
H degree |
Exclosure degree |
IP23 |

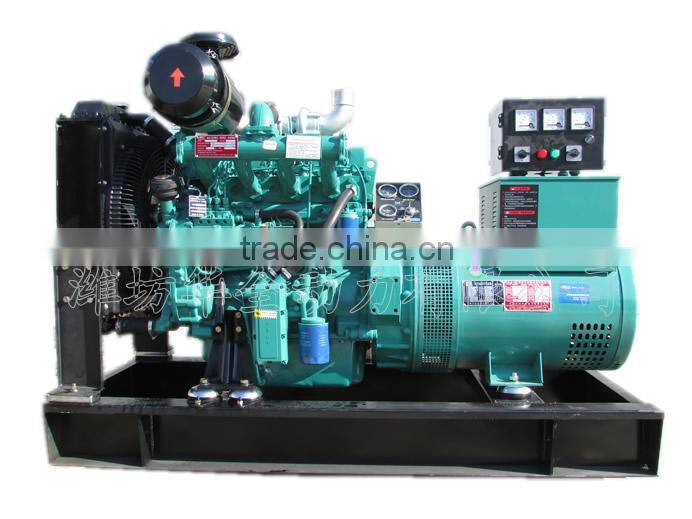

Diesel Engine
Features of diesel generators :
1. High-strength alloy cast cylinder block and cylinder head, whole balance structure forged by overall distortion and fillet hardening crankshaft, provides high strength and operation in balance.
2. DC 24V electric start, charging alternator, electronic adjustment system, performance better than that specified in GB/T2820.5 and ISO8525-5.
3 diesel generators adopt the patented PT fuel system, featured by unique protection design, low pressure oil supply, super high injection pressure (100 ~ 140Mp).
4.The diesel generators have good atomization and complete combustion; STC system, better combustion under high and low load, low fuel consumption and emissions, re
5. Four-valve per cylinder design, direct injection; turbocharged technology, applying advanced Holset exhaust gas turbocharger; good altitude adaptability, without impairment of output power under the altitude of 1525m.
Huaquan provides a full line of brand new and high quality products.Each and every unit is strictly factory tested Warranty is according to our standard conditions:12 months or 1000 running hour’s ,subject to the earlier one .Service and parts are available from our factory.
We specialized in producing diesel generators. We have exported to many countries and widely used in domestic.
1. Exported countries: Nigeria, Indonesia, Malaysia, Philippine, North Korea, Ghana, Gabon, South Africa, Guinea, Russia, Iraq, Iran, Colombia, Burkina Faso, Liberia, Zambia, etc.
2. Domestic: Send to most of the cities in china, and get high praise from our clients.
1.What's your power range of Generators?
Answer: We can offer the range from 10kva~1000kva.
2.What's your delivery time?
Answer: Generally,we can delivery in 7 days after we get the deposit.
3.What's your payment?
Answer: We accept T/T ,and 30% as the deposit,the balance payment should be paid before shipping.
4.What's your warranty?
Answer: All our products we offer on year warranty.
5.What's your MOQ?
Answer:We accept the MOQ is 1 set.
