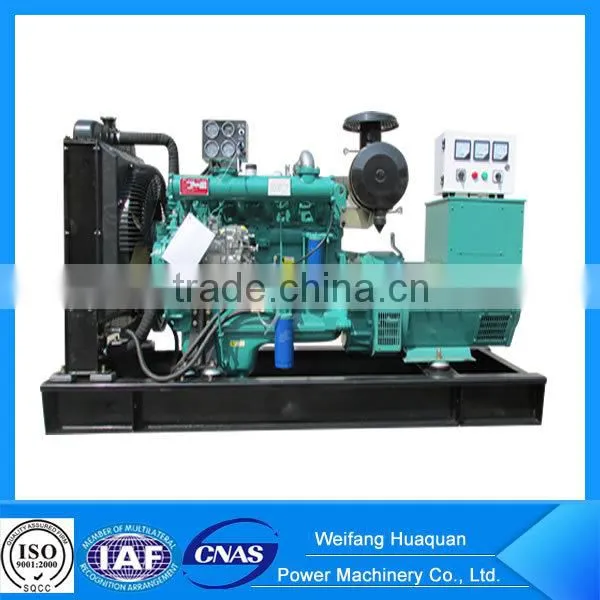

Generator Price 75kva
- 1000 Set / Sets per Month
- Qingdao China
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | Ricardo | Model Number: | HQ75GF |
Output Type: | AC Three Phase | Speed: | 1500/1800 | Frequency: | 50/60HZ |
Rated Power: | 75kva | Rated Voltage: | 240/400V | Rated Current: | 135A |
Product Description
More details about generator price 75kva
Our Features:
Weifang Huaquan Power is the professional manufacturer of generators. We specialized in producing diesel generator, Power generators, and engine generators for many years.
Our Generator Standard configurations:
1. Standard High-level quality engine Ricardo series.
2. Standard High-level quality alternator, Stanford, Brushless, 100% copper wires. Protection Grade: IP23, Insulation Class H.
3. Maintenance-free start battery.
4. Acidulated under frame.
5. Electric starting.
6. Standard control panel LCD show panel.
7. Daily fuel tank.
9. High-level shock absorber system.
10. Ripple flexes exhaust pipe, exhaust siphons, flange, Muffler.
11. Radiator
12. Exhaust silencer
13. Charger motor for battery.
14. Standard export box.
15. Manuals.
16. Tools box.
Generator Ratings
Standy Output(KVA) | Prime Output(KVA) | P.F | Phase | Wires | Size(mm) | Weight (KG) |
75 | 70 | 0.8 | 3 | 4 | 2250*720*1500 | 1700 |
Diesel Engine Data
Engine Model | R6105ZD |
Cylinder No. | 6 |
Intake Method | Natural Aspriation |
Engine Type | Inline,Direct injection,Four-stroke,water cooling |
Displacement(L) | 6.49 |
Bore*Stroke(mm) | 105*125 |
Engine Max outout(kva) | 200 |
Fuel consumption(g/kw.h) | ≤224 |
Start Method | DC24V |
Manufacture | Ricardo/Weifang |
Alternator Data
Alternator Model | STC-75 |
Alterantor Capacity | 75KW |
Voltage(V) | 110/220 230/400 |
Speed | 1500/1800 |
Excitation Method | Brush/Brushless |
Power Factor | 0.8 |
Frequency (HZ) | 50/60 |
Generator Set Data
Voltage Regulation:≥±5% Voltage Regulation, Stead State:≤±1% Sudden Voltage Warp (100% Sudden Reduce):≤+25% Sudden Voltage Warp (sudden Increase):≤-20% Voltage Stable Time (100% sudden Reduce):≤6s Voltage Stable Time (Sudden Increase):≤6s Frequency Reduce:≤5% adjustable:≤1.5% Frequency Regulation, Stead State:≤0.8% Frequency waving:≤+12% Sudden Frequency Warp (100% Sudden Reduce):≤0.8 % Sudden Frequency Warp (Sudden Increase):≤-10% Frequency Recovery Time (100% sudden Reduce):≤5s Frequency Recovery Time (Sudden Increase):≤5s
|
The Engine Features
Huaquan series Ricardo diesel generators are the complete power supply equipment, manufactured under rigorous testing with adopting world-class Ricardo engine, high-quality alternator, advanced automatic control system. Ricardo series engine are selected, featured by low emissions, noise and energy consumption and accepted by most users.
OPTIONAL
1.Mute case
2.ATS (automatic transfer switch)
3.Mobile Trailer
Production Flow
Sales Promises
Huaquan provides a full line of brand new and high quality products.Each
and every unit is strictly factory tested Warranty is according to our
standard conditions:12 months or 1000 running hour’s ,subject to the
earlier one .Service and parts are available from our factory
About Our Company
1. Offer the main Power range from 10kva~1500kva.
2. Adopt the famous engines like Weichai engines, Deutz engines, Steyr engines, Cummins engines, Perkins engines, Isuzu engines, Ricardo engines, Changchai engines, Yuchai engines, Jichai engines etc. These are widely used all over the word.
3. We only adopt standard high-level quality alternator, to produce the high-level diesel generators.
4. We offer Open-generators, Silent-Generators, Automatic-Generators and Trailer-Generators.
5. All spare parts serviced directly by our company.
6. We are confirmed as the OEM factory by many those engine factories and alternator factories.
