Help Center2014 Hot Sale !! China Supplier 50 Kilowatt Diesel Generator
Related Products
-
Good Quality 3 Phase 50kw Power GeneratorUS$ 2,000 - 3,500MOQ: 1 Set -
20kva~300kva India Cheap Generators PricesUS$ 1,500 - 13,000MOQ: 1 Set
-
2014 Hot Sale ! 20kva~300kva Used Generator With China Famous EngineUS$ 1,500 - 13,000MOQ: 1 Set
-
Made In China Lower Oil Wear and Time Longer 50kva Diesel Generators PricesUS$ 1,900 - 3,500MOQ: 1 Set
-
China Manufacturer Ricardo 30kva Home Used Diesel Silent GeneratorsUS$ 2,890 - 3,500MOQ: 1 Set
Specifications
1>50 kilowatt diesel generator2>low fuel consumption
3>Free of charge spare parts
4>Maintenance-free battery

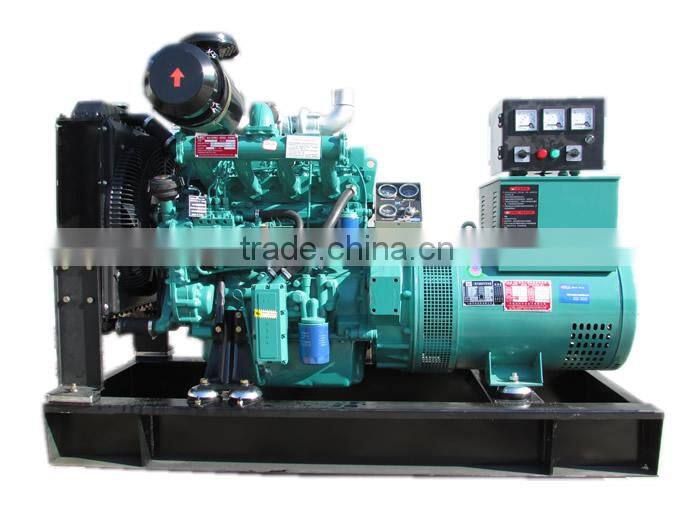

2014 hot sale !! China supplier 50 kilowatt diesel generator
| Diesel Generators Standard Configurations | |
| 1 | Standard High-level quality engine Ricardo series |
| 2 | Standard High-level quality alternator, Stanford, Brushless, 100% copper wires. Protection Grade: IP23, Insulation Class H. |
| 3 | No-maintenance start battery |
| 4 | After acidification under frame, High-level strong |
| 5 | Electric start, use key start |
| 6 | Standard control panel Spray-print or LCD show panel |
| 7 | Daily fuel tank |
| 8 | High-level shock absorber system |
| 9 | Ripple flexes exhaust pipe, exhaust siphons, flange, Muffler |
| 10 | 40°C radiator as standard |
| 11 | Exhaust silencer |
| 12 | Charger motor for battery. |
| 13 | Standard export box |
| 14 | Manuals |
| 15 | Tools box |
Genset model |
HQBL50GF |
Type |
open/sound proof/weather proof |
Genset output power range |
50KVA |
Rated voltage |
220/380V,230/400V,240/415V,120/240V |
Frequency |
50/60HZ |
Power factor |
0.8 |
Rated speed |
1500/1800rpm |
Output type |
AC three phase/single phase |
Motor |
brushless |
Frequency |
<3% |
Frequency at stable state: |
<0.5% |
Frequency deviation at instantaneous state |
≤+10% |
Frequency return time |
≤3s |
Voltage deviation at stable state |
≤±1% |
Voltage deviation at instantaneous state |
≤+20% |
Voltage return time |
≤4s |
Voltage modulation |
≤0.3% |
The specification of ricardo engine:
Model |
R4105ZD |
Cooling Method |
water cooled |
Rotating speed |
1500/1800rpm |
Governor system |
electrical or mechanical governor |
Aspiration mode |
natural aspirated or turbocharged |
Starting method |
24V DC electric starting |
Stroke |
4 stroke |
The specification of alternator:
Brand |
Stamford, Leroy semor, Maraton and chinese alternator etc. |
Regulator |
AVR automatic voltage regulating |
Excite type |
pret or shunt |
Connecting type |
3PH star, 3PH-DELTA |
Steady frequency change |
0-5% |
No load voltage |
≥95%-105 |
Steady voltage |
≤±1 |
Insulation degree |
H degree |
Exclosure degree |
IP23 |
Diesel Gengine----Ricardo
Ricardo diesel generators, adopting diesel engines as power, which are manufactured by the company introducing British Ricardo technology, bear the features of compact structure, convenient operation, stable operation, low fuel consumption, low emission and low noise. Each performance indicator has reached National standard JB/T8981-1999, also meeting international standard IEC34-1. The product is widely used in numerous industries, including highways, telecommunications, hospitals, securities companies, high-rise buildings, public security, transportation systems, television station and etc.
Features of Ricardo diesel generator sets:
1. Ricardo diesel generators have good power performance, economic and sound reliability, emission reaching Euro II standard
2. Ricardo diesel generators adopt vertical four-cylinder, six-cylinder, water-cooled, four stroke, direct injection high-speed diesel engine.
3. Ricardo diesel generators have passed IS09001 quality system certification.
Huaquan provides a full line of brand new and high quality products.Each and every unit is strictly factory tested Warranty is according to our standard conditions:12 months or 1000 running hour’s ,subject to the earlier one .Service and parts are available from our factory.
We specialized in producing diesel generator for many years. We have exported to many countries and widely used in domestic.
1. Exported countries: Nigeria, Indonesia, Malaysia, Philippine, North Korea, Ghana, Gabon, South Africa, Guinea, Russia, Iraq, Iran, Colombia, Burkina Faso, Liberia, Zambia, etc.
2. Domestic: Send to most of the cities in china, and get high praise from my clients.
1.What's your power range of Generators?
Answer: We can offer the range from 5kva~1000kva.
2.What's your delivery time?
Answer: Generally,we can delivery in 7 days after we get the deposit.
3.What's your payment?
Answer: We accept T/T ,and 30% as the deposit,the balance payment should be paid before shipping.more than $2000 can use L/C.
4.What's your warranty?
Answer: All our products we offer on year warranty.
5.What's your MOQ?
Answer:We accept the MOQ is 1 set.
