Ricardo 20kva~300kva Diesel Farm Generators Our Features:
Weifang Huaquan Power is the professional manufacturer of generators. We specialized in producing diesel generator, Power generators, and engine generators for many years.

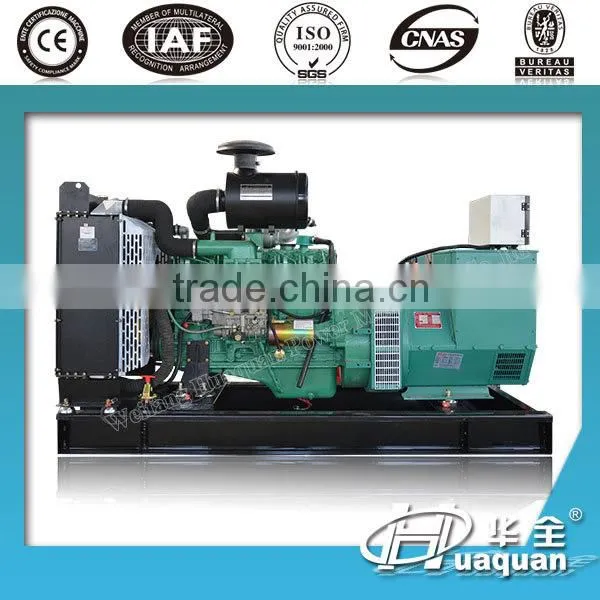

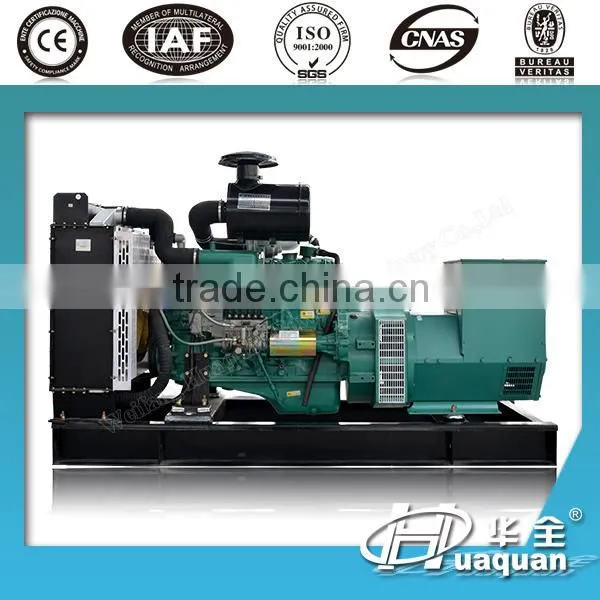

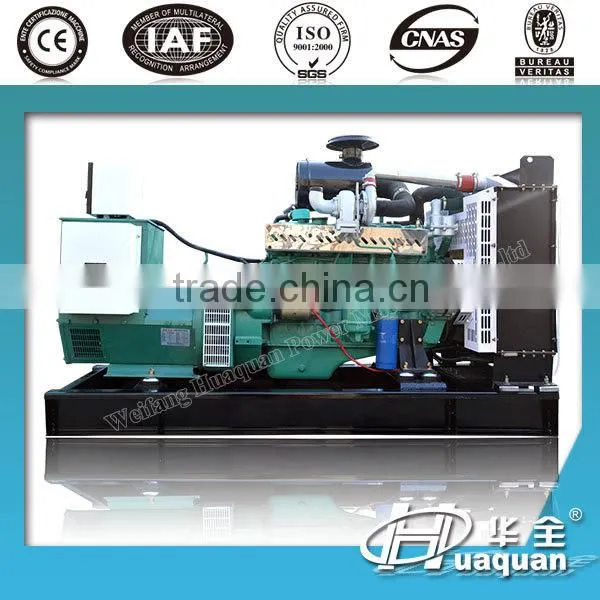

Ricardo Farm Generators Picture show
Our Generator Standard configurations:
1. Standard High-level quality engine Ricardo series.
2. Standard High-level quality alternator, Stanford, Brushless, 100% copper wires. Protection Grade: IP23, Insulation Class H.
3. No-maintenance start battery.
4. After acidification under frame, High-level strong.
5. Electric start, use key start.
6. Electric throttle.
7. Standard control panel Spray-print or LCD show panel.
8. Daily fuel tank.
9. High-level shock absorber system.
10. Ripple flexes exhaust pipe, exhaust siphons, flange, Muffler.
11. 40°C radiator as standard.
12. Exhaust silencer
13. Charger motor for battery.
14. Standard export box.
15. Manuals.
16. Tools box.
Genset model |
HQTseries |
Type |
open/sound proof/weather proof |
Genset output power range |
8kw/20kva-240kw/300kva |
Rated voltage |
220/380V,230/400V,240/415V,120/240V |
Frequency |
50/60HZ |
Power factor |
0.8 |
Rated speed |
1500/1800rpm |
output type |
AC three phase/single phase |
Motor |
brushless |
Frequency |
<3% |
Frequency at stable state: |
<0.5% |
Frequency deviation at instantaneous state |
≤+10% |
Frequency return time |
≤3s |
Voltage deviation at stable state |
≤±1% |
Voltage deviation at instantaneous state |
≤+20% |
Voltage return time |
≤4s |
Voltage modulation |
≤0.3% |
The specification of ricardo engine:
Model |
495(Z)D, R4105(Z)D, R6105(Z)(AZL)D, 6113D ,6126ZLD |
Cooling Method |
water cooled |
Rotating speed |
1500/1800rpm |
Governor system |
electrical or mechanical governor |
Aspiration mode |
natural aspirated or turbocharged |
Starting method |
12/24V DC electric starting |
Stroke |
4 stroke |
Our Products Features
The Engine Features
Huaquan series Cummins diesel generators are the complete power supply equipment, manufactured under rigorous testing with adopting world-class Cummins engine, high-quality alternator, advanced automatic control system. Cummins B, C, L, N, K series engine are selected, featured by low emissions, noise and energy consumption and accepted by most users.
Features of Cummins diesel generators:
1. High-strength alloy cast cylinder block and cylinder head, whole balance structure forged by overall distortion and fillet hardening crankshaft, provides high strength and operation in balance.
2. DC 24V electric start, charging alternator, electronic adjustment system, performance better than that specified in GB/T2820.5 and ISO8525-5.
3. Cummins diesel generators adopt the patented Cummins PT fuel system, featured by unique protection design, low pressure oil supply, super high injection pressure (100 ~ 140Mp).
4. Cummins diesel generators have good atomization and complete combustion; Cummins STC system, better combustion under high and low load, low fuel consumption and emissions, reaching EU 2 / EU 3/EPA/CARB standards.
5. Four-valve per cylinder design, direct injection; turbocharged technology, applying advanced Holset exhaust gas turbocharger; good altitude adaptability, without impairment of output power under the altitude of 1525m.
Ricardo Series Generator Details
OPTIONAL
1.Mute case
2.ATS (automatic transfer switch)

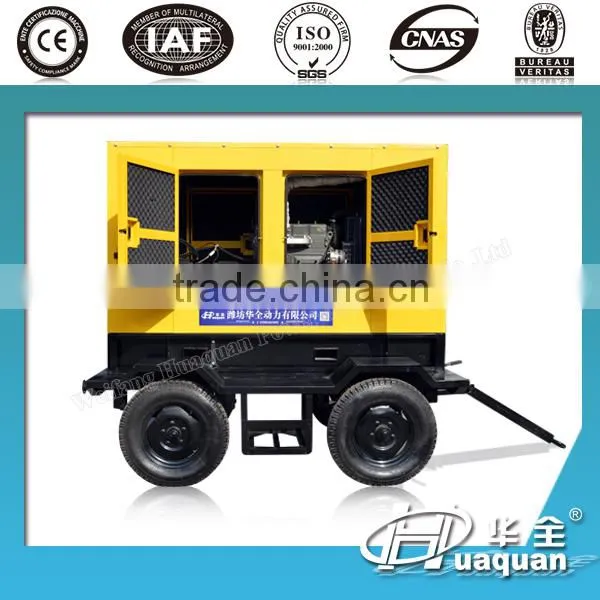

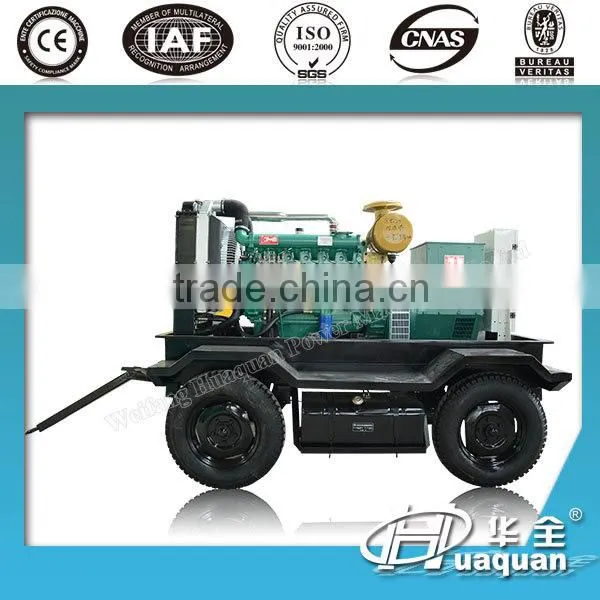

3.Mobile Trailer
Sales Promises
Huaquan provides a full line of brand new and high quality products.Each
and every unit is strictly factory tested Warranty is according to our
standard conditions:12 months or 1000 running hour’s ,subject to the
earlier one .Service and parts are available from our factory
About Our Company
1. Offer the main Power range from 10kva~1500kva.
2. Adopt the famous engines like Weichai engines, Deutz engines, Steyr engines, Cummins engines, Perkins engines, Isuzu engines, Ricardo engines, Changchai engines, Yuchai engines, Jichai engines etc. These are widely used all over the word.
3. We only adopt standard high-level quality alternator, to produce the high-level diesel generators.
4. We offer Open-generators, Silent-Generators, Automatic-Generators and Trailer-Generators.
5. All spare parts serviced directly by our company.
6. We are confirmed as the OEM factory by many those engine factories and alternator factories.
Our experience
We specialized in producing diesel generator for many years. We have exported to many countries and widely used in domestic.
- Exported countries: Nigeria, Indonesia, Malaysia, Philippine, North Korea, Ghana, Gabon, South Africa, Guinea, Russia, Iraq, Iran, Colombia, Burkina Faso, Liberia, Zambia, etc.
- Domestic: Send to most of the cities in china, and get high praise from my clients.
