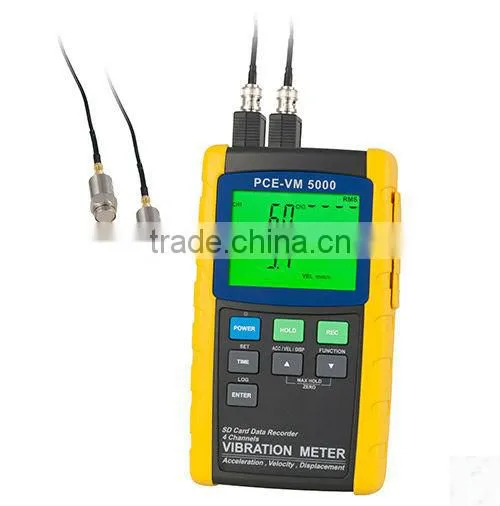

Vibration Data Logger PCE-VM 5000

Vibration Data Logger PCE-VM 5000 thumbnail-1
Vibration Data Logger PCE-VM 5000 photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Spain
Brand Name:
PCE
Model Number:
PCE-VM 5000
Contact Supplier Request Quote Chat Now
Pce Iberica S.l.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Spain
Brand Name PCE
Model Number PCE-VM 5000

Specifications

Display and storage of acceleration-, speed- and expansion measurement of vibrations

Technical Specifications

Display

82 x 61 mm ("), LCD display with background lights

Number of channels

4 input channels

Measuring types

speed, acceleration, expansion

Units

acceleration: m/s², g, ft/s²
speed: mm/s, sm/s, inches/s
expansion: mm, inches

Frequency ranges

10 Hz ... 1 KHz

Peak Value Hold

acceleration, speed: measures/ updates the peak-value
expansion: measures / updates pp value

Max. Hold

acceleration, speed: measures/ updates the max value
expansion: measures / updates max. pp value

Max. Hold-Reset

keypress activation

Zero-function

keypress activation for acceleration (rms) measurement

Datalogger scan rate

automatic: 1 ... 3600 seconds
manual: by pressing key

Memory Card

SD memory card (1 ... 16 GB)

Data Hold function

holds indicated value

Audio output

mini-stereo plug,
max. voltage: 2 V
output resistance: 100 Ohm

Operation temperature

0 ... +50 °C

Operation humidity

85 % R.H. max.

Power Supply

8 x 1.5 V AA batteries or 9 V AC adapter

Power Consumption

NiMH rechargeable battery 3 x 2700 mAh

Operation- / Charging time

standard operation: approx. 12 mA dc
without background lights and switched off data logger: approx. 35 mA dc

Weight

meter: 515 g
sensor with cable and magnet foot: 99 g

Dimensions

main device: 203 x 76 x 38 mm
sensor: 16 x 37 mm caliber
cable length: 1.2 m

Electrical Specifications

Function

Unit

Range

Accuracy

Acceleration

m/s²

0.5 ... 199.9 m/s²

± (5 % rdg + 5 d)


g

0.05 ... 20.39 G

@ 80 und 160 Hz


ft/s²

2 ... 656 ft/s²




calibration point: 50 m/s² (160 Hz)

Speed

mm/s

0.5 ... 199.9 mm/s

± (5 % rdg + 5 d)


cm/s

0.05 ... 19.99 cm/s

@ 80 und 160 Hz


inch/s

0.02 ... 7.87 inch/s




calibration point: 50 mm/s (160 Hz)

Expansion

mm

1.999 mm

± (5 % rdg + 5 d)


inch

0.078 inch

@ 80 und 160 Hz


calibration point: 0.141 mm (160 Hz)
