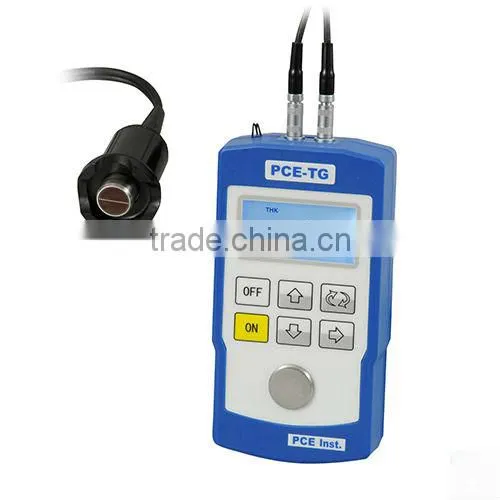

PCE-TG100 Material Thickness Gauge

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Spain

Brand Name:

PCE

Model Number:

PCE-TG100

Pce Iberica S.l.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Spain

Brand Name PCE

Model Number PCE-TG100

Specifications

Material thickness gauge for materials such as metals, glass and homogeneous plastics (with sound velocity adjustment)

Technical specifications
Measurement range	0.8 mm ... 225.0 mm
Measurement range for steel pipes	minimum thickness of 3 mm x 20 mm diameter
Materials	iron, steel, plastic, glass, gold and other homogeneous materials
Frequency	standard 5 MHz, probe diameter 11 mm
Resolution	0.1 mm
Calibration	integrated 3.0 mm steel plate
Accuracy	±0.1 mm
Sound velocity range	500 to 9,999 m/s (freely adjustable, depending on the material that is measured)
Sound velocity resolution	1 m/s
Display	4 digit LCD
Probe surface temperature	standard -10 ... 50 °C (with special probe up to 400° C)
Operating conditions	0 ... 40 °C; 20 ... 90 % r.h.
Battery indicator	low battery warning
Power	2 AA batteries
Operating time	250 hours
Auto shut-off	to save battery power (after 3 minutes of inactivity)
Dimensions	124 x 67 x 30 mm
Weight	240 g including batteries
