75kw Ricardo Diesel Generator

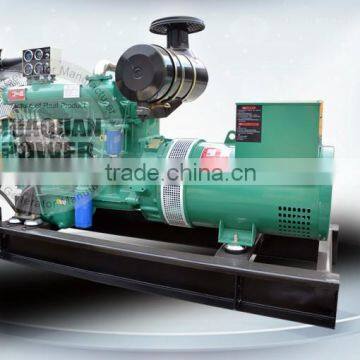

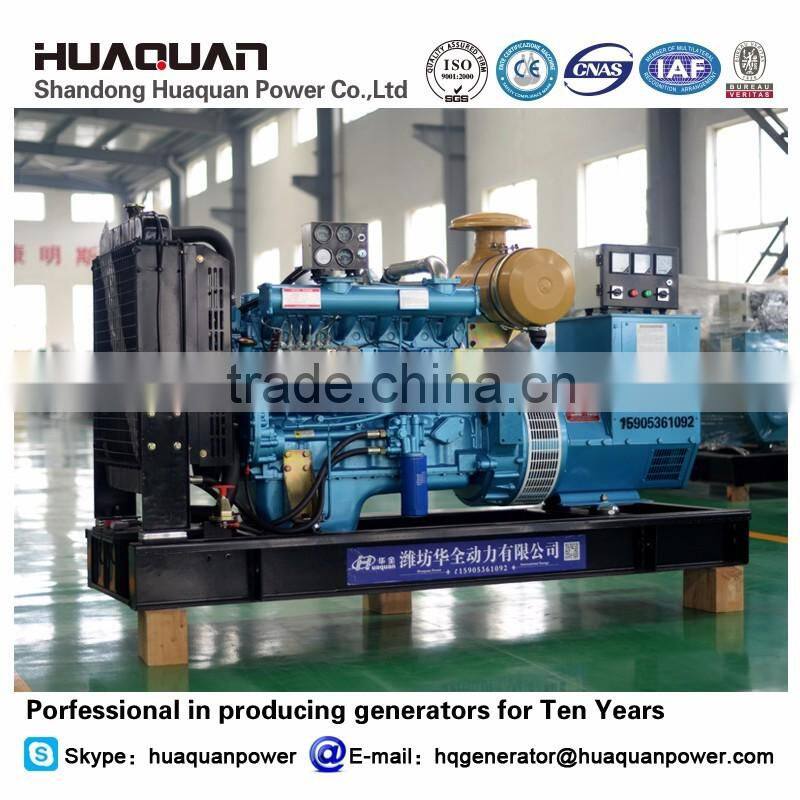

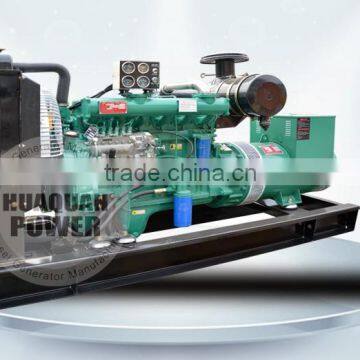

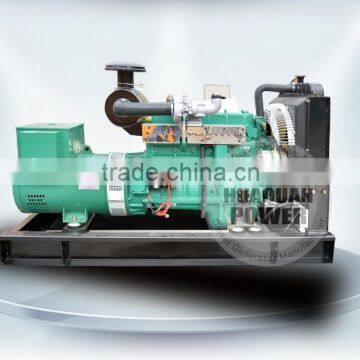

The picture of our diesel generator
Weifang(Ricardo) Diesel Generator Set Features:
1. Diesel generator adopt the Weifang original weifang engine(Ricardo engine), as the main power support.
Engine charactors: Injection, Inline.Four stroke,water-cooled(Mid-water cooled)
2. Engine adopt UK Ricardo company technology produced by weifang diesel engine company ,in China.
3. Adopt Weichai Power company special diesel fuel pump, cylinder head,piston and filers, and get the same quality as the same as Weichai original engine.
4. Alternator, adopt option brand like China brush alternator, Stamford, Faraday, Marathon,Leroy-somer, Lanzhou,etc so famous brands alternators.
5.This series diesel generator is the special type we promotion for abroad market, and make the highly quality level than other configurations.
6.Diesel generator including abersorber system,and protect the generator during its working time.
7.All generator surface after acidification , and suitalbe wet condtion working .
8.Standard control panel design basic the operation,and easy show all meters you care during generator working time.
9.Structure: adopt the high strong steel make the under frame, and easy moved and stable long life.
10.We offer options generators as the below shows:
A.Frequency we offer 50HZ and 60HZ.
B.Voltage: we offer 110/220v, 240v,380v/440v,254v/440 etc,or depend on your request.
C.Phase: we offer three phase or single phase generator
D.Options parts like: Electric speed adjustment, LCD show panel,protection system,Automatic transfer system. Silent canopy, Weatherproof canopy,Fuel tank.
the data of our diesel generator
| 75KW DIESEL GENERATOR DETAILS | |||
| Model | HQR75GF | Start Method | DC 24 |
| Generator Prime Power(KW/KVA) | 75/94 | Output Current(A) | 162 |
| Standby Power(KW/KVA) | 83/103 | Voltage(V) | 400/230 |
| Power Factor | 0.8 | Phase | Three phase, Four Wires |
| Frequency(Hz) | 50 | Weight(kg) | 1800 |
| Size(mm) | L | W | G |
| 2250 | 720 | 1600 | |
| Diesel Engine Data | |||
| Manufacturer | Ricardo Engine | Model | R6105ZD |
| Rated Speed(Rpm) | 1500 | Diesel Engine Max Power(KW/H) | 84 |
| Cylinder No. | 6 | Arrangement Type | In-line |
| Bore×Stroke(mm) | 105×125 | Displacement(L) | 6.49 |
| Intake Method | Turbocharged | Compression ratio | 16.0:1 |
| Fuel | Diesel Fuel | Full Load Consumption(g/kw.h) | ≤228 |
| Oil Capacity(L) | 13 | Start Method | Electrical |
| Engine Cooled Method | Radiator Max 40℃,fans are driven by belt with safety guard. | ||
| Alternator Data | |||
| Manufacturer | China Stanford | Model | XN75 |
| Rated Power(KW/KVA) | 75/94 | Excitation Type | Brushless |
| Insulation Class | H | Protection Grade | IP22 |
| Unload Voltage Adjustment | ≥±5% | Stable Voltage Adjustment | ±1% |
| Efficiency (%) | 94.8 | Voltage Control Method | AVR |
the detials and advantagesof it
Sales Promises
Huaquan provides a full line of brand new and high quality products.Each
and every unit is strictly factory tested Warranty is according to our
standard conditions:12 months or 1000 running hour’s ,subject to the
earlier one .Service and parts are available from our factory

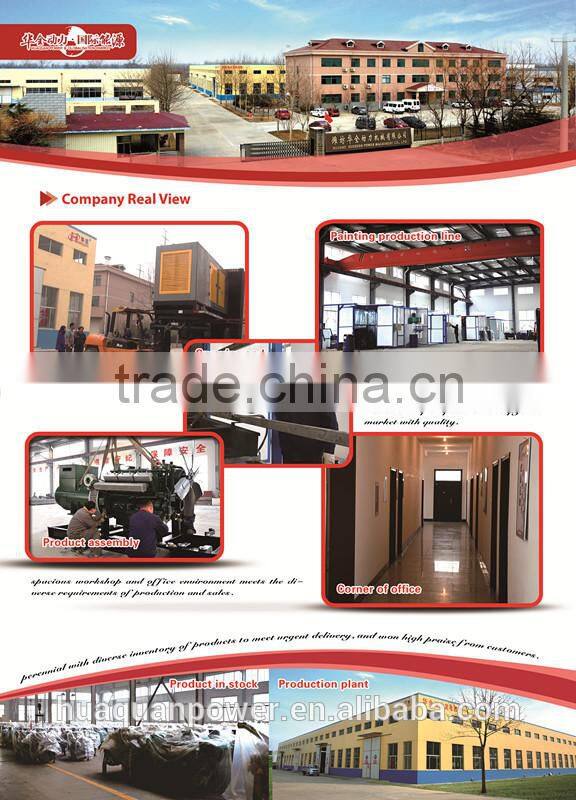

About Our Company
1. Offer the main Power range from 10kva~1500kva.
2. Adopt the famous engines like Weichai engines, Deutz engines, Steyr engines, Cummins engines, Perkins engines, Isuzu engines, Ricardo engines, Changchai engines, Yuchai engines, Jichai engines etc. These are widely used all over the word.
3. We only adopt standard high-level quality alternator, to produce the high-level diesel generators.
4. We offer Open-generators, Silent-Generators, Automatic-Generators and Trailer-Generators.
5. All spare parts serviced directly by our company.
6. We are confirmed as the OEM factory by many those engine factories and alternator factories.
Our experience
We specialized in producing diesel generator for many years. We have exported to many countries and widely used in domestic.
Exported countries: Nigeria, Indonesia, Malaysia, Philippine, North Korea, Ghana, Gabon, South Africa, Guinea, Russia, Iraq, Iran, Colombia, Burkina Faso, Liberia, Zambia, etc.
Domestic: Send to most of the cities in china, and get high praise from my clients
