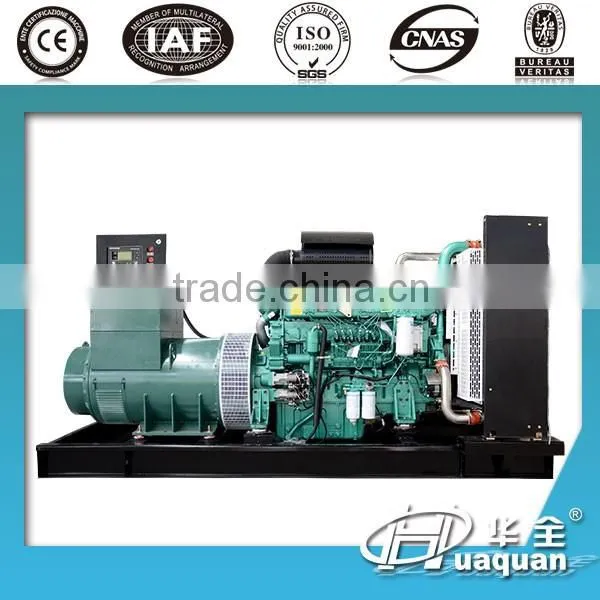

700kva diesel generator set 700kw with Yuchai engine
- 400 Set / Sets per Month
- Qingdao
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | Huaquan | Model Number: | HQY700GF |
Output Type: | AC Three Phase | Speed: | 1500/1800 | Frequency: | 50HZ/60HZ |
Rated Power: | 700kva | Rated Voltage: | 110/220 220/380 254/440 | Rated Current: | 936A |
Product Description
Weifang Huaquan Power is the professional manufacturer of generators. We specialized in producing diesel generator, Power generators, and engine generators.
700kva diesel generator set 700kw with Yuchai engine :
Our Generator Standard configurations:
1. Standard High-level quality engine Yuchai series.
2. Standard High-level quality alternator, Stanford, Brushless, 100% copper wires. Protection Grade: IP23, Insulation Class H.
3. No-maintenance start battery.
4. After acidification under frame, High-level strong.
5. Electric start, use key start.
6. Electric throttle.
7. Standard control panel Spray-print or LCD show panel.
8. Daily fuel tank.
9. High-level shock absorber system.
10. Ripple flexes exhaust pipe, exhaust siphons, flange, Muffler.
11. 40°C radiator as standard.
12. Exhaust silencer
13. Charger motor for battery.
14. Standard export box.
15. Manuals.
16. Tools box.
Generator Ratings
Prime Output(kva) | Standby Output(kva) | P.F | Phase | Wires | Size(mm) | Weight (KG) |
700 | 770 | 0.8 | 3 | 4 | 3400×1390×1780 | 3650 |
Diesel Engine Data
Engine Model | YC6TD840L-D20 |
Cylinder No. | 6 |
Intake Method | Natural Aspiration |
Engine Type | Inline,Direct injection,Four-stroke,water cooling |
Bore*Stroke(mm) | 145*165 |
Fuel consumption(g/kw.h) | ≤208 |
Start Method | DC24V |
Manufacture | Yuchai |
Alternator Data
Alternator Brand | STANFORD |
Alterantor Capacity | 700kva |
Voltage(V) | 110/220 230/400 |
Speed | 1500/1800 |
Excitation Method | Brushless |
Power Factor | 0.8 |
Frequency (HZ) | 50/60 |
OPTIONAL
1.Mute case
2.ATS (automatic transfer switch)
3.Mobile Trailer
Sales Promises
Huaquan provides a full line of brand new and high quality products.Each and every unit is strictly factory tested Warranty is according to our standard conditions:12 months or 1000 running hour’s ,subject to the earlier one .Service and parts are available from our factory.
About Our Company
1. Offer the main Power range from 10kva~1500kva.
2. Adopt the famous engines like Weichai engines, Deutz engines, Steyr engines, Cummins engines, Perkins engines, Isuzu engines, Ricardo engines, Changchai engines, Yuchai engines, Jichai engines etc. These are widely used all over the word.
3. We only adopt standard high-level quality alternator, to produce the high-level diesel generators.
4. We offer Open-generators, Silent-Generators, Automatic-Generators and Trailer-Generators.
5. All spare parts serviced directly by our company.
6. We are confirmed as the OEM factory by many those engine factories and alternator factories.
Our experience
We specialized in producing diesel generators. We have exported to many countries and widely used in domestic.
Exported countries: Nigeria, Indonesia, Malaysia, Philippine, North Korea, Ghana, Gabon, South Africa, Guinea, Russia, Iraq, Iran, Colombia, Burkina Faso, Liberia, Zambia, etc.Domestic: Send to most of the cities in china, and get high praise from OUR clients.
