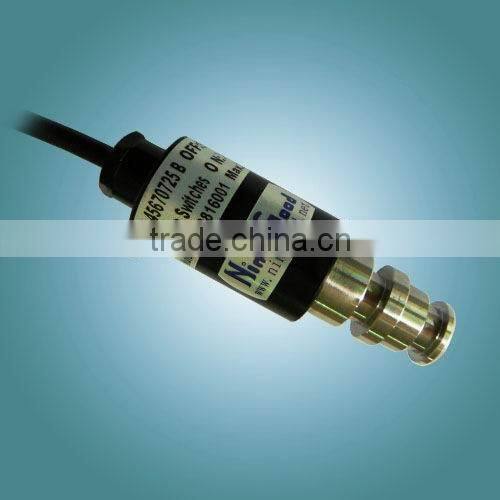

water oil differential pressure switch

Specifications

water oil differential pressure switch
Suitable for Air pressure
Water pressure
Vacuum Corrosive fluids.
easy installation

water oil differential pressure switch

Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:



1, Switching type : SPST NC or SPST NO (Selectable),

    Switch frequency & Response time: 60 Cycle /min, ≤100ms.

2, Pressure fitting:  KJ10  Quick connect coupling..

3, Electrical connection:  227 IEC 52, 2X0.75mm², Lead wire.

4, Voltage: 5-110VDC, 5-250VAC;

    Resistance load : 0.1-6A,  Inductive load : 0.1-3A.

5, Fluid media: Air pressure & Water pressure & Vacuum & Oil & Corrosive fluids,etc.

6, Work Life: ≥100,000 Cycle.

7, Protection class : IP65.

8, Ambient temperature: -20°C~55°C, Medium temperature: -40°C~80°C.

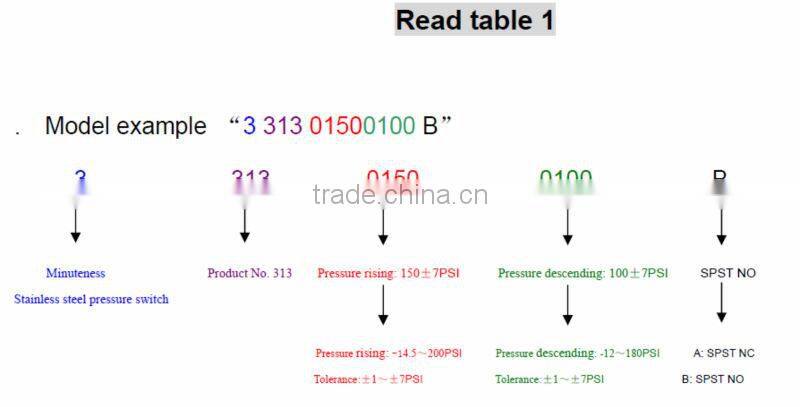

9, Model: (Read table 1).

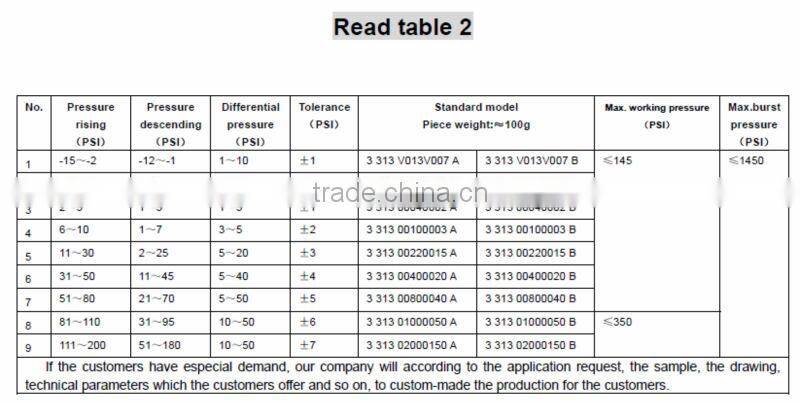

10,Working pressure: Vacuum -14.5PSI to +200PSI (Selectable,   Read table 2)



After-sales service:

          We promise to carry out the following after-sales service:

       Warranty: The warranty period is 12 months starting from the shipping date.

The rate of Production Quality Problem is lower to 100PPM, replace the bad for free



Certificate:



Production Drawing:

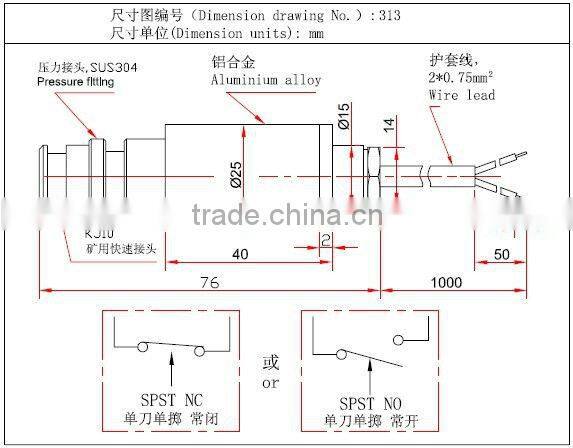

Dimension Drawing:
