Specifications
automatic pressure control switch for water pumpcorrosive proof
easy installation
high quality
Protection class: IP65
automatic pressure control switch for water pump
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPDT NC+NO , Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: G1/4"-19BSP, Thread (Male ).
3, Electrical connection: DIN 43650 Linker .
4, Voltage: 5-110VDC, 5-250VAC;
Resistance load : 0.1A to 6A,
Inductive load : 0.1A to 3A.
5, Fluid media: Air pressure & Water pressure & Vacuum & Oil & Corrosive fluids,etc.
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP65.
8, Ambient temperature: -40°C~85°C,
Medium temperature: -40°C~120°C.

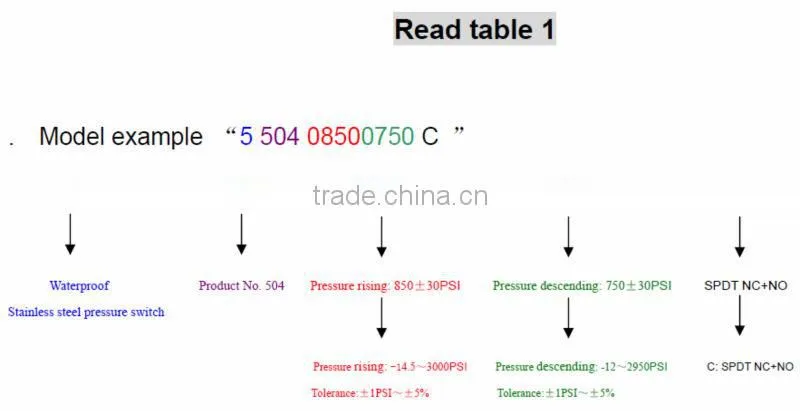

9, Model: (Read table 1).
10,Working pressure: Vacuum -14.5PSI to +3000PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.
Certificate:
Production Photo:

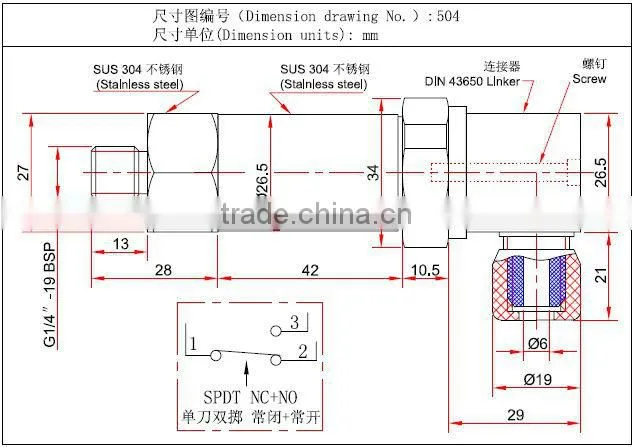

Dimension Drawing:
