High water pressure switch,pressure switch
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPDT NC or NO (Selectable),
Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: G1/2"-14BSP Thread (Male ).
3, Electrical connection: H03VV-F 3X0.5mm2 , Lead wire.
4, Voltage: 5-110VDC, 5-250VAC;
Resistance load : 0.1A to 6A,
Inductive load : 0.1A to 3A.
5, Fluid media: Air,Water, Vacuum,etc.
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP65.
8, Ambient temperature: -20°C~55°C,
Medium temperature: 0°C~80°C.

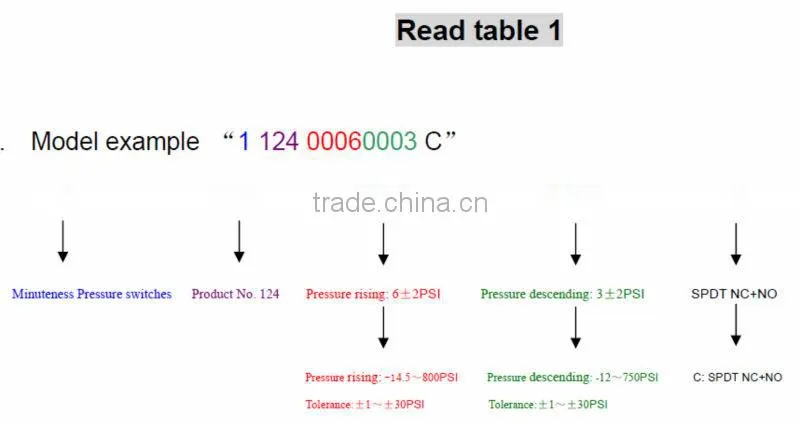

9, Model: (Read table 1).
10,Working pressure: Vacuum -14.5PSI to +800PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.
Certificate:
Production Photo:

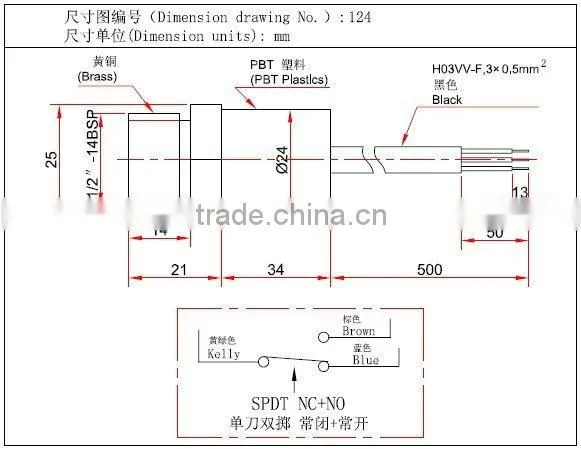

Dimension Drawing:
